Description

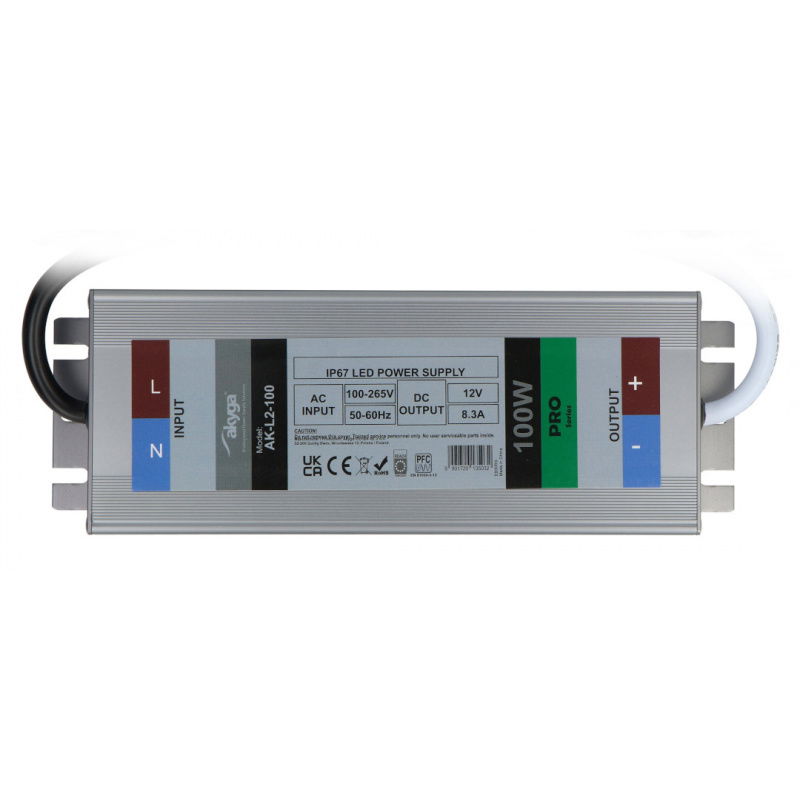

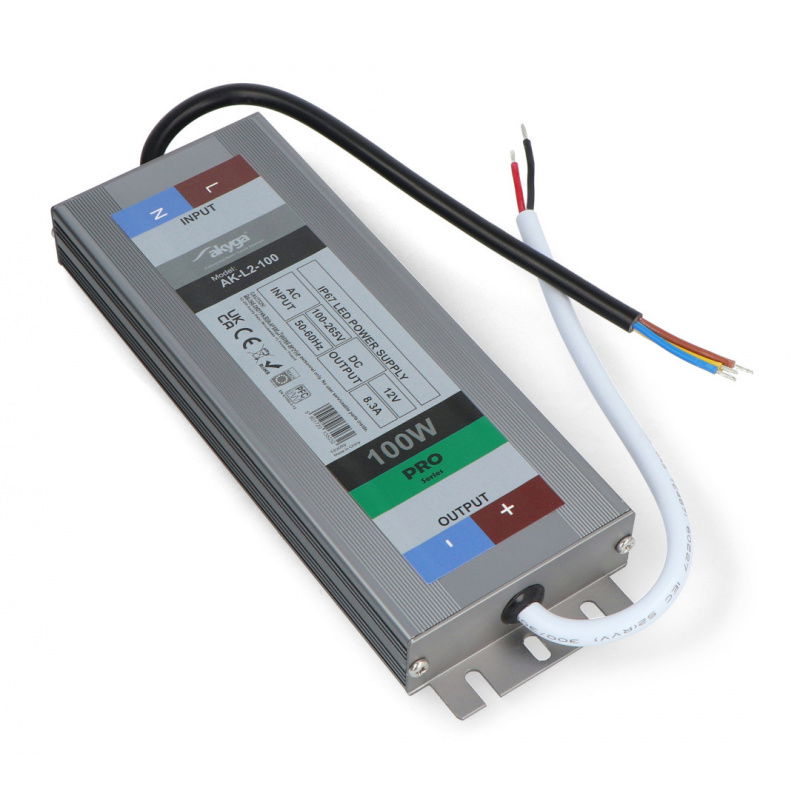

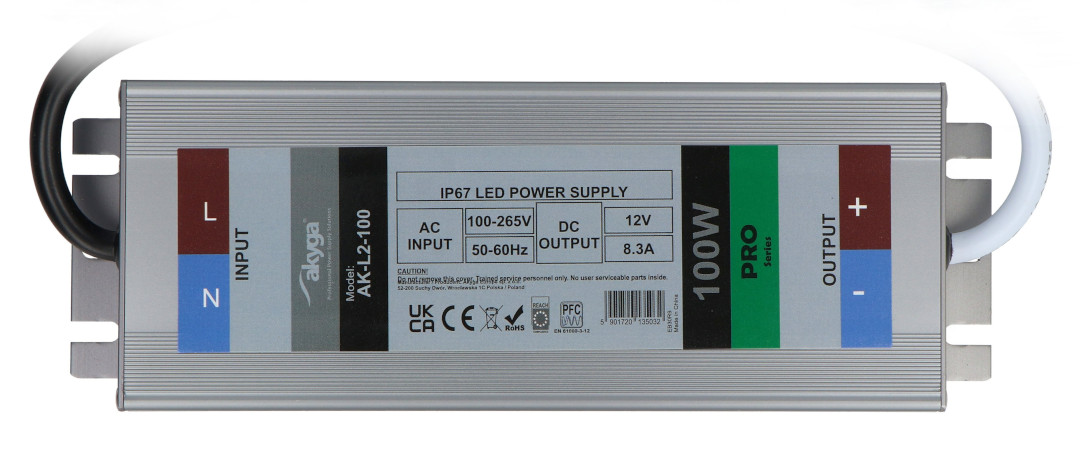

100 W power supply designed to supply lighting based on LED technology, e.g. tapes, lights, panels, RGB controllers and the other devices with DC of 12 V. Thanks to the IP67 protection you can use it both outside and inside the building. The maximum current efficiency is 8.3 A, which for example allows you to power a 20 m LED strip with a consumption of 4.8 W / m. In addition to supplying LED lighting, the power supply can be successfully used for industrial automation systems, machine control, etc.
The correct power supply for LED strip is selected by multiplying the length of the string, expressed in meters, with the power of the strip. To achieve reliable operation it is better to choose a power supply with a stock of at least 10% of the capacity.
Specification
- Supply voltage: 100 V AC to 265 V AC
- Efficiency: 80 %
- Output current: 8,3 A
- Maximum power: 100 W
- Output voltage: 12 V
- Connectors: free wires by removing the insulation
- Delay time: 50 MS
- The start time and rise time: 1000ms, 30ms
- Mechanical timer: No
- Tightness class: IP67
- Protection: OVP, OCP, OPP, OTP, SCP
- The ferrite filter: Yes
- Operating temperature: 5 °to 50 ° C
- Storage temperature: -40 to +80 °C
- Compatibility: CET, RoHS, REACH
- Dimensions: 196 x 70 x 43 mm
- Weight: 946 g
