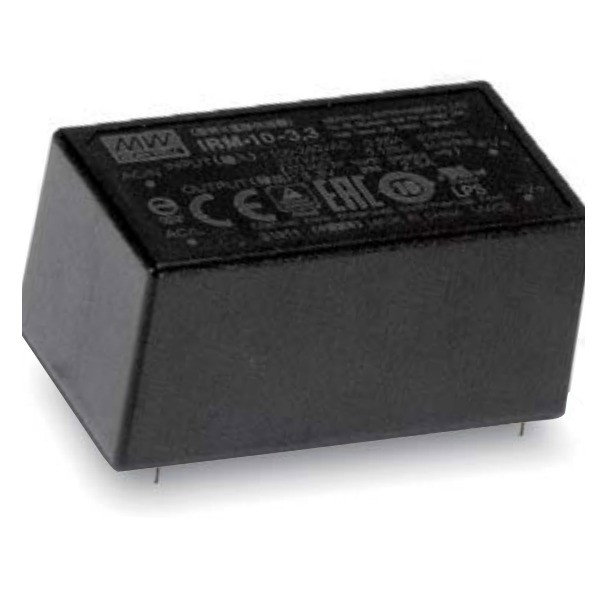

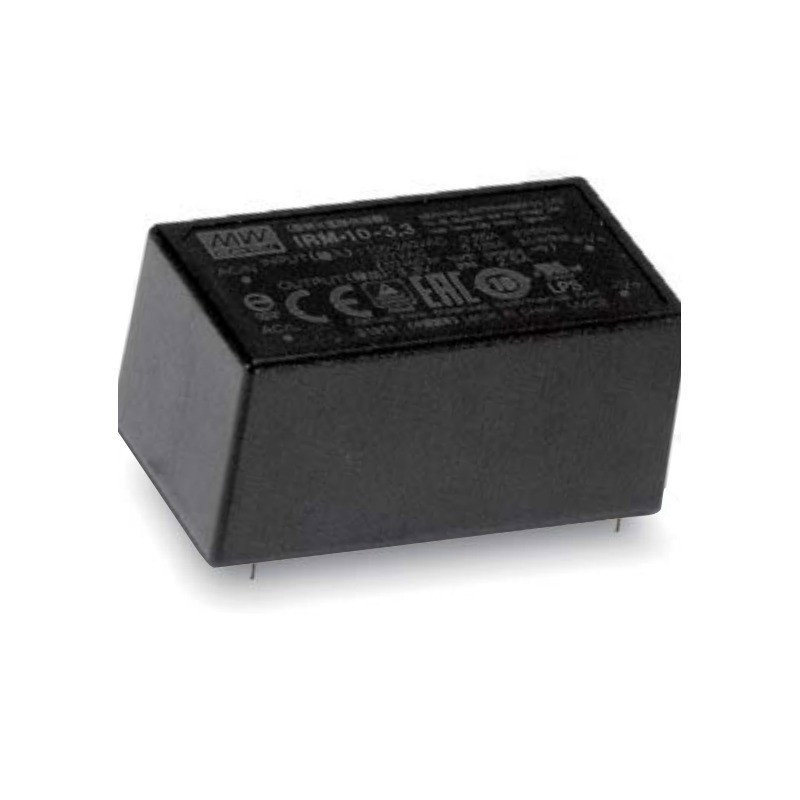

Mean Well IRM-10-5 PCB-mount power supply - 5V / 2A / 10W
5 V and 10 W in a PCB-mount module: Mean Well IRM-10-5 power supply soldered to the board.
- 85-305 V AC input, current up to 2 A
- Silicone-potted module, insulation class II
- Operation from -30 °C to +85 °C
We could not load the price.
The promotional price does not combine with quantity discounts.
10 W PCB-mount module for 5 V electronics
Mean Well IRM-10-5 is an AC-DC power supply for PCB mounting that delivers 5 V at up to 2 A from a mains voltage of 85 V to 305 V AC. 10 W is enough for devices with a microcontroller, a communication module, a display or 5 V relays.
Despite twice the power, the module has the same dimensions as the 5 W version: 45.7 x 25.4 x 21.5 mm. It is silicone-potted, has insulation class II and a typical efficiency of 77%, and draws less than 0.1 W with no load.
Mean Well IRM-10-5 power supply PCB-mount type
5 V / 2 A
rated power 10 W
77%
typical efficiency
45.7 x 25.4 x 21.5 mm
module dimensions
-30 °C to +85 °C
operating temperature
A good choice for you?
A good choice if:
- your 5 V electronics draw up to 2 A
- you are designing a mains-powered device with an on-board power supply
- you need operation over a wide temperature range
Consider another option if:
- you prefer a power supply in a case with terminals: see Mean Well RS-25-5 power supply (5 V, 5 A)
- you are installing in a distribution board: choose Mean Well MDR-10-5 power supply for DIN rail
Technical specifications
| Parameter | Value |
|---|---|
| Type | AC-DC power supply for PCB mounting (potted module) |
| Output voltage | 5 V DC |
| Output current | 0-2 A |
| Rated power | 10 W |
| Ripple and noise | max. 200 mVp-p |
| Input voltage | 85-305 V AC or 120-430 V DC |
| Efficiency | typically 77% |
| No-load power consumption | below 0.1 W |
| Protections | overload (115%-190% of power), short-circuit, overvoltage (5.75-6.75 V) |
| Insulation class | II, limited power source (LPS) |
| Emissions | class B without additional components |
| Operating temperature | -30 °C to +85 °C (power derating above 50 °C) |
| Case | 94V-0 plastic, silicone-potted |
| Soldering | wave soldering up to 265 °C for 5 s, hand soldering up to 390 °C for 3 s |
| Pins | PCB pins: AC/L, AC/N, -V, +V (1 mm diameter) |
| Dimensions | 45.7 x 25.4 x 21.5 mm |
| Weight | 33 g |
| Manufacturer's warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Low interference emissions without an additional filter
The IRM-10 series has a built-in interference filter, so according to the manufacturer it meets the EN 55032 class B standard without additional components on the board.
Source: Mean Well: IRM-10 datasheet
Frequently asked questions
Does the module have voltage adjustment?
No. The IRM-10-5 provides a fixed 5 V. Other voltages are available in separate versions of the series, e.g. 3.3 V, 12 V, 15 V and 24 V.
How much heat does the module give off?
At full load and 77% efficiency, the module gives off about 3 W as heat, so leave some free space around it on the board.
Does the module require grounding?
No. It has insulation class II and no ground pin. You connect only L, N, +V and -V.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| Nominal power | 10 W |
| Current | 2 A |
| Power supply - type | mounting |
| Power supply - Plug | pin |
| Width | 6 cm |
| Height | 7 cm |
| Depth | 2.8 cm |
| Weight | 0.031 kg |
