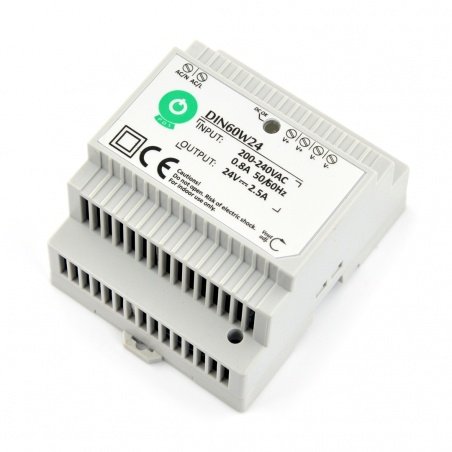

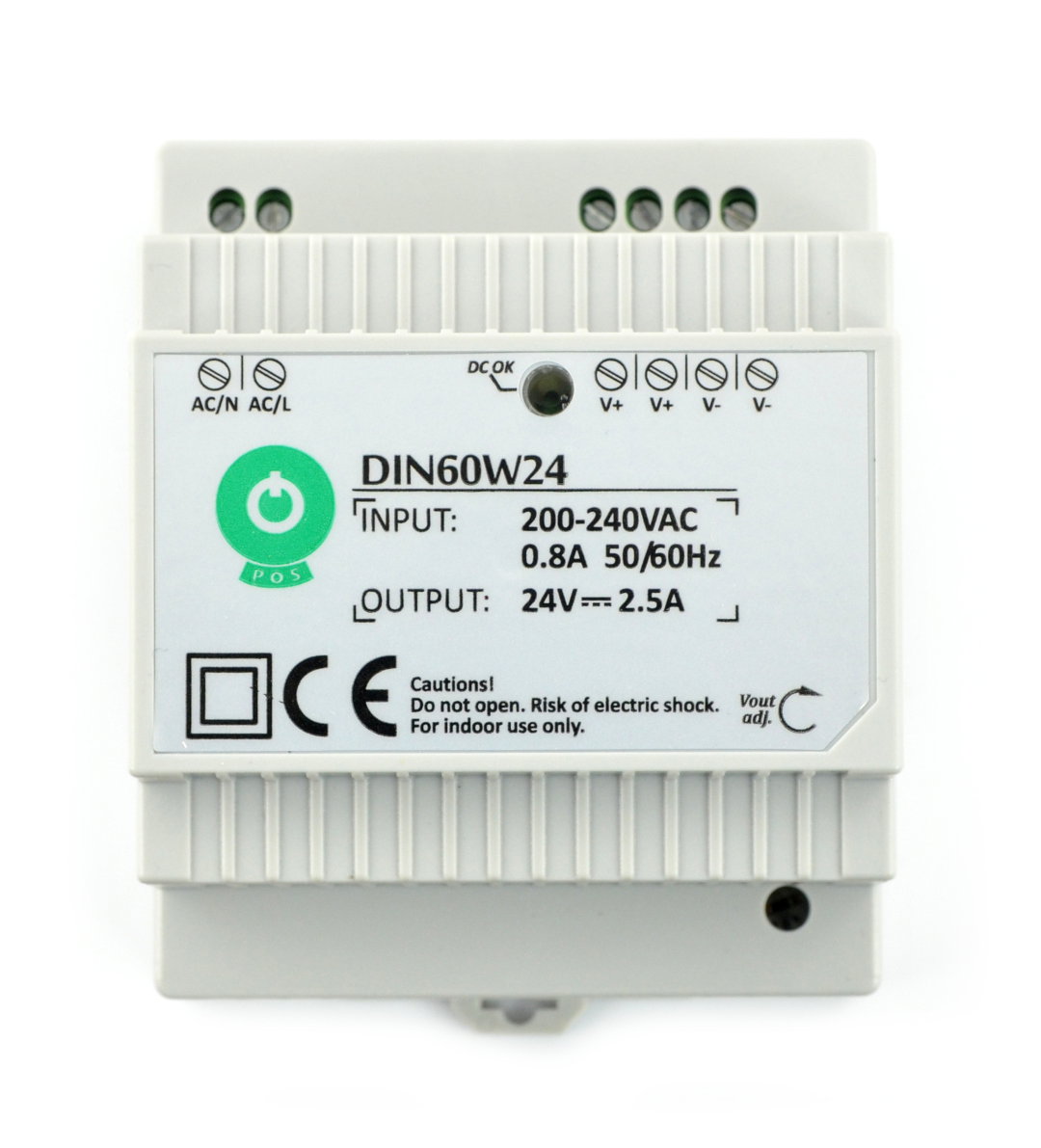

Product description: DIN60W24 DIN rail mounted power supply - 24 V / 2,5 A / 60 W
DIN rail mounted power supply unit. The input voltage of the power supply is 200 V to 240 V AC and the output voltage is 24 V. Output current up to 2.5 A. See the documentation for details.
Specifications of the DIN60W24 Power Supply
- Supply voltage:
- AC 200 V to 240 V
- Type: impulse
- Output voltage: 24 V DC
- Output current: 2.55 A
- Power: 60 W
- DIN rail mounted
- Connections in the form of screw joints
- Signalling the correct output voltage: DC OK LED
- Dimensions: 93 x 78 x 56 mm
- Weight: 280 g
DIN60W24 DIN rail mounted power supply - 24 V / 2.5 A / 60 W.
DIN60W24 DIN rail power supply - 24 V / 2.5 A / 60 W
High reliability and multiple safety features are required of industrial power supplies. Therefore, our DIN60W24 DIN rail power supply - 24 V / 2,5 A / 60 W has a number of built-in protective functions, including short circuit, overload, over voltage and thermal protection.
What is important, its well-thought-out design allows for fanless cooling - a free flow of air is sufficient. The device has a light switch-on indicator and can operate with an output voltage adjustable (via a built-in potentiometer) within the range from 22 to 28.5V. The noise and ripple level is maintained at 360 mVpp.
Applications of DIN rail mounted power supplies
Power supplies intended for DIN rail mounting are dedicated primarily for industrial applications - because it is in factory control cabinets that TS35 rails are the perfect way to mount PLCs, I/O modules, converters or contactors. The 24v dc power supply we offer is perfect for such applications.
Another common application for DIN rail power supplies are all kinds of building automation systems, HVAC controllers and related installations, mounted in switchgears equipped with TS35 rails. The possibility of easy expansion and servicing of modular systems makes it worth considering this form of installation also in... home workshops.
