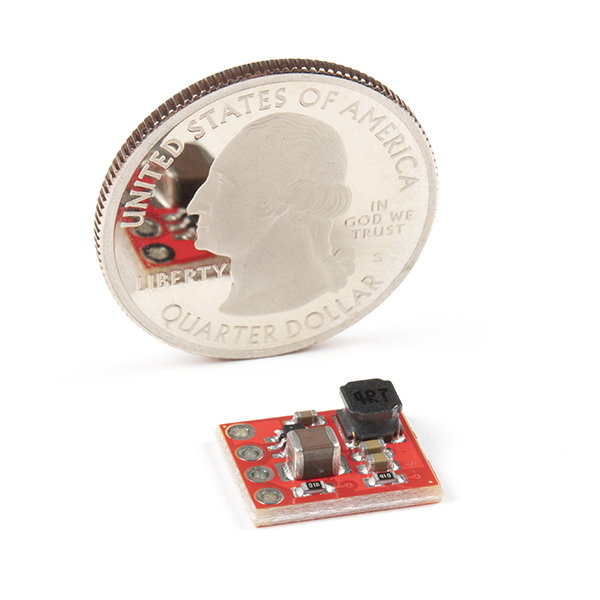

AP63203 - step-down BabyBuck voltage regulator - 3,3V 2A - SparkFun COM-18357
Step-down converter, made by SparkFun. The AP63203 voltage regulator changes the input voltage from 3.8 V to 32 V to the output: 3,3 V. The current capacity of the converter is 2 A . The module has a fully integrated 125 mΩ MOSFET on the high side and a 68 mΩ MOSFET on the low side, providing highly efficient DC-DC conversion. All components are placed on a low profile board and enclosed in a TSOT26 package.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: AP63203 - BabyBuck step-down converter - 3.3V 2A - SparkFun COM-18357
A voltage regulator in the form of a step-down converter, made by SparkFun. The AP63203 converter is designed to change the input voltage from 3.8 V to 32 V to the output: 3,3 V. Its current capability is 2 A with a fully integrated 125 mΩ MOSFET on the high side and a 68 mΩ MOSFET on the low side, providing highly efficient DC-DC conversion. All components are housed on a low profile board and enclosed in a TSOT26 enclosure. Voltage input / output can be provided via holes with marked leads, where you can solder e.g. goldpin pins.
Other step-down converters, as well as step-up and step-up / step-down converters are also available in our shop's assortment.
Botland is an official distributor of modules and accessories from SparkFun Electronics. This well known American maker provides a complete base for electronics projects. Our range holds original SparkFun Electronics products only.

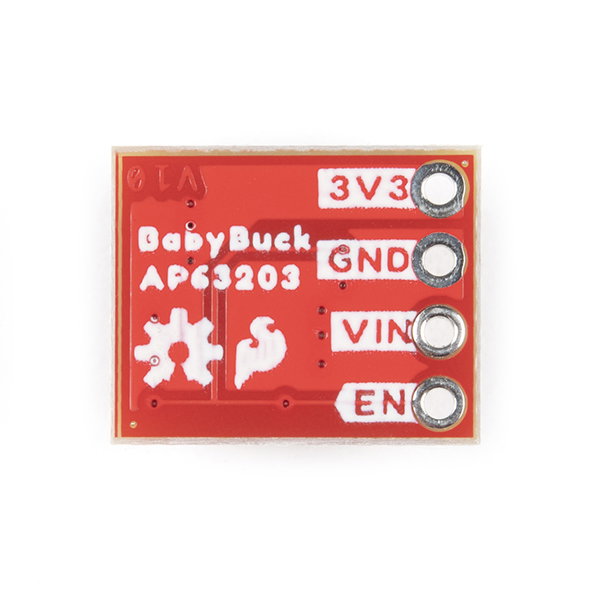

Leads of the AP63203 step-down converter.
Leads of the AP63203 step-down converter
The AP63203 step-down converter module has pins in the form of solder holes:
- 3V3 - output voltage 3,3 V
- GND - system ground
- VIN - input voltage from 3.8 V to 32 V
- EN - enable
The AP63203 version with screw connector is also available.
Specification of the AP63203 step-down converter
- Input voltage: from 3.8 V to 32 V
- Output voltage: 3,3 V
- Continuous output current: 2 A
- Reference voltage: 0.8 V ± 1%
- Resting current: 22 µA
- Switching frequency: 1.1 MHz
- Supports pulse frequency modulation (PFM):
- efficiency up to 80% at a light load of 1 mA
- Efficiency up to 88% with 5 mA load
- Patented design provides superior EMI reduction
- Frequency spread spectrum (FSS) for EMI reduction
- Protections:
- against over voltage
- Current
- Thermal shutdown
Step-down converter 3.3 V 2 A.
Useful links
| Name | Value |
|---|---|
| Voltage to | 3.8 V |
| Voltage from | 32.0 V |
| Voltage output from | 3.3 V |
| Output voltage to | 3.3 V |
| Nominal output voltage | 3.3 V |
| Current | 2 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Width | 1.3 cm |
| Height | 0.1 cm |
| Depth | 1 cm |
| Weight | 0.001 kg |
