Product description: SenseCAP S2120 8in1 - LoRaWAN weather station - Seeedstudio 101990961
SenseCAP S2120 from Seeedstudio is a weather station that collects and transmits data on air temperature, humidity, wind speed and direction, precipitation, light, UV index and pressure . For this, it uses the LoRaWAN and Bluetooth long-range protocol. The station will be used in agriculture, meteorology, urban environment monitoring, as well as in private gardens. It is resistant to high UV radiation, heavy rain or dusting. Thanks to very low power consumption and reliable performance, SenseCAP S2120 does not generate high costs. It is powered by a solar panel and 3 AA batteries , which can last up to 2 years. The set also includes an external slot for 6 additional batteries that will allow the station to operate longer.

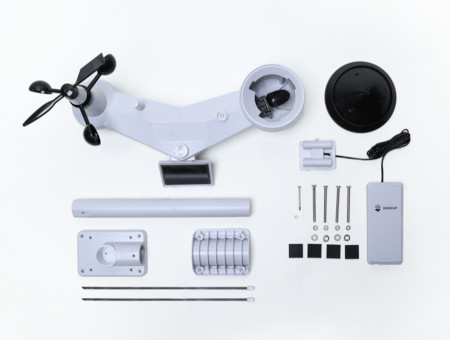

Set of components for station assembly.

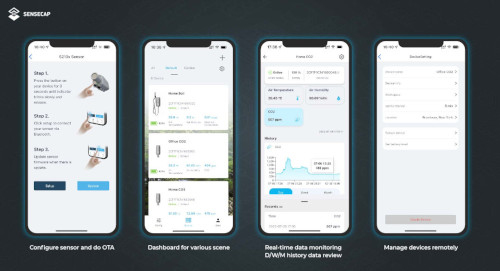

With the SenseCAP Mate app, you can monitor station measurements from anywhere in the world.
Simple setup
Built-in Bluetooth avoids time-consuming set-up, making it easy for those with little or no technical knowledge to start observing the environment. With a few clicks, configure the device with your smartphone and remotely monitor and manage the collected data. Download the free SenseCAP Mate app or use the SenseCAP portal and stay up to date with the weather, even on the other side of the world!
You can download the free SenseCAP Mate app for both iOS and Android devices .
SenseCAP S2120 application
SenseCAP S2120 is a device with wide possibilities. Examples of station applications:
- Garden - monitor weather conditions and take care of your family
- Smart farming - obtaining climate data will allow farmers to better manage the crop
- Meteorology - monitoring changes in weather conditions to improve traffic and transportation
- Urban Environment - View real-time climate data in urban areas
Examples of using the device.

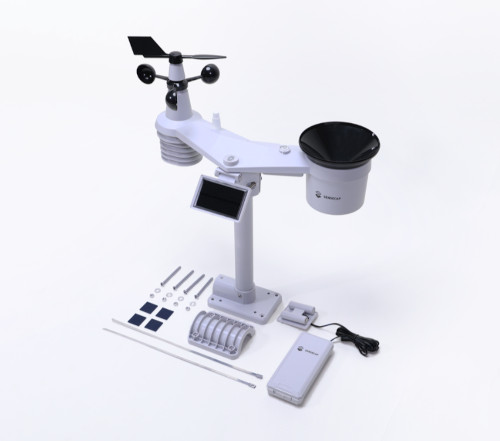

SenseCAP S2120 8-in-1 LoRaWAN weather station.
SenseCAP S2120 weather station measurements
- Temperature:
- Range: -40°C to 80°C
- Accuracy: ±0.5°C (0°C to 80°C); ±0.6°C (-40°C to 0°C)
- Precipitation:
- Range: from 0mm/hr up to 450mm/h
- Accuracy: ±7%
- Air humidity:
- Range: 0%RH to 99%RH
- Accuracy: ±3%RH (1% to 90%RH); ±4%RH (90% to 99%RH)
- barometric pressure:
- Range: from 540 hPa to 1100 hPa
- Accuracy: ± 5 hPa (from 700 hPa to 1100 hPa); ±8hPa (540hPa to 699hPa)
- Wind speed:
- Range: 0 m/s to 50 m/s
- Accuracy: ±0.5 m/s (<5 m="" s="" 10="">5 m/s)
- Wind direction:
- Range: 0° to 360°
- Accuracy: ± 8°
- Light intensity:
- Range: 0 lux to 200,000 lux
- Accuracy: ±5%
- UV index:
- Range: 0 to 16
- Accuracy: ±10%
Kit contents
- Weather station with built-in sensors and solar panel
- External socket for 6 AA batteries
- Stand
- Mounting clamp
AA batteries are not included - they must be purchased separately.

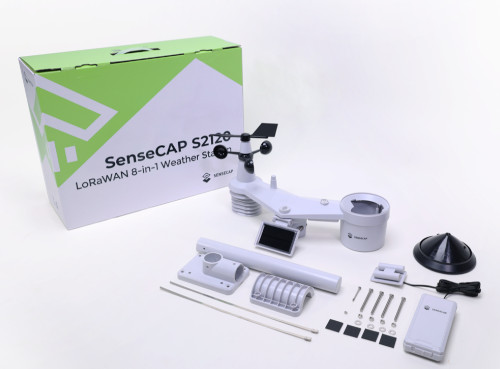

Components included in the set.

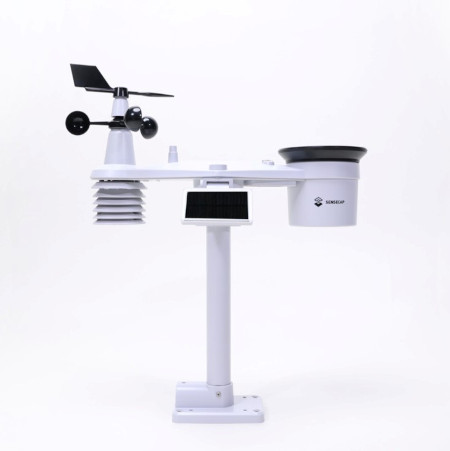

SenseCAP S2120 consumes very little energy, so it does not generate high costs.
Technical specification of the weather station
- Producer: Seeedstudio
- Model: S2120
- Microcontroller: WM-LR1110
- Protocol Supported: LoRaWAN v1.0.3 Class A
- Built-in Bluetooth: parameter change via app
- LoRaWAN Channel Plan: IN865 / EU868 / US915 / AU915 / AS923 / KR920 / RU864
- transmission power: 21 dBm
- Sensitivity: -141 dBm for SF12 BW = 125 kHz
- Communication range: from 2 km to 10 km (depending on the terrain)
- Working temperature:
- -20°C to 60°C (alkaline battery)
- -40°C to 60°C (lithium battery)
- Operating Humidity: 0% to 99%
- Power:
- 0.5W solar panel
- 1.5V AA batteries
- built-in slot for 3 AA batteries
- external socket for 6 AA batteries
- Weight: 1.5 kg
