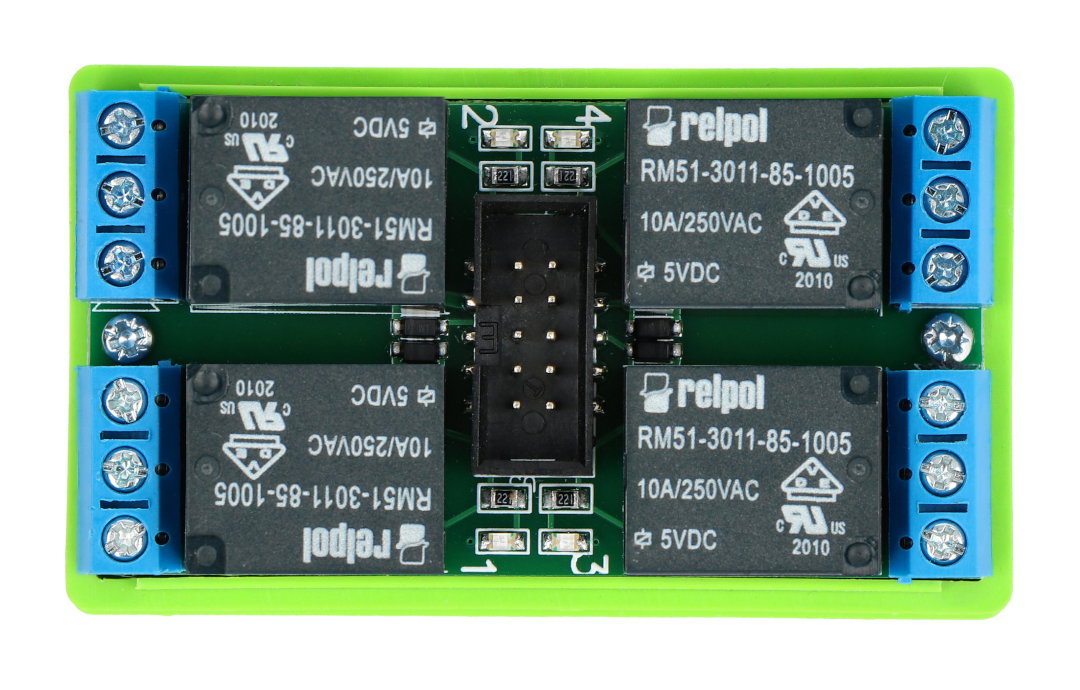

Tinycontrol LANKON-094 - relay module 4x10A /coil 5V for GSM/LAN controller - for DIN rail

Index: TNC-08293 EAN: 5904422311445

The module is equipped with 4 Relpol relay a coil supplied with a voltage of 5V, with optical isolation input and mounting holes. The system is designed to work with LAN Controller. It is highly resistance to impact. Special contacts design removing metal oxides with each switching results in additional increase in time of error-free operation. It is possible to mount it on a DIN-rail.

€17.38
€14.13 tax excl.
Delivery scheduled for 2022-01-31
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Tinycontrol

Description

The module is equipped with 4 Relpol relay a coil supplied with a voltage of 5V, with optical isolation input and mounting holes.The system is designed to work with GSM-Controller and LAN Controller, which provides independent control of these relays. It is highly resistance to impact. Special contacts design removing metal oxides with each switching results in additional increase in time of error-free operation. It is possible to mount it on a DIN-rail.

Board is not compatible withLan Controller V2.



Examples of application

  • Lighting driver
  • Executive system driver
  • Switch for electric devices, including motors

Specification

  • The coil supply voltage: 5V DC
  • Maximum load:
    • 10 A - by 230 V AC (AC-1)
    • 10 A - by 24 V DC (DC-1)
  • Outputs relay: NO, C, NC
  • Contact resistance: less than 100 MOhm
  • Contact material: AgSnO2
  • LEDs signal
  • Operating temperature: -30°C to 70°C
  • Connection cable with LAN Controller included
  • Dimensions: 71 x 41,5 x 32mm
  • Weight: 72g

Channels 4
Interface GSM / LAN
Smart Home Universal Binary Sensor
