CP2102 USB-UART TTL Converter - USB type C socket - Waveshare 20644

Index: WSR-20538 EAN: 5904422381585
Converter allowing communication between USB and UART serial interfaces on TTL level. Equipped with CP2102 chip, it works with a voltage of 3.3 V or 5 V, which is selected by a jumper. The device operates at full USB speed of 12 Mbps. The converter supports UART communication with a baud rate range of 300 bps to 1 Mbps. It also has an integrated EEPROM with a capacity of 1024 bytes.
CP2102 USB-UART TTL Converter - USB type C socket - Waveshare 20644
€6.29
€5.12 tax excl.
Delivery scheduled for 2023-01-06
Waiting for delivery
30-day returns
PayPal payment
Manufacturer: Waveshare

Product description: CP2102 USB-UART TTL converter - USB type C socket - Waveshare 20644

Converter allowing communication between USB and UART serial interfaces at TTL level. Equipped with CP2102 chip, it works with a voltage of 3.3 V or 5 V, which is selected by a jumper. The device operates at full USB speed of 12 Mbps. The converter supports UART communication with a baud rate range of 300 bps to 1 Mbps. It also has an integrated EEPROM with a capacity of 1024 bytes.

Konwerter USB-UART CP2102 - gniazdo USB typu C - Waveshare 20644.

CP2102 USB-UART converter - USB type C socket - Waveshare 20644.

Konwerter USB-UART.

USB-UART converter.

Specific features of the converter

  • Single chip USB to UART data transfer
  • No external resistors required
  • USB function controller complies with USB 2.0 specification; full speed 12 Mbps
  • USB suspend state, supported by SUSPEND pins

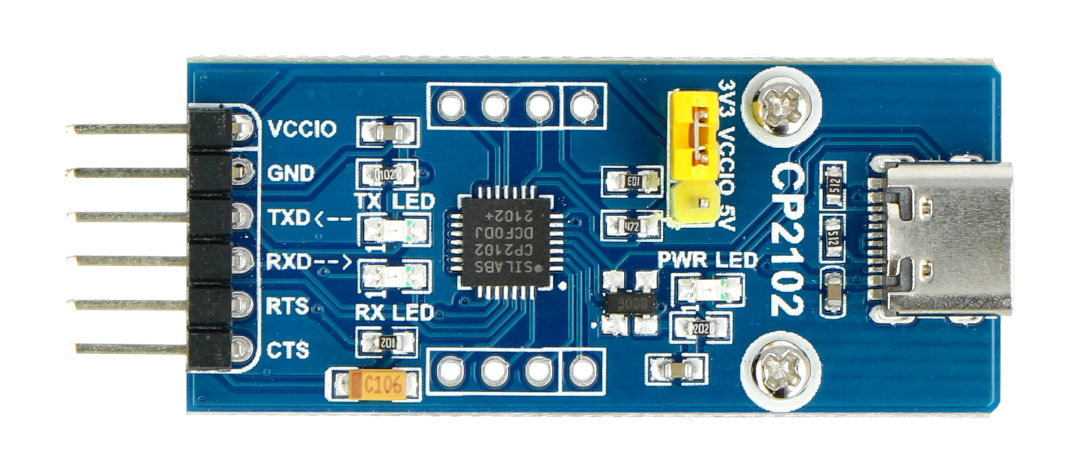

Pinout description

  • VCCIO - power supply 3.3 V or 5 V selected by jumper
  • GND - system ground
  • TXD - UART transmitter pin, connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
  • RXD - UART receiver pin, connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
  • RTS - UART Request to Send signal, connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
  • CTS - Clear to Send signal of UART interface, connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)

Technical specification of the module

  • Module type: converter
  • Conversion type: USB C - UART TTL
  • Embedded chip: CP2102
  • UART data formats:
    • data bits: 5, 6, 7, 8
    • stop bits: 1, 1,5, 2
  • Baud rate: 300 bps to 1 Mbps
  • Receive buffer: 576 bytes
  • Transmit buffer: 640 byte
  • Input voltage: 3.3 V / 5 V
  • Integrated USB Security Device: SP0503
  • Integrated EEPROM memory: 1024 bytes
  • Virtual COM port device drivers
    • Windows 8/7/Vista/Server 2003/XP/2000
    • MAC OS-X/OS-9
    • Linux 2.40 or higher
  • Direct support for USBXpress drivers
    • Windows 7/Vista/Server 2003/XP/2000
    • Windows CE
  • 3x LEDs: TXD LED, RXD LED, POWER LED
  • Operating temperature range: from -40°C to 85°C
  • Module dimensions: 46.99 x 20.32 mm

Set contents

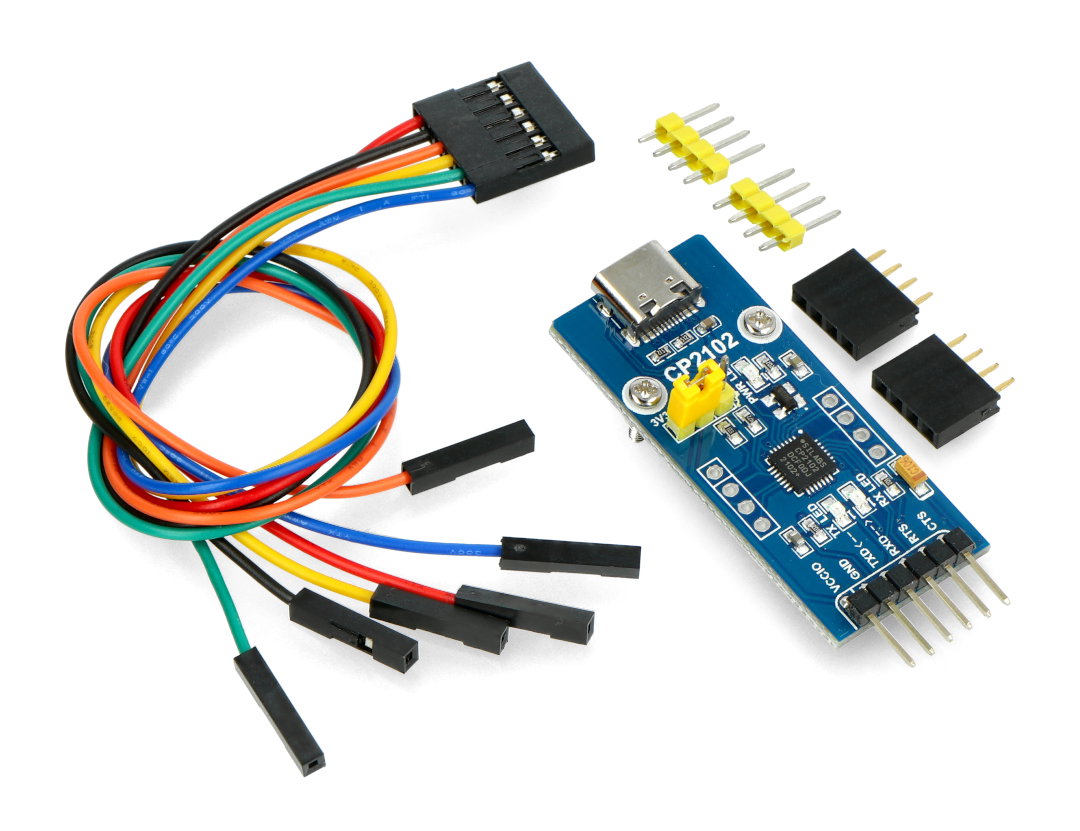

  • USB-UART converter CP2102 - USB type C socket - Waveshare 20644
  • Connection cable 6pin
  • Goldpin strips - two types - 4 pieces
Zawartość zestawu

Kit contents.

Attention!

Module is compatible ONLY with TTL level, to avoid damage do not connect it directly to RS232 circuit.

Converter - chip CP2102
Converter - Socket USB C
Converter - Interface UART
