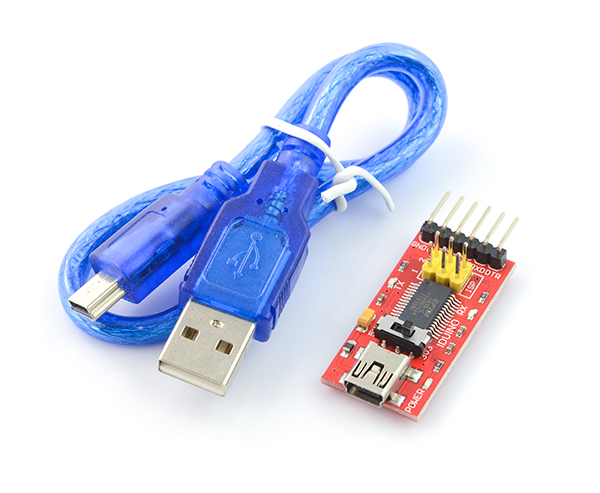

Product description: Converter USB-UART FT232RL FTDI connector mini-usb + cable USB
The converter enables the connectionbetween two popularserial interfaces USB and UART. The module is based on aFT232RL.
The module can be used to exchange data between the computer and the microcontroller system or for programming boards with remote serial interface, e.g.ArduinoorSTM32Discovery. It has a miniUSB connector, and 3 LEDs indicating the power state, sending and receiving data.
The device works with voltages 3.3 V and 5 V. The voltage selection is performed using jumpers in the form of a switch slider. Circuit board has connectors raster 2.54 mm suitable forbreadboardsor for connection using wires.
Connecting converter USB-SAR FTDI FT232RL

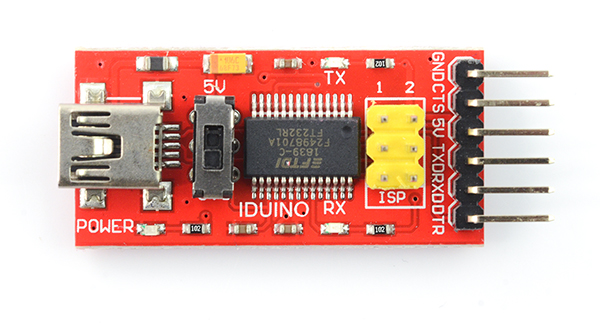

The description of the pins are listed in table.
Pin | Description |
---|---|
GND | The ground of the system. |
CTS | Signal ready for transmission. |
DTR | Data readiness control signal. |
TXD | Pin of UART transmitter. |
RXD |
Pin of UARTreceiver. |
5V | Power 3.3 V or 5 V selectable with jumper. |
Specification of the Converter USB-UART FTDI FT232RL
- Chip: FT232RL
- Working voltage: 3.3 V or 5V selected by jumper / switch
- SPI interface
- status LEDs of TXD/TXD
- Included miniUSB wire
