Converter RS232 - UART with connector DB9 - SP3232 3.3V/5V - Waveshare 3965

Index: WSR-04475 EAN: 5903351248723

Converter of serial interface RS232 to standard UART with 9-pin D-SUB connector. Control system is a popular SP3232. The module operates with a supply voltage range from 3.0 V to 5.5 V.

Converter RS232 - UART with connector DB9 - SP3232 3.3V/5V - Waveshare 3965
€2.50
€2.03 tax excl.
Delivery 100 pcs scheduled for 2024-04-08
Waiting for delivery
PayPal payment
Manufacturer: Waveshare

Description

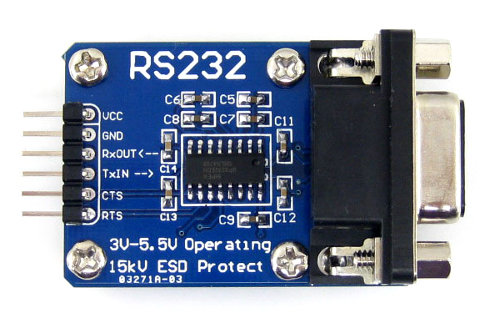

Converter allows to connect serial interface RS232 and UART -voltage standard TTL. Module on one side has a D-SUB connector, on the other outputs solderedgoldpin connectors - 2.54 mm raster. Control system is a converter SP3232 (compatible with MAX3232) with operating voltages of 3.3 V and 5 V.

Connection

Description of pins goldpin raster 2.54 mm, are given in the table below.



Pin Description
VCC Voltage ranges from 3.0 V to 5.5 V.
GND The ground of the system.
RX The input line of the UART interface.
TX The linear output of the UART interface.
CTS Pin for flow control - signals data ready to send.
RTS Pin for flow control - request to send data.



Specification

  • Supply voltage: from 3.0 V to 5.5 V
  • Driver: SP3232 (documentation) - compatible with MAX3232
  • Outputs:
  • Mounting holes with screws
  • Included 6-pin cable with female ends
  • Board sizes: 45 x 31 mm



Converter - chip SP3232
Converter - Interface UART - RS232
Test 4
Package width 6 cm
Package height 1 cm
Package depth 12 cm
Package weight 0.023 kg
