Product description: DHT11 digital temperature and humidity sensor - Waveshare 9535

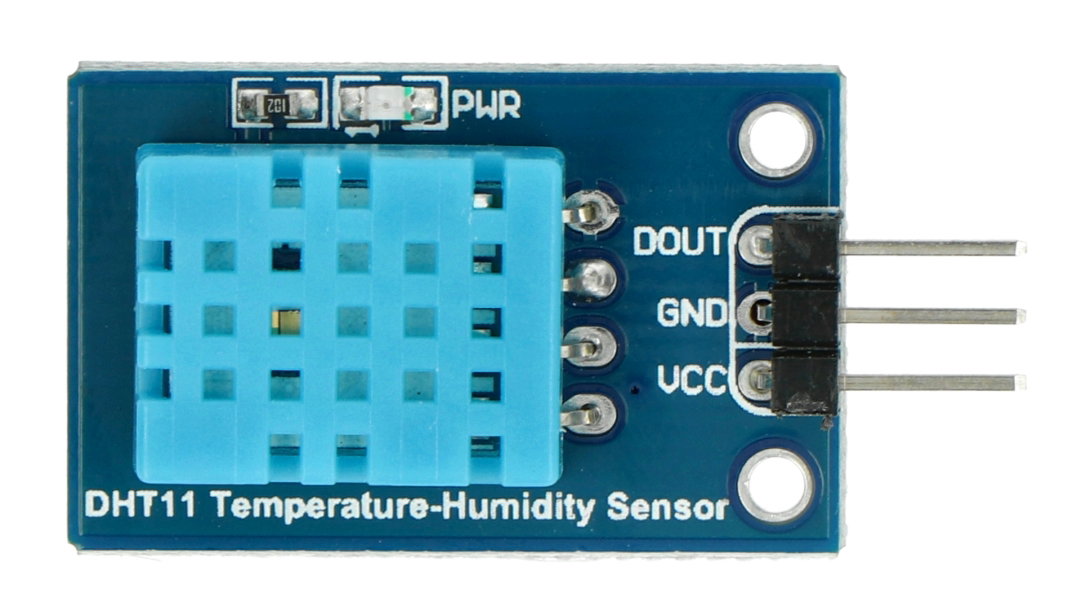

DHT11 digitaltemperatureandhumiditysensormodule from Waveshare. It enables temperature measurementfrom 0°C to 50°Cwith measurement accuracy of ± 2°C and ambient humidityfrom 20% RH to 90% RHwith accuracy of ± 5% RH. The module is supplied with voltagefrom 3.3 V to 5.5 V.It uses a standard single-wire interface. It can be successfully used in projects such as a weather station or humidity controller.
|
The product is compatible with Arduino |
Digital temperature and humidity sensor.
A dedicated connection cable is included.
Technical specification of DHT11 sensor
- The temperature:
- Resolution: 1°C
- Accuracy: ± 2°C
- Measuring range: 0°C to 50°C
- Moisture:
- Resolution: 1% RH
- Accuracy: ± 5% RH (0°C to 50°C)
- Measuring range: 20% RH to 90% RH (at 25°C)
- Operating voltage: 3.3 V to 5.5 V
- Recommended storage conditions
- Temperature: 10°C to 40°C
- Humidity: 60% RH or less
- The exits:
- VCC - power supply from 3.3 V to 5.5 V
- GND - system weight
- DOUT - communication port pin
- Module dimensions: 29.21 x 18.03 mm
- Mounting hole dimensions: 2 mm

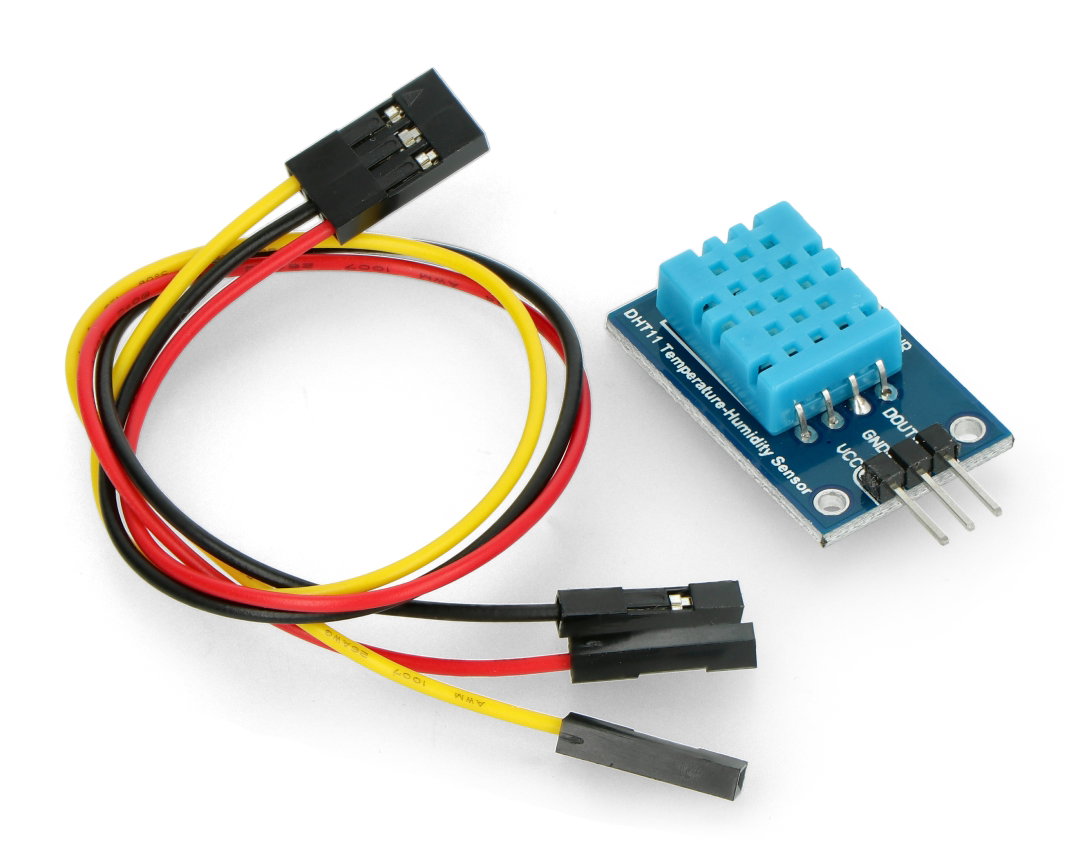

Set contents
- DHT11 temperature and humidity sensor
- Dedicated 3-pin connection cable
