Product description: Touchscreen (C) capacitive LCD IPS 8'' 1280 x 800 px DSI for Raspberry Pi - Waveshare 23448

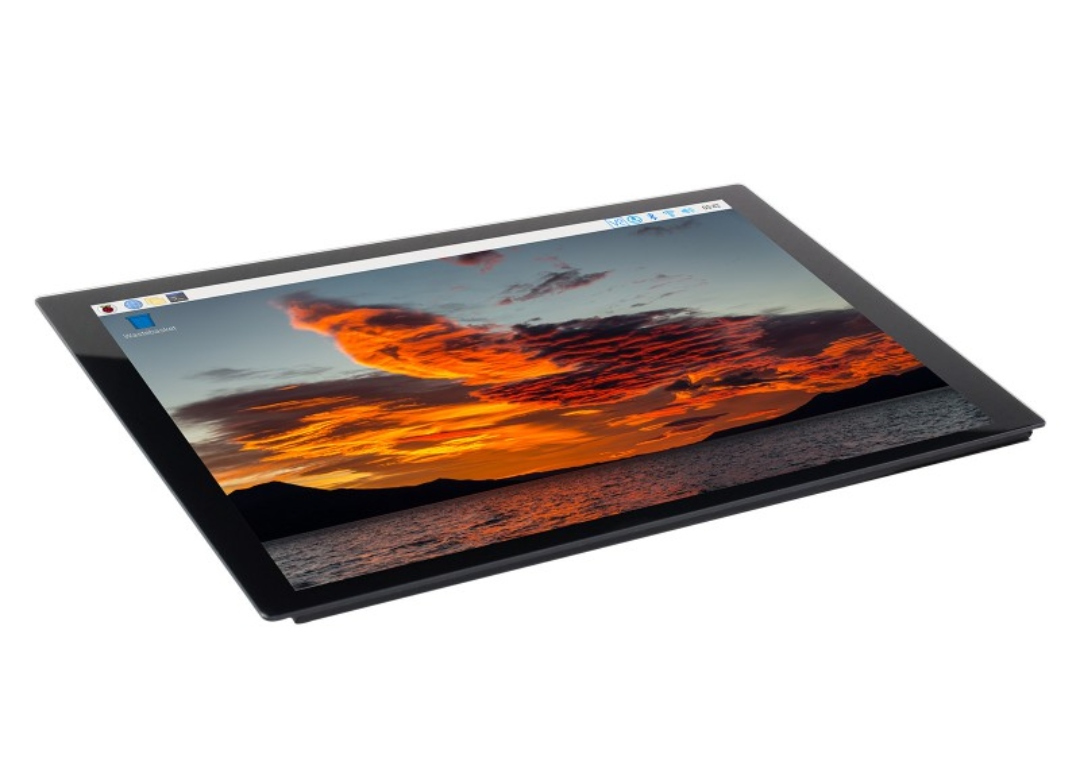

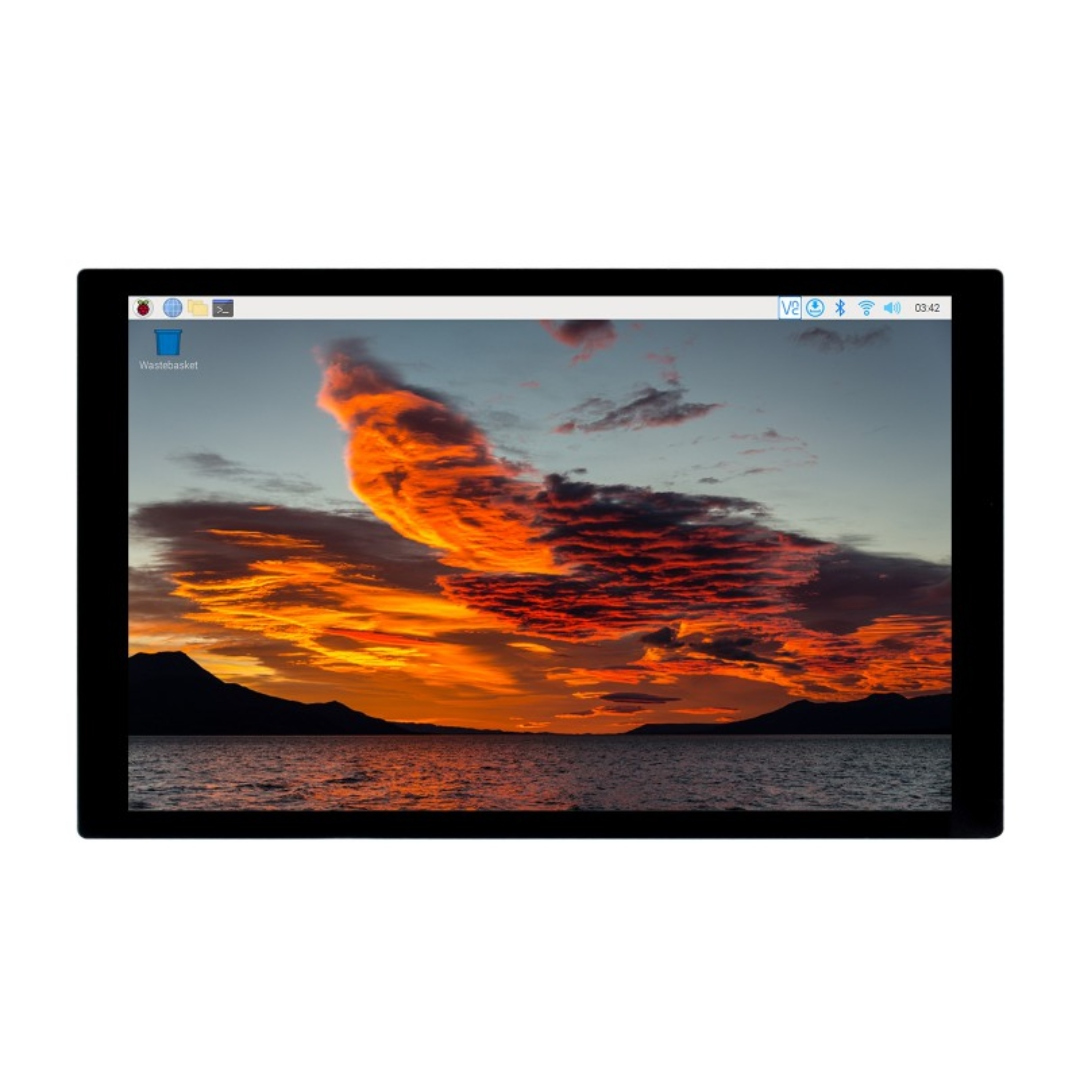

The 8-inch 1280 x 800 px touchscreen display provides high image quality and an extremely wide 178° viewing angle thanks to IPS technology. The display supports up to 10 touch points, allowing for convenient and precise gesture control. Tempered glass with a hardness of up to 6H and Optical Bonding technology make the screen scratch- and dust-resistant , ensuring long-lasting durability and reliability. This display is compatible with the Raspberry Pi (Pi 5, 4B, 3B+, 3A+, CM3/3+/4) and runs the Raspberry Pi OS operating system. Software-adjustable brightness allows users to adjust the display settings to suit different lighting conditions.
Raspberry Pi Touch Display - 8'' 1280 x 800 px capacitive DSI touchscreen for Raspberry Pi.
The 8-inch 1280 x 800 px touchscreen display provides high image quality and an extremely wide viewing angle of 178° thanks to IPS technology.
Special features
- Screen size: 8-inch display provides a comfortable work surface, perfect for controlling devices or displaying interactive content
- HD resolution 1280 x 800: guarantees a clear and detailed image, thanks to which texts, graphics and multimedia are presented in high quality
- IPS panel : provides wide viewing angles of up to 178°, allowing you to comfortably use the display from various positions without losing image quality and colors
- Touch type: Capacitive, supporting up to 10 touch points simultaneously, allowing for convenient multi-touch control and gesture support
Modern design and high functionality
The touchscreen (C) is a solution designed for those who want to fully utilize the capabilities of their Raspberry Pi and enjoy the convenience of touchscreen operation. The display offers a resolution of 800 x 1280 pixels, allowing for detailed and sharp content. This ensures even small graphics and text are clearly visible, making it extremely useful for educational applications, DIY projects, and home automation solutions.
The display supports up to 10 touch points, which allows for convenient and precise control using gestures.
With adjustable brightness via software, users can adjust the display settings to suit different lighting conditions.
Versatility of applications
Thanks to its multifunctionality and compact dimensions, the display is suitable for various applications, such as:
- Home automation projects - as a control panel for a smart home
- EduTech - a great educational tool for learning programming and electronics
- Information kiosk - touchscreen ideal for kiosk, point of sale and information applications
- Multimedia projects - thanks to its excellent image quality, it is an ideal display for video and photo applications
Kit contents
- Touchscreen (C) capacitive LCD IPS 8''
- FPC 15-pin ribbon with 1 mm pitch - 50 mm
- DSI cable - 120 mm
- 15-pin FPC ribbon with 1 mm pitch - 160 mm
- 4-pin cable with 2 mm pitch - 200 mm
- Set of mounting elements
| Touchscreen Specifications (C) | |
|---|---|
| LCD type | IPS |
| Display size | 8 inches (diagonal) |
| Resolution | 1280 x 800 px |
| Viewing angle | 178° |
| Screen type | 10-point capacitive panel |
| Matrix | Optical Bonding, 6H tempered glass |
| Number of supported touch points | 10 points |
| Color palette | 24-bit RGB |
| Communication | DSI, I2C (touch) |
| Supported systems | Raspberry Pi OS |
| Compatibility | Raspberry Pi versions 5, 4B, 3B+, 3A+ and CM3, CM3+ and CM4 modules (adapter required) |
| Refresh rate | 60 Hz |
| Dimensions | 194 x 119 mm |
