Product description: boneIO ESP 32x10A - intelligent controller
The boneIO ESP 32x10A was designed for advanced building automation installations and extensive Smart Home systems. It offers 32 relay outputs with a load capacity of up to 10 A and 35 digital inputs , allowing for centralized control of lighting, gates, pumps, alarm systems, and many other system components. Native integration with Home Assistant and ESPHome allows users to create advanced automation scenarios, schedules, and device dependencies tailored to individual needs. At the heart of the controller is a powerful ESP32 microcontroller, ensuring stable operation and extensive integration options. Built-in RS485, CAN, 1-Wire , and I2C interfaces enable communication with additional modules, energy meters, ventilation systems, heat recovery systems, and measurement devices. The entire system operates locally, without the need for cloud services, ensuring a high level of security and reliable control over the installation.
The manufacturer has prepared a comprehensive user guide that allows you to go through the configuration in Home Assistant step by step.

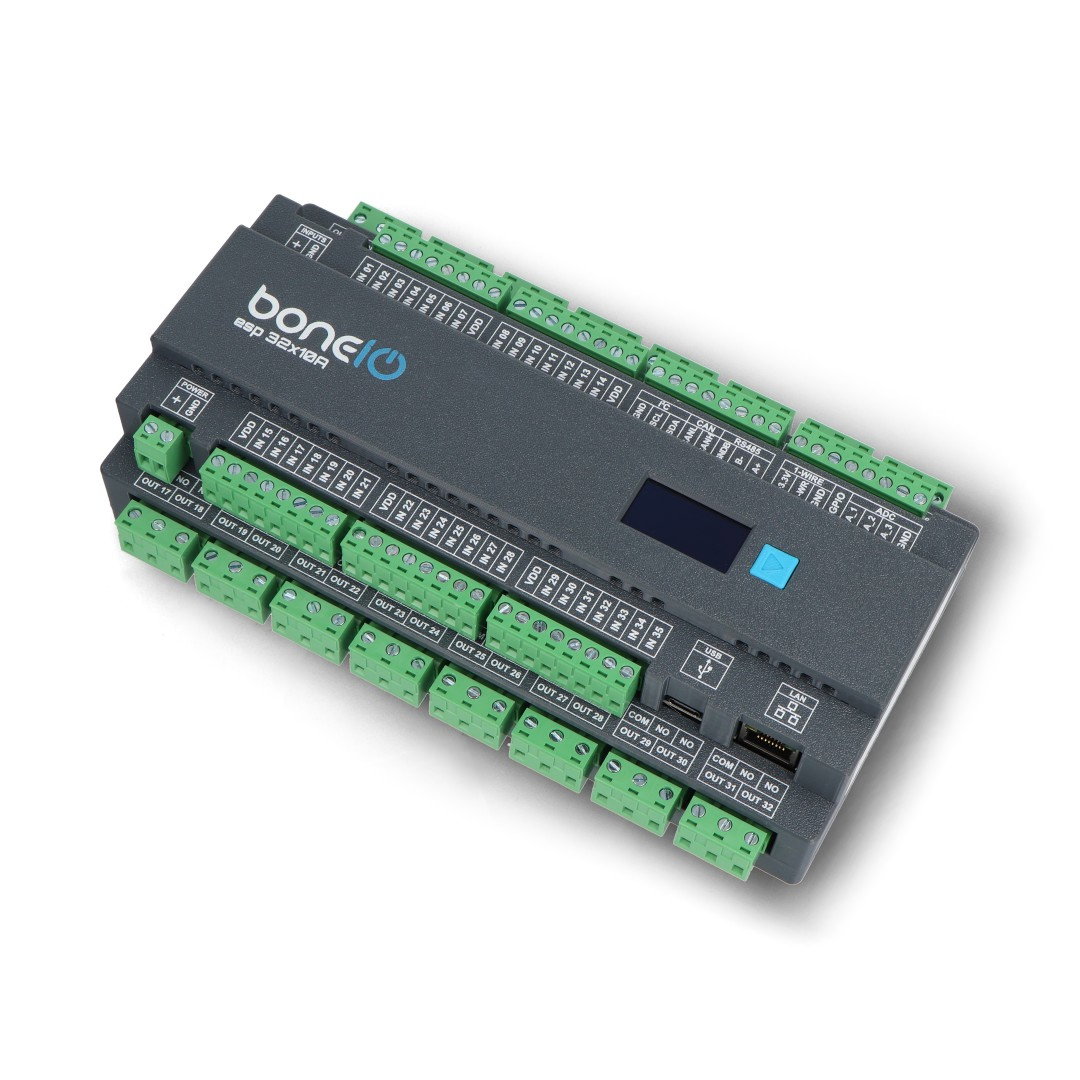

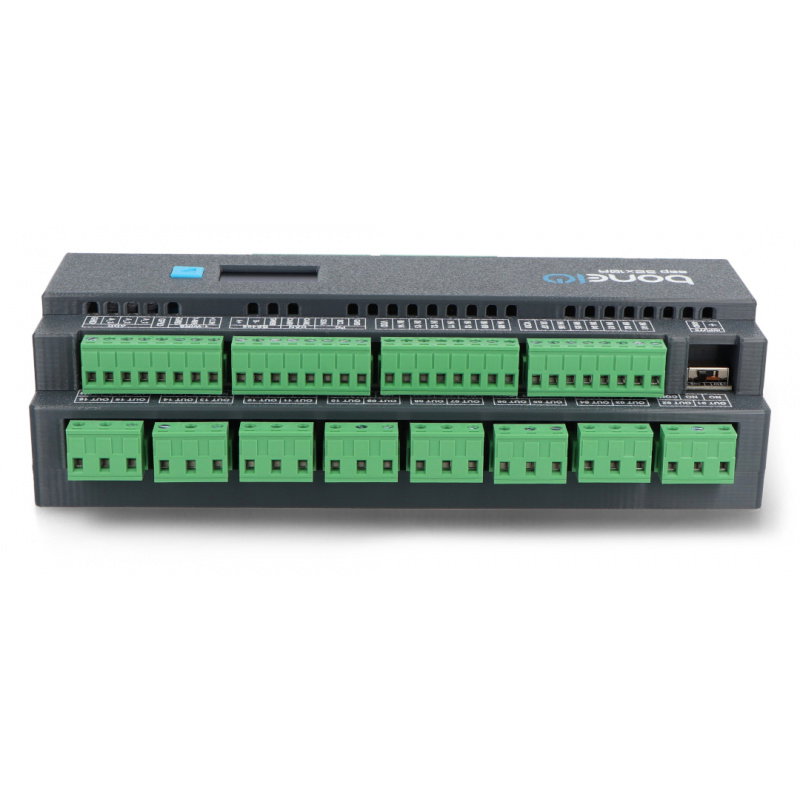

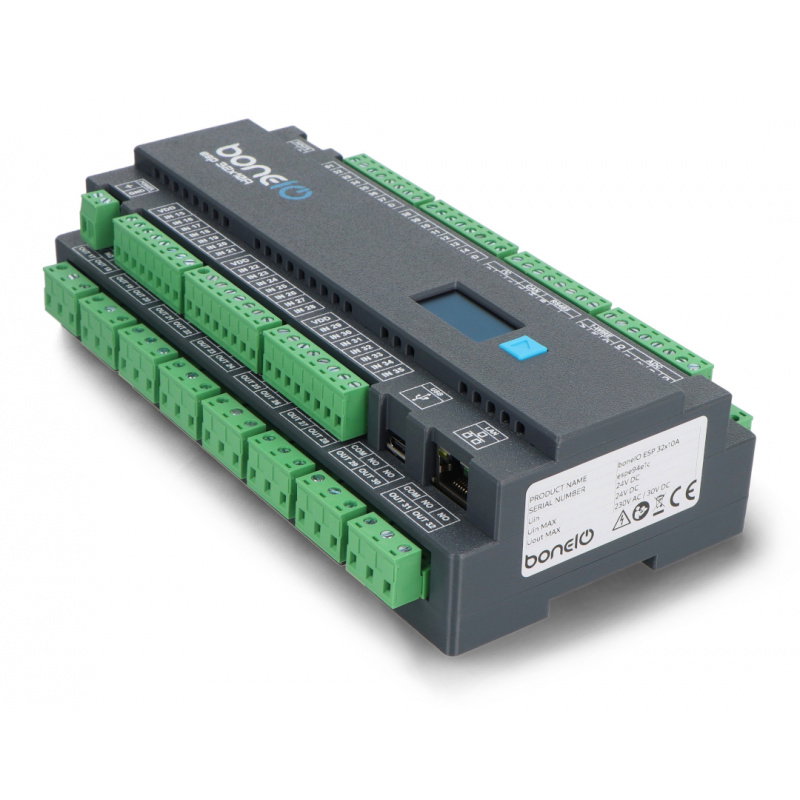

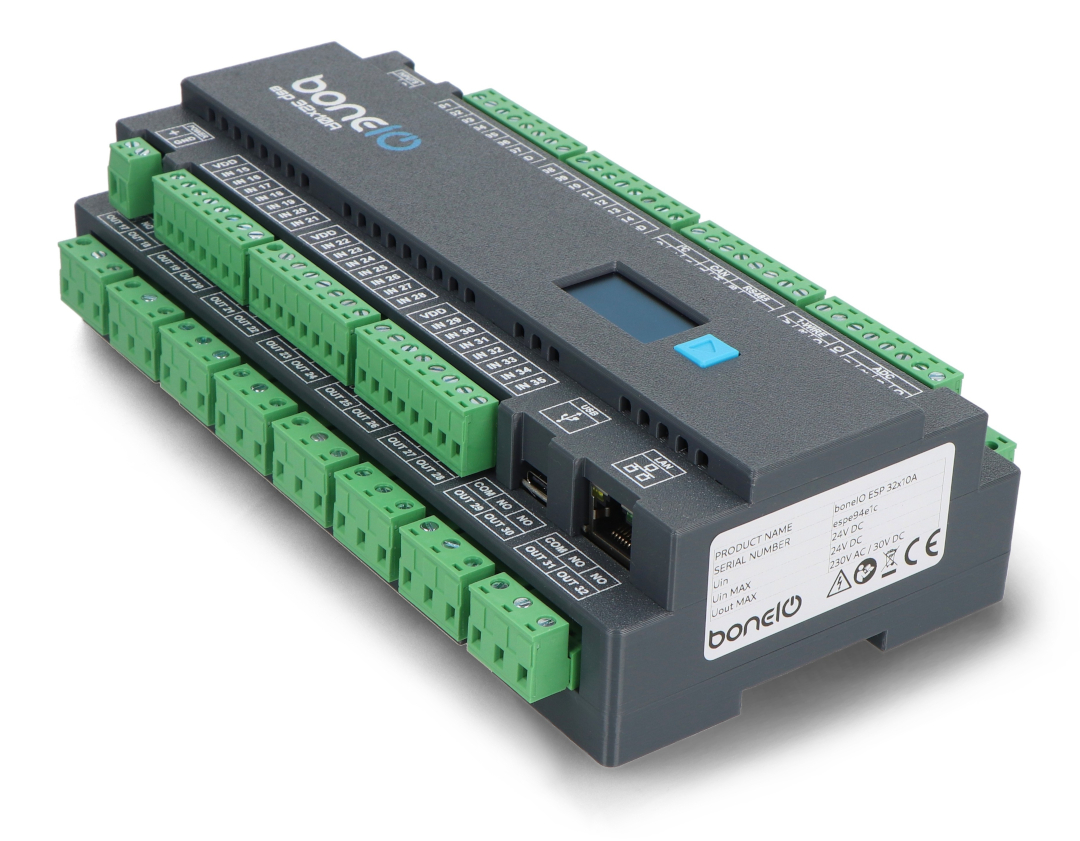

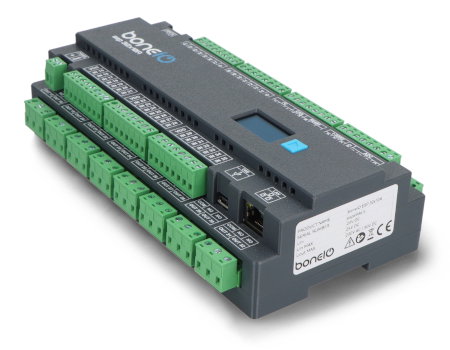

boneIO ESP 32x10A - intelligent controller.

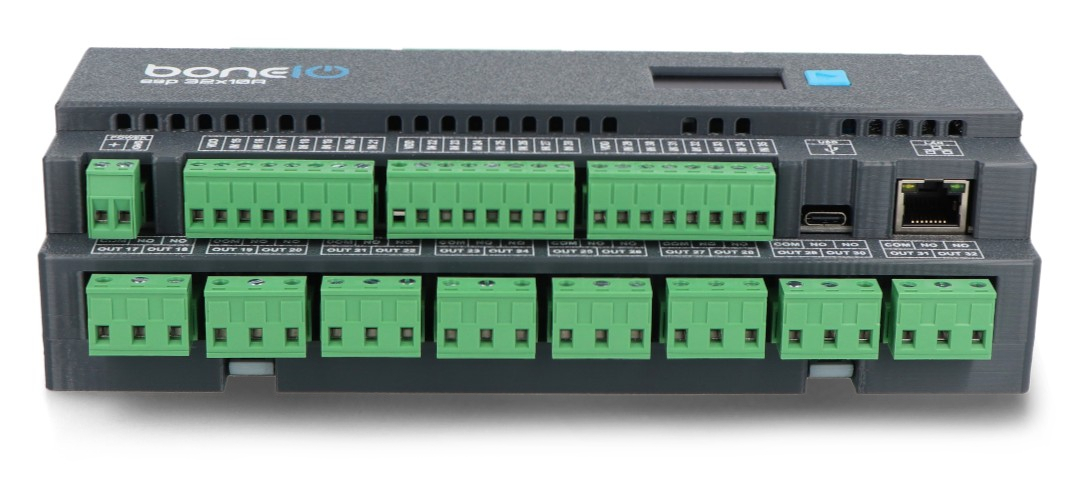

35 independent digital inputs allow you to connect switches, motion sensors, window contacts and any other device that provides a signal up to 24 V.
Main features of the controller
- 32 10A relay outputs: enabling control of lighting, gates, pumps and other electrical devices
- 35 digital inputs: support for buttons, motion sensors, reed switches and other devices with voltage up to 24 V
- Integration with Home Assistant and ESPHome: enabling the creation of advanced automations and local installation management
- RS485, CAN, 1-Wire and I2C communication interfaces: easy system expansion with additional devices and sensors
- 3 ADC analog inputs: enabling the connection of sensors operating in the ranges from 0 to 5 V, 0 to 10 V and 0 to 25 V
- Built-in OLED display: displaying the most important information about the device's operation and system parameters
- Energy consumption measurement: monitoring the controller's power consumption without using additional modules
- DIN rail mounting: ensuring convenient installation in electrical distribution boards
- Work locally without the cloud: high level of data security and independence from external services
- Open system architecture: enabling customization of functionality to the individual requirements of building automation installations
Extensive integration capabilities
The boneIO ESP 32x10A is equipped with a range of communication interfaces that enable integration with numerous devices used in modern building automation. Support for RS485, CAN, 1-Wire, and I2C buses enables communication with energy meters, ventilation and heat recovery systems, air conditioners, photovoltaic inverters, measurement modules, and various environmental sensors. Thanks to its large number of inputs and outputs, the controller can serve as the central management element of a smart home installation. It enables the creation of interdependencies between various building systems, the automation of daily processes, and the monitoring of device operating parameters from a single interface. This reduces the number of additional controllers and simplifies the entire installation architecture. Integration with Home Assistant and ESPHome opens up access to a broad ecosystem of devices and ready-made integrations . Users can create extensive scenarios that include lighting control, heating, ventilation, security systems, and energy management. Integration with Home Assistant via Ethernet or USB-C enables local communication without the need for the cloud, ensuring fast automation, greater reliability, and full control over data and building infrastructure.

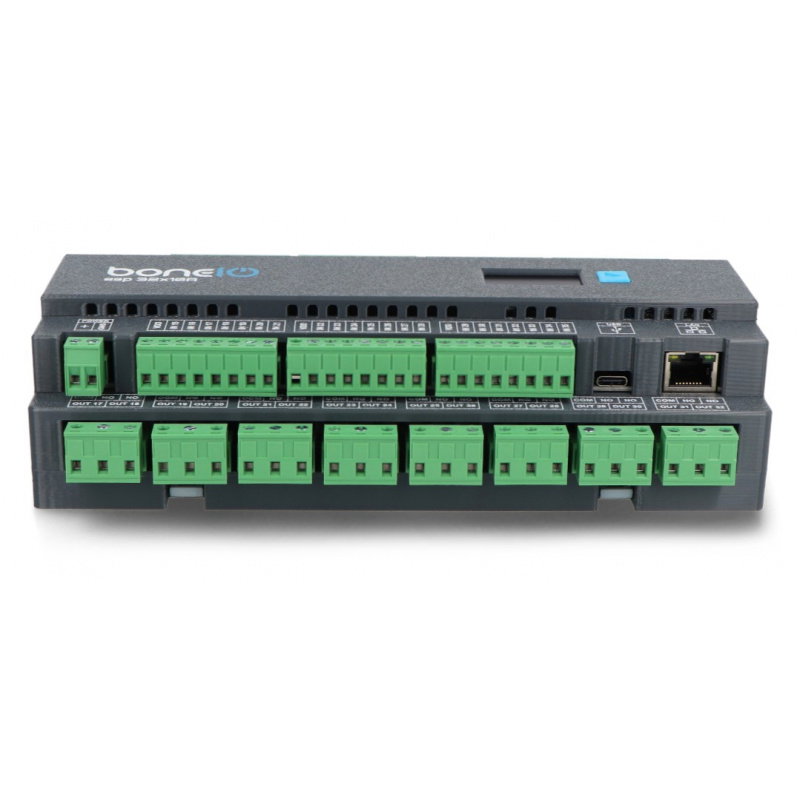

boneIO ESP 32x10A enables the creation of dependencies between various building systems, automation of daily processes and monitoring of device operating parameters from a single interface.

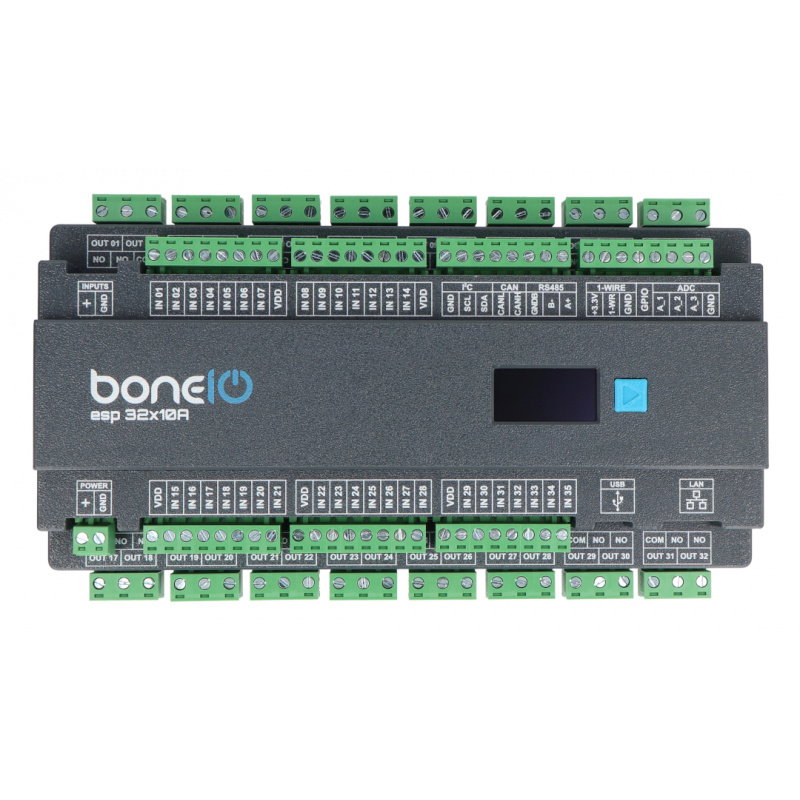

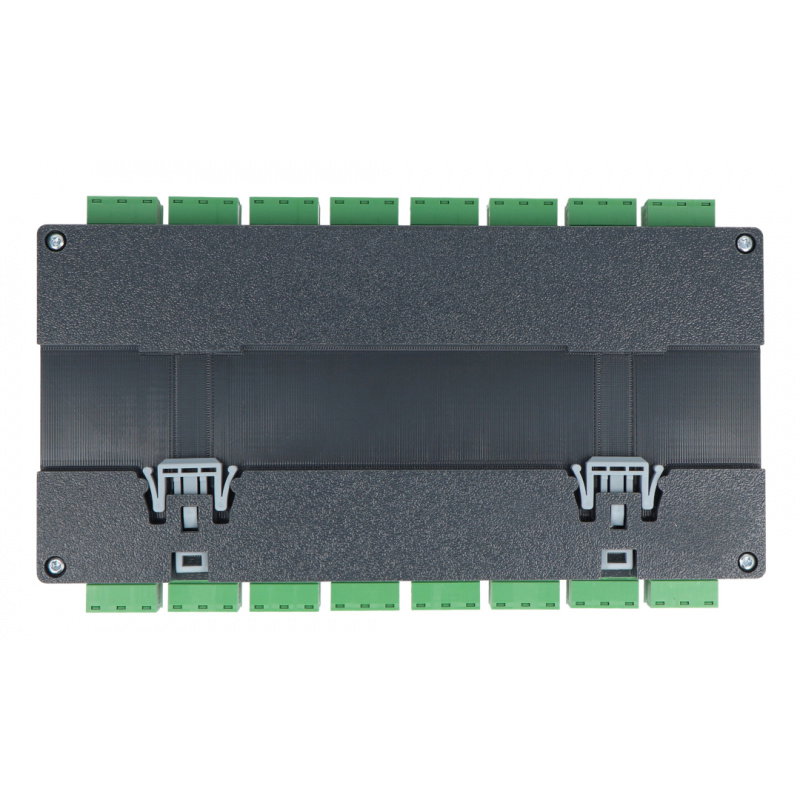

The compact housing with a width of 12 DIN modules enables convenient installation in standard electrical distribution boards.
Freedom of integration and professional installation
The boneIO ESP 32x10A intelligent controller is based on the open-source ESPHome software, ensuring complete configuration freedom and the ability to tailor functionality to individual installation requirements. The open-source nature of the platform allows for integration with a wide range of devices and services without dependence on closed ecosystems or paid subscriptions. Thanks to an active community, users have access to numerous guides, ready-made configurations, and regularly updated features. The compact, 12-DIN housing allows for convenient installation in standard electrical distribution boards. Despite the large number of inputs and outputs, the controller takes up relatively little space , facilitating the design of new installations and the modernization of existing building automation systems. The well-thought-out design allows for tidy wiring and easy access to connectors during configuration and servicing. DIN rail mounting allows the boneIO ESP 32x10A to be seamlessly integrated with other control cabinet components . This makes the device suitable for both Smart Home systems and as well as in more complex building automation installations requiring central management of many circuits and devices.
Technical specifications of boneIO ESP 32x10A
| Parameter | Value |
|---|---|
| Device type | intelligent building automation controller |
| Microcontroller | ESP32 |
| Number of outputs | 32 |
| Number of digital inputs | 35 |
| Supply voltage | 24V DC |
| Energy consumption | from 5 W to 18 W |
| Digital input voltage | 24V DC |
| Output type | relay |
| Maximum output voltage | 230V AC / 30V DC |
| Maximum output current | 10 A |
| Analog inputs | 3 |
| ADC Range 1 | from 0 to 5 V |
| ADC Range 2 | from 0 to 10 V |
| ADC Range 3 | from 0 to 25 V |
| External interfaces | Modbus RS485, I2C, 1-Wire, CAN |
| Communication | Ethernet 10/100 Mbit, USB Type C |
| Integration | Home Assistant, ESPHome |
| Display | OLED |
| Energy measurement | Yes |
| Installation | DIN rail (12 DIN) |
| Software | ESPHome (open source) |
| Dimensions | 216 mm x 106 mm x 57 mm (without plugs), 216 mm x 123 mm x 57 mm (with plugs) |
| Mass | 800 g |
