Product description: Ethernet 10/100 Mb / s converter - UART for Raspberry Pi Pico - Waveshare 20410
Ethernet to UART converter for Raspberry Pi Pico, enabling network communication via UART. The device supports four operating modes : TCP Client, TCP Server, UDP Client, UDP Server. It has built-in Ethernet MAC and PHY layers. The soldered female goldpin strip allows you to easily connect the Raspberry Pi Pico via the GPIO pins.
The offer of our store also includes Raspberry Pi Pico modules and kits.

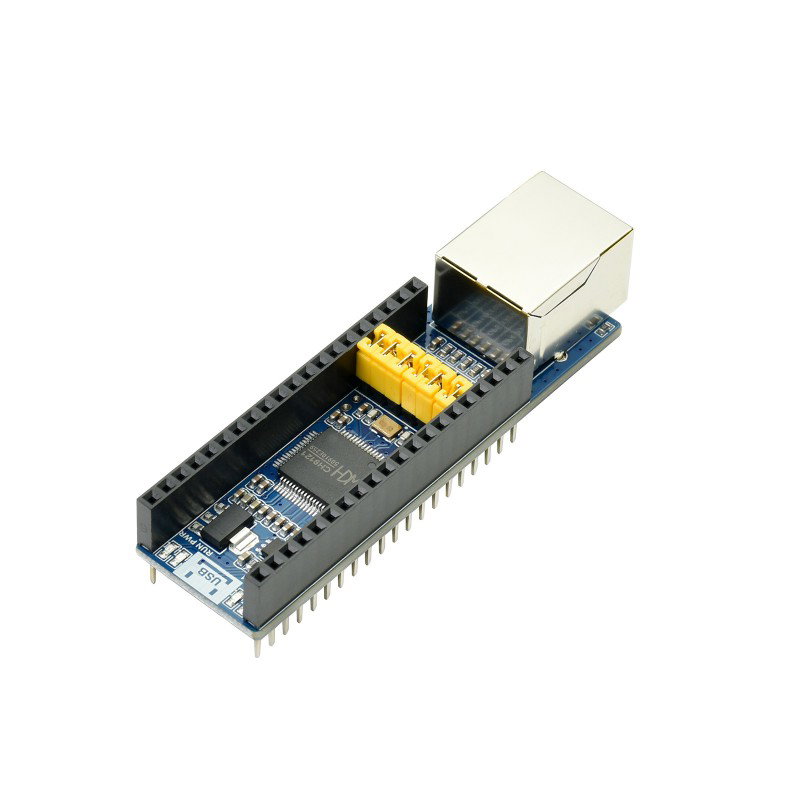

Ethernet converter - UART for Raspberry Pi Pico - Waveshare 20410 .

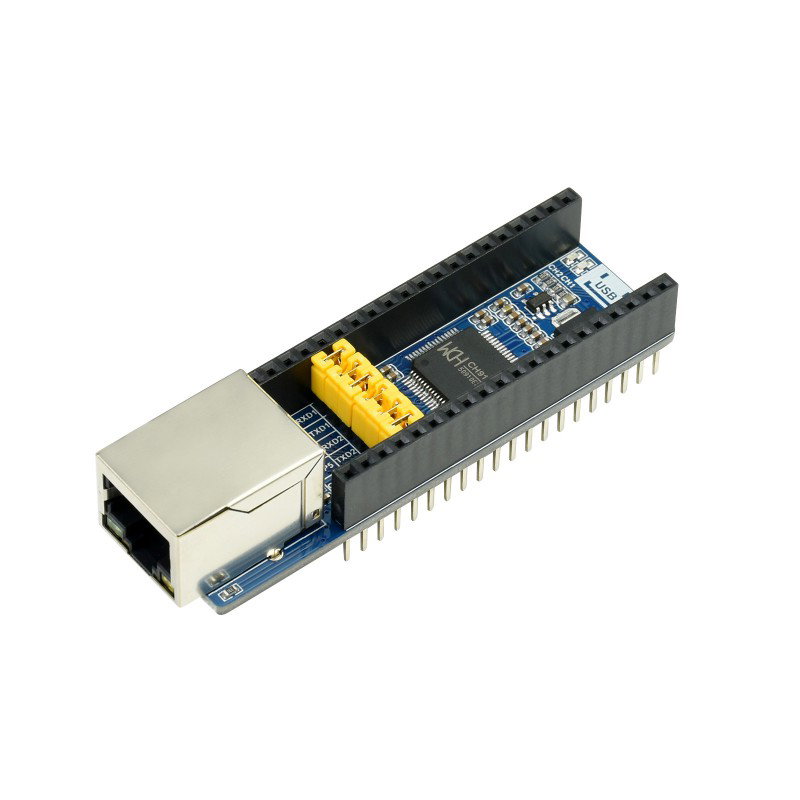

Converter module - Waveshare 20410 .
Product features
- The device has soldered goldpin strips, adapted for mounting on a Raspberry Pi Pico
- Jumpers for pin configuration
- Built-in Ethernet MAC and PHY layers
- Bidirectional data transmission between UART and Ethernet
- Ethernet 10/100 Mb / s, full-duplex / half-duplex, auto-negotiation of the Ethernet interface, compatible with the 802.3 standard
- Auto-MDI / MDIX, automatically detects and changes wire type
- Supports DHCP by automatically accessing IP and DNS domains
- Configuration of network parameters such as chip operating mode, port, IP, by host computer software or UART command
- UART communication in full-duplex or half-duplex mode, supports RS485 RX / TX automatic switch (external RS485 controller required)
- KEEPALIVE mechanism support
Converter module components
- UART connection indicator 2
- UART connection indicator 1
- CH9121 working status indicator
- Power indicator
- CH9121 driver chip
- Integrated circuit AMS1117-3.3 V
- Integrated circuit RT9193-18 GB
- Ethernet connection
- Configuration jumpers

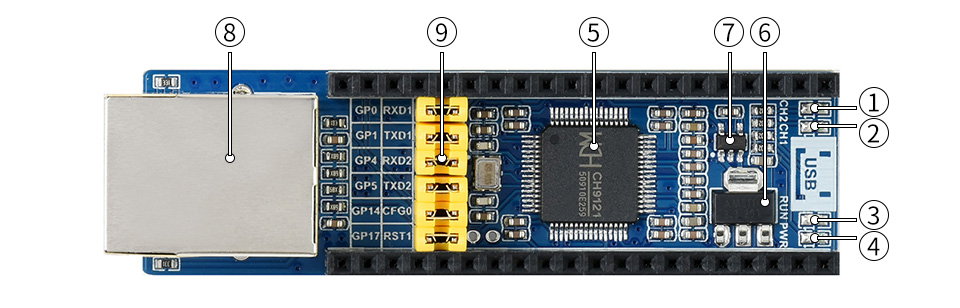

Description of the components of the Waveshare 20410 module .

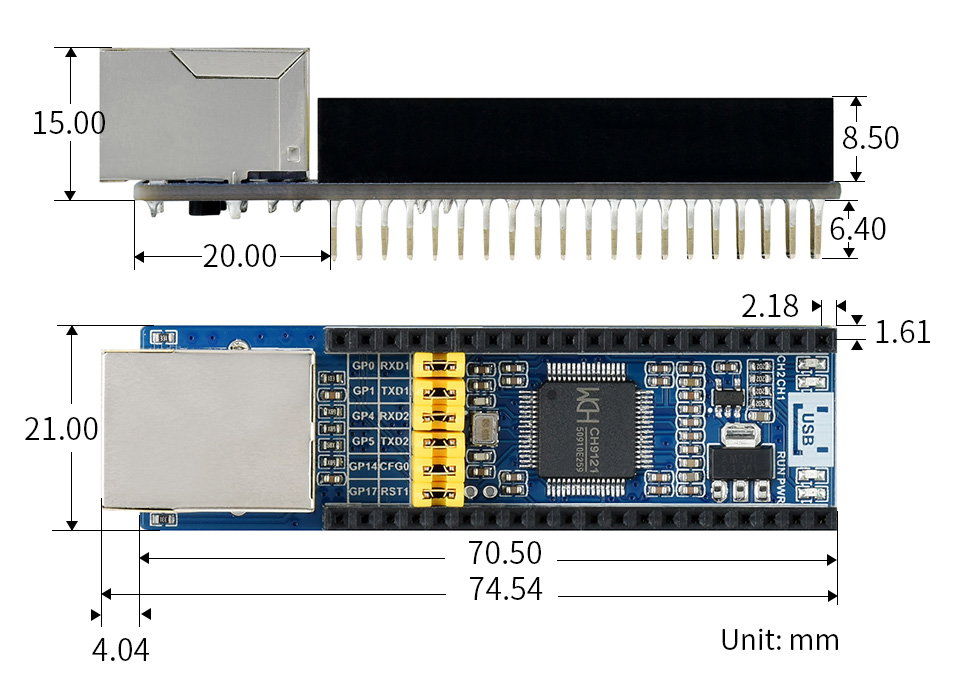

Detailed dimensions of the module .
Specification Ethernet converter 10/100 Mb / s - UART
- Developer: Waveshare
- Manufacturer part number: 20410
- Compatible with Raspberry Pi Pico
- Working voltage: 3.3V / 5V
- Working current: 140 mA
- Working mode: TCP / UDP
- Transmission speed: from 300 bps to 921.6 Kbps
- UART TTL: compatible with 3.3V / 5V
- Operating temperature: -40 ° C to 85 ° C
- Storage temperature: -55 ° C to 125 ° C
- Dimensions: 75.54 x 21 mm
Kit contents
- Converter Ethernet 10/100 Mb / s - UART for Raspberry Pi Pico - Waveshare 20410: 1 pc.
