Description: Touch screen - capacitive QLED Quantum Dot 7'' 1024x600px - Waveshare 18625
Touch screenfrom Waveshare withdiagonalof7"andresolution 1024 x 600 px. The display works withQLEDtechnology, which uses quantum dots that modify the incident light and LED backlight. It has a panel made of tempered glass. It supports many systems and devices, the more popular ones include: Raspberry Pi, Nvidia and Windows. It offers a wide range of colors and the ability to adjust the brightness of the backlight using software.
|
The manufacturer provides aWiki page of the product, which contains detailed information on how to connect the display with other devices. |

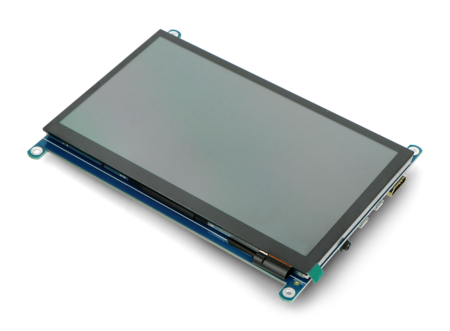

7'' QLED display from Waveshare.

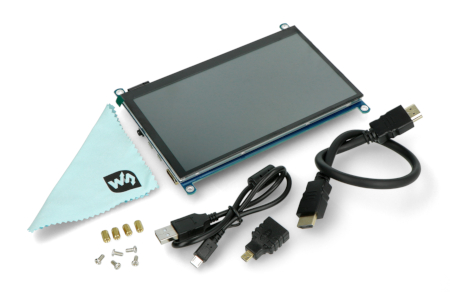

Kit includes QLED display, adapter, cables and mounting hardware.Technical specification
- Technology: QLED Quantum Dot
- Type: capacitive, touch
- Touch points: 5
- Screen diagonal: 7"
- Resolution: 1024 x 600 px
- Viewing angle: 170°
- Audio output:
- 3.5mm jack
- 4-pin connector
- Color gamut: NTSC 78%, SRGB 92%
- Display port: HDMI
- Dimensions: 165 x 125 mm
Set contents
- QLED display
- HDMI cable
- HDMI to microHDMI adapter
- USB A - microUSB plug
- Mounting hardware
Device and system support
The QLED capacitive touchscreen can be used in a variety of ways. It supports, among other things:
- Raspberry Pi OS - 5 touch points, without additional drivers
- Ubuntu/Kali/Windows 10 IoT- single touch point, no additional drivers required
- Retropie- no additional drivers
- Windows 10/8.1/8/7- 5 touch points, no additional drivers
- GameconsolesXbox360 / PS4 and many others

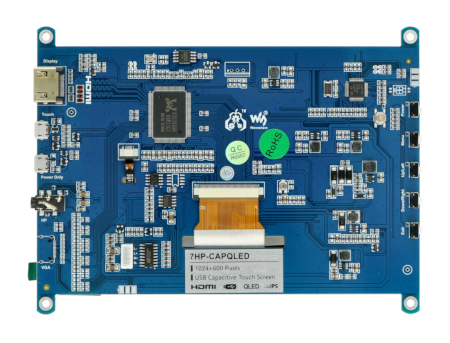

The device uses HDMI port.
