A communication module in the form of a converter that enables communication between USB and UART serial interfaces. It allows the exchange of data between the computer and systems using microcontrollers. The module is based on the PL2303GS chip . In the operating system it is visible as a virtual COM port. UART interface voltage can be 1.8V / 2.5V / 3.3V / 5V.
USB-UART (TTL) converter - PL2303 - USB plug A - V2 version - Waveshare 20265
€3.50
€2.85 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Waveshare

Product description: USB-UART (TTL) converter - PL2303 - USB A plug - version V2 - Waveshare 20265

A communication module in the form of a converter that enables communication between USB and UART serial interfaces. It allows the exchange of data between the computer and systems using microcontrollers. The module is based on the PL2303GS chip . In the operating system it is visible as a virtual COM port. UART interface voltage can be 1.8V / 2.5V / 3.3V / 5V .

Converter USB-UART (TTL) - PL2303 - USB A plug - version V2 - Waveshare 20265 ..

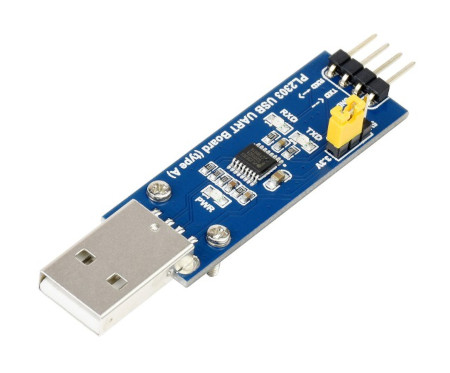

Communication module - USB-UART (TTL) converter - PL2303 - USB A plug - version V2 - Waveshare 20265.

USB-UART (TTL) converter with PL2303 chip.

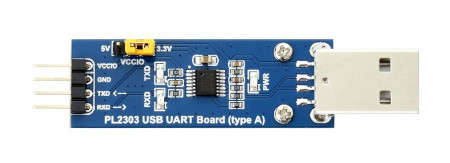

USB-UART (TTL) converter with PL2303 chip.

The main features of the converter

  • Equipped with a chip in the new version V2 - PL2303GS
  • Supports Windows XP / 7/8/10/11
  • It has three power supply modes - 3x VCCIO configured by setting a jumper:
    • VCCIO-5V: 5V output
    • VCCIO-3.3V: 3.3V output
    • open the jumper: powered from the target board with the voltage of 1.8V / 2.5V / 3.3V / 5V)
  • Equipped with three LEDs acting as indicators: TXD, RXD, PWR

Attention!

The Waveshare 20265 module is compatible with TTL level ONLY, to avoid damage, please DO NOT connect it directly to the RS232 circuit.

Description of the converter pins

  • VCCIO - 3.3 V or 5 V output (the module is powered from the USB A port, and the jumper on the board should be shorted to 3.3 V or 5 V)
  • GND - the ground of the system
  • TXD - MCU.RX pin of UART transmitter (signal direction: MCU.RX << PL2303 << PC.TX)
  • RXD - MCU.TX pin of UART receiver (signal direction: MCU.TX >> PL2303 >> PC.RX)

Kit contents

  • Converter USB-UART (TTL) - PL2303 - USB A plug - version V2 - Waveshare 20265
  • 4-pin connection cable

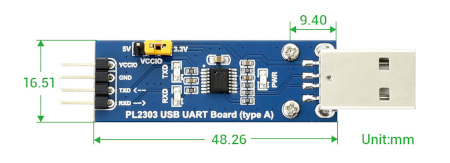

Module dimensions.

Module dimensions.

Converter USB-UART (TTL) - PL2303 - USB A plug - version V2 - Waveshare 20265

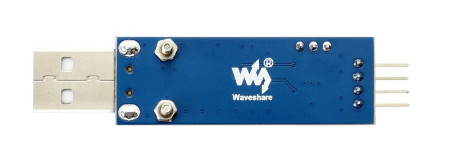

Converter USB-UART (TTL) - PL2303 - USB A plug - version V2 - Waveshare 20265.

Converter technical specification

  • Module type: converter
  • Conversion type: USB A - UART TTL
  • Built-in chip: PL2303GS
  • USB interface voltage: 5V
  • UART interface voltage: 1.8V / 2.5V / 3.3V / 5V
  • 3x LEDs: TXD LED, RXD LED, POWER LED
  • System support: Windows XP / 7/8/10/11
  • Operating temperature range: from –40 ° C to 85 ° C
  • Module dimensions: 48.26 x 16.51 mm
Converter - chip PL2303
Converter - Socket USB
Converter - Interface UART
Package width 11 cm
Package height 7 cm
Package depth 1.5 cm
Package weight 0.011 kg
