Product description: Extruder for the Elegoo Neptune 4 3D printer
The Elegoo pre-assembled extruder for the Neptune 4 is the ideal solution for users seeking high precision and reliability in 3D printing. The kit includes all the necessary components —from a dual extruder with a 5.2:1 gear ratio, to an extended hotend kit with a nozzle rated for 300°C, and a complete cooling system with dual fans. Thanks to the use of a copper and titanium heat pipe , the kit guarantees efficient heat dissipation and minimizes the risk of nozzle clogging. The kit is distinguished by its simple assembly and low weight—just 75% of the weight of the Neptune 3 Pro extruder—translating to smoother operation and better print quality.

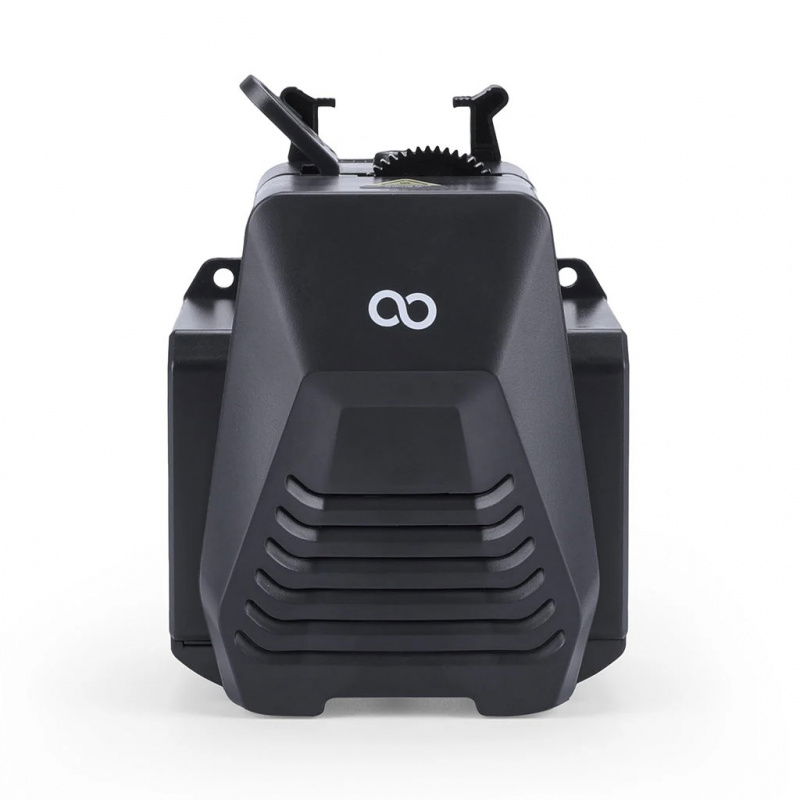

Extruder for the Elegoo Neptune 4 3D printer.
Dual direct drive extruder with a 5.2:1 gear ratio.
Main features of the extruder
- Complete assembly kit: includes extruder, hotend kit with PTFE tube and bi-metal heat pipe, gear box and fan kit
- Dual-gear direct drive: precise filament feeding thanks to a 5.2:1 gear ratio and stainless steel teeth
- Bi-metal heat pipe: a combination of copper and titanium for excellent heat conduction and reduced heat creep
- Nozzle up to 300°C: allows printing with advanced filaments such as nylon, ABS, TPU, PETG and PLA
- Dual Cooling Fans: Two 4015 ball-bearing fans provide efficient cooling
- Easy assembly: the kit includes screws and instructions, allowing for quick installation
- Lighter weight: weighs only 75% of the Neptune 3 Pro extruder, reducing the load on the X-axis
Practical applications
The Elegoo Neptune 4 extruder kit is suitable for both home and semi-professional use. Thanks to its high-temperature nozzle and efficient cooling, it enables precise printing of technical components from demanding materials such as nylon , ABS , and TPU . You can count on smooth filament feeding and high-quality details , even during high-speed printing. Ideal for printer upgrades or replacing a worn extruder.
The nozzle allows you to print with PLA, PETG, ABS, TPU, as well as high-temperature filaments such as nylon.
The included screws ensure easy installation of the extruder.
Technical specifications of the extruder
- Compatibility: Elegoo Neptune 4
- Extruder type: Dual direct drive
- Gear ratio: 5.2:1
- Gear material: stainless steel
- Operating temperature range: up to 300°C
- Nozzle: Extended, High Temperature
- Heat pipe: bi-metal (copper + titanium)
- Cooling system: 2x 4015 ball-bearing fans
Contents of the set
- 1x Assembled extruder for Elegoo Neptune 4 3D printer
- 1x Set of mounting screws
