Product description: M5Atom JoyStick - programmable joystick with AtomS3 development module - M5Stack K137
The M5Atom JoyStick by M5Stack is a versatile, programmable dual joystick controller designed for advanced projects such as drone and robot control. Its main control element is the AtomS3 , which works with an STM32F030F4P6 microcontroller, providing stable operation and precise control. Each joystick is equipped with Hall sensors , which ensures high accuracy and durability. The controller also has two function buttons and WS2812 RGB LEDs , which offer informative backlighting and aesthetic lighting effects. The device is equipped with dual high-voltage battery charging circuits , which allows for long-term use. The M5Atom JoyStick comes with pre-installed M5Stamp Fly control software and communicates with it via the ESP-NOW protocol. The software source code is open, allowing you to customize and extend the functions according to your own needs.
Also check out the user guide prepared by the manufacturer!

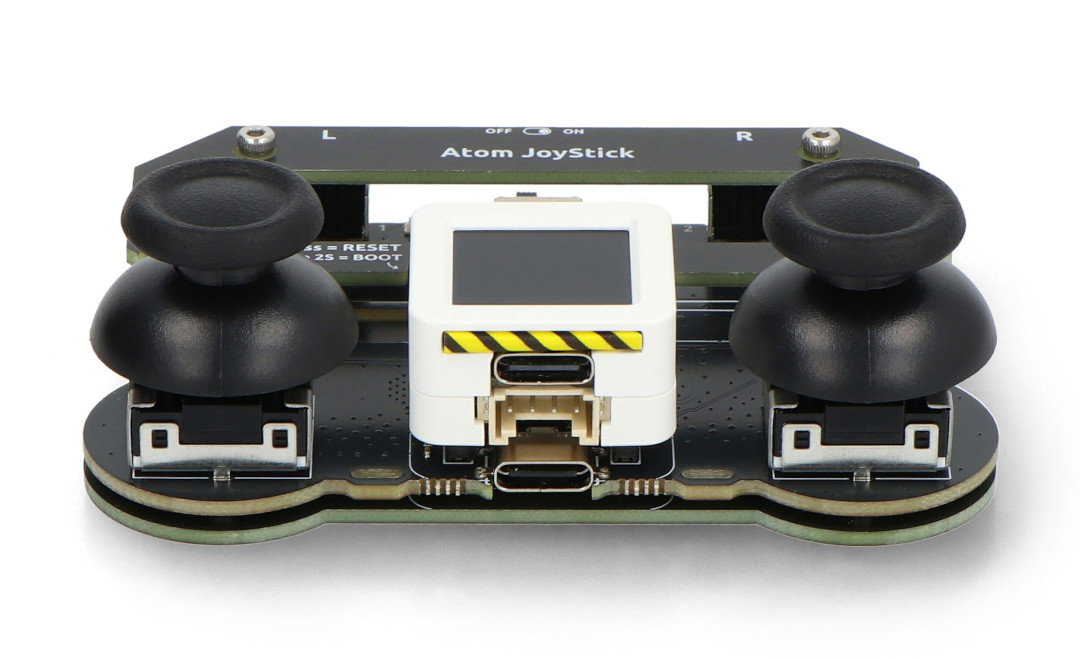

M5Atom JoyStick - programmable joystick with AtomS3 development module - M5Stack K137.

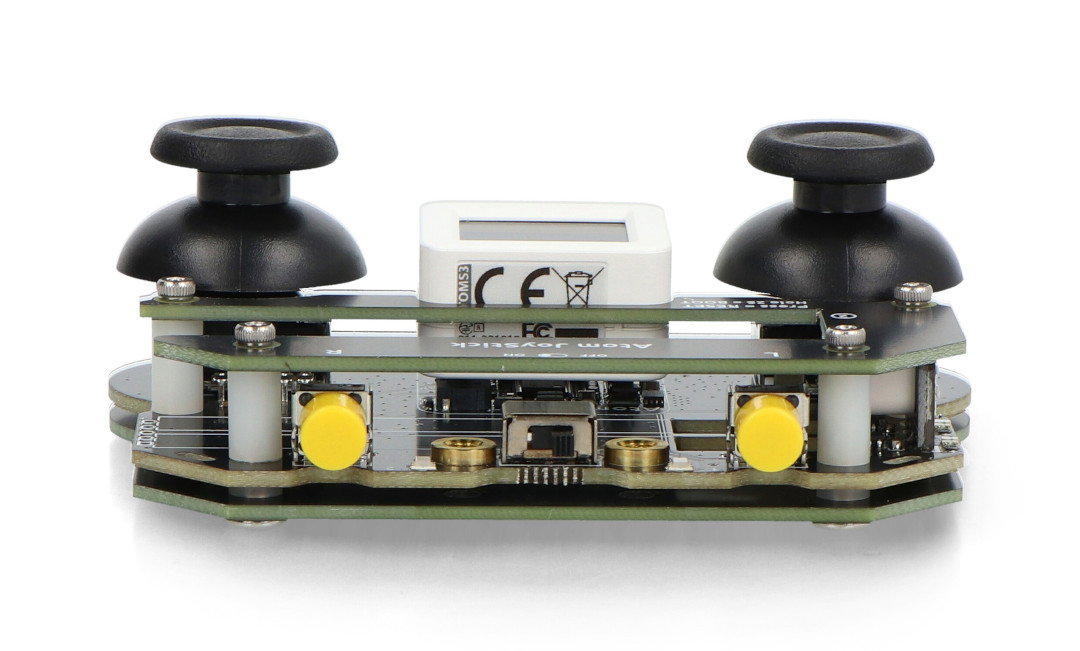

Controller equipped with two 5-way joysticks with Hall sensors.
Special Features of the M5Atom JoyStick
- Two 5-way joysticks with Hall sensors for precise control.
- AtomS3 main controller for advanced operation and programming.
- STM32F030F4P6 microcontroller supporting collaborative functions and fast data processing.
- Built-in WS2812 RGB LEDs that provide status indication and user interaction.
- Dual high voltage battery charging circuits for long-term use.
- Two function buttons and a switch that offer additional control options.
- Integrated passive buzzer, allowing for audible signaling.
- Pre-installed Stamp Fly software with the ability to communicate via the ESP-NOW protocol.
- Open source code, allowing you to customize and extend the functionality to suit your needs.
- Compatible with Atom Lite, Atom Matrix, AtomS3 Lite, AtomS3.
Check also other M5Stack modules available in our offer!
Controller Applications
- Drone Control : Precisely control and maneuver your drones .
- Robot Control : Ability to remotely control robots.
- Smart cars : managing smart cars.
- DIY Projects : Perfect for a variety of technology and electronics projects.
The JoyStick comes pre-loaded with Stamp Fly firmware.
Items included in the set.
M5Atom JoyStick Technical Specifications
- Series: M5Atom
- Model: M5Atom JoyStick
- Microcontroller: STM32F030F4P6
- RGB diodes: WS2812C
- Charging Circuit: TP4067 @ 4.35V
- Battery: 300mAh
- Charging current: 5V DC /430mA
- Charging time: about 55 minutes (at 5V/1A)
- Battery voltage: 4.35 V
- Buttons: left/right button
- Buzzer: Built-in passive buzzer at 5020 Hz
- Operating temperature: 0°C to 40°C
- Dimensions: 84 x 60 x 31.5 mm
- Weight: 63.5 g

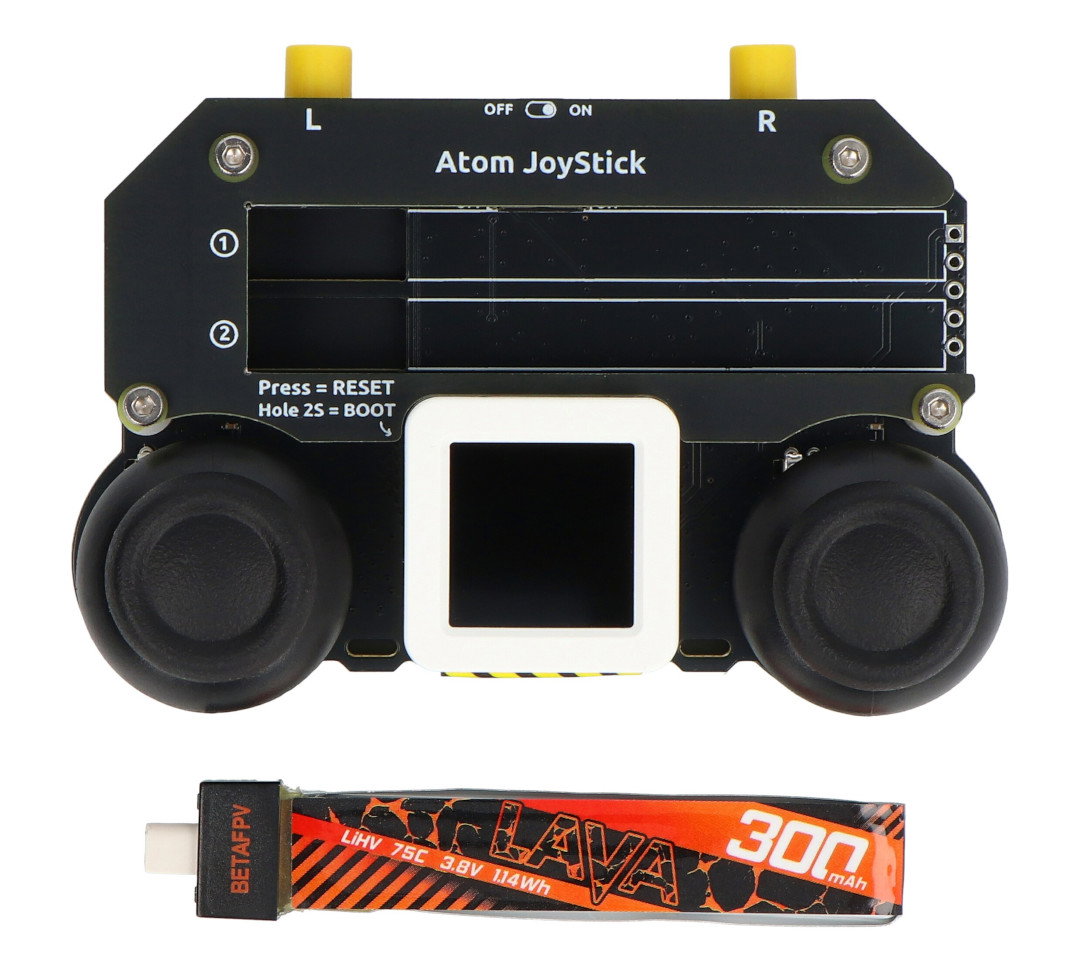

Contents of the set
- 1x Atom Joystick
- 1x 300mAh high voltage lithium-ion battery
