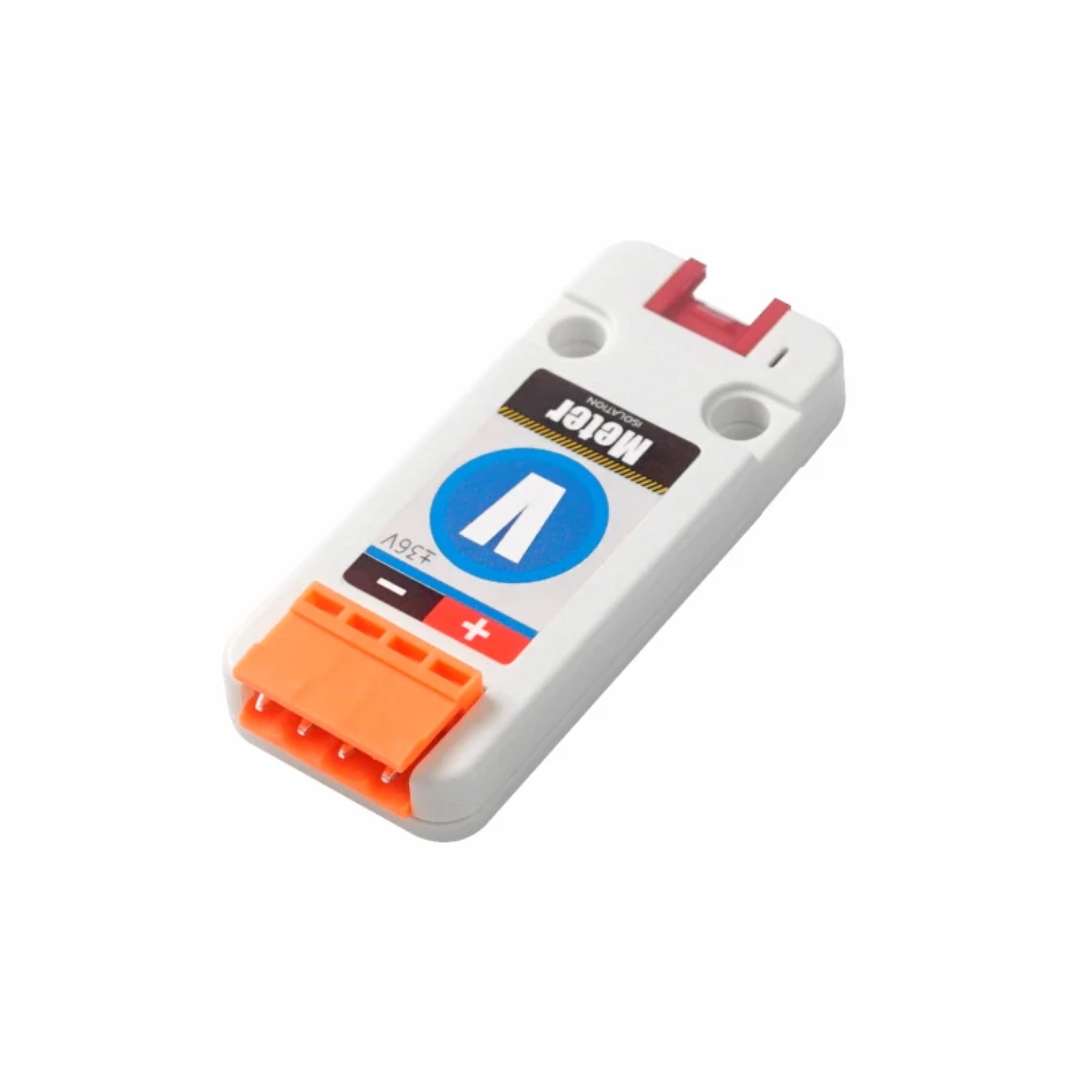

- zdjęcie 1

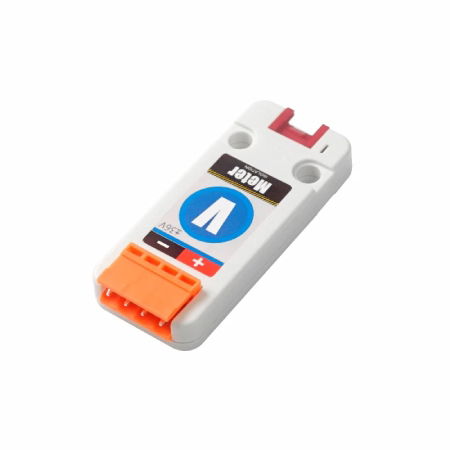

- zdjęcie 2

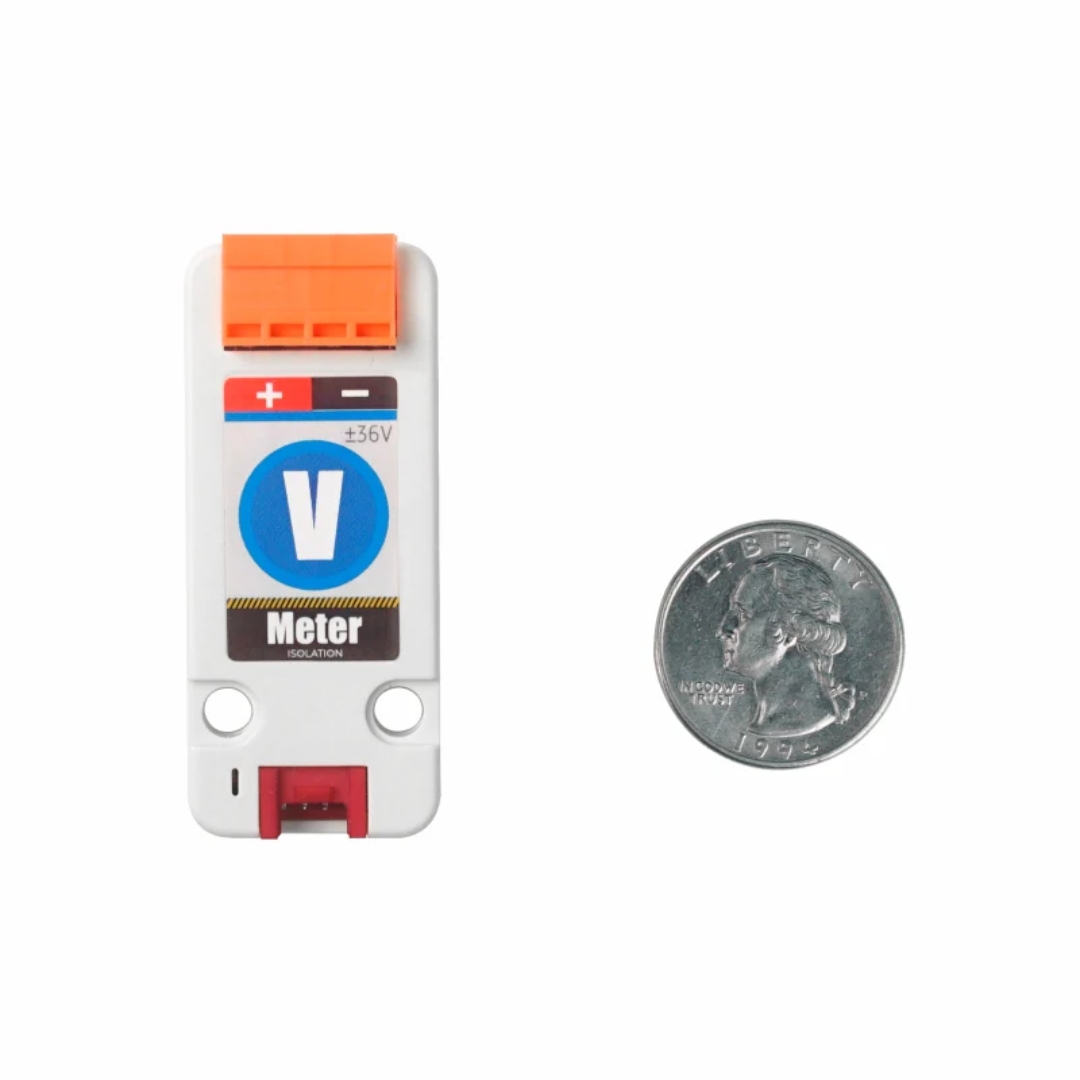

- zdjęcie 3

ADS1115 Voltmeter - Unit Expansion Module - M5Stack U087

Index: MSS-27082 EAN: 6972934172440
5
(1)
Ask a question
The M5Stack voltmeter is a compact and reliable voltage measurement module with a built-in 16-bit ADS1115 converter that communicates via I2C (address 0x49). Thanks to its isolated DC-DC power supply and CA-IS3020S isolator, the module protects against interference and surges that could damage sensitive circuits. Each unit is factory calibrated to an initial accuracy of 0.1% FS ±1 count, ensuring reliable and repeatable results.
ADS1115 Voltmeter - Unit Expansion Module - M5Stack U087
€22.00
€18.49 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: M5Stack

‌

Product description: ADS1115 Voltmeter - Unit expansion module - M5Stack U087

The M5Stack voltmeter is a compact and reliable voltage measurement module with a built-in 16-bit ADS1115 converter communicating via I2C (address 0x49). Thanks to its isolated DC-DC power supply and CA-IS3020S isolator, the module protects against interference and surges that could damage sensitive circuits. Each unit is factory calibrated to an initial accuracy of 0.1% FS ±1 count, ensuring reliable and repeatable results. The module supports auto-ranging and a resolution of 1 mV (for voltages ≤ 16 V) or 7.9 mV (for voltages > 16 V). Thanks to its compact size, compatibility with Arduino and UIFlow platforms, and compatibility with LEGO systems , the module is ideal for prototyping, electronics testing, and voltage monitoring in educational and professional projects.

ADS1115 voltmeter - Unit expansion module - M5Stack U087k.
The voltmeter from M5Stack is a compact and reliable voltage measurement module.

Special features

  • Voltage measurement in the range of ±36 V
  • LED indicating power supply presence
  • High-precision 16-bit ADS1115 converter with automatic ranging
  • Factory Accuracy: 0.1% FS ±1 count
  • Electrical isolation using DC-DC power supply and CA-IS3020S isolator
  • Surge resistance up to 1000 VRMS
  • Compatible with Arduino and UIFlow platforms
  • Two mounting holes adapted to the LEGO system

Practical applications

  • Voltage measurement in electronic systems and prototypes
  • Voltage monitoring for DIY and educational projects
  • Integration with Arduino and control systems for automation and robotics
  • Safe measurement in systems with potential overvoltages or interference

Technical specifications of the module

  • Resolution: automatic mode for voltages ≤ 16 V: 1 mV; for voltages > 16 V: 7.9 mV
  • Measurement range: ±36 V
  • Initial accuracy: 0.1% FS ±1 count
  • Interface: I2C (0x49)
  • Dimensions: 65 x 24 x 8 mm
  • Weight: 9g

Contents of the set

  • 1x Voltmeter
  • 1x Grove Cable
Each unit is factory calibrated to an initial accuracy of 0.1% FS ±1 count, ensuring reliable and repeatable results.

Package width 9 cm
Package height 13.5 cm
Package depth 1 cm
Package weight 0.017 kg
Send us your question

Be the first to ask a question about this product!

Product reviews

ADS1115 Voltmeter - Unit Expansion Module - M5Stack U087

5/5

Average grade

1

Customers opinion
The following opinions are collected
and verified by
an external partner Trustmate
and come from the post-purchase process.
Radosław 24.01.2026 Confirmed purchase Translated review
The M5Stack Unit ADS1115 (U087) module is one of the most useful additions in the M5Stack ecosystem when you need precision that standard ESP32 pins simply can't provide. Here is a detailed evaluation of this voltmeter: Why do you need it? (Main advantage) The standard ADCs built into the ESP32 (which you will find in the M5Stick or CoreS3) have two major drawbacks: they are non-linear and have a low resolution (12-bit). ADS1115 solves both of these problems. 16-bit resolution: Detects extremely small voltage changes. I2C interface: You don't waste analog pins; communication is done digitally through the port of Grove. Key features and capabilities 4 Input Channels: You can measure four independent voltages (Single-Ended) or two differential voltages (Differential). Differential measurements are crucial for highly sensitive sensors, such as strain gauge bridges. Built-in Amplifier (PGA): This is a "killer feature". You can programmatically amplify a weak signal (up to ±0.256V), allowing you to directly measure very small voltages without external op-amps. Programmable Sample Rate: 8 to 860 samples per second (SPS).
