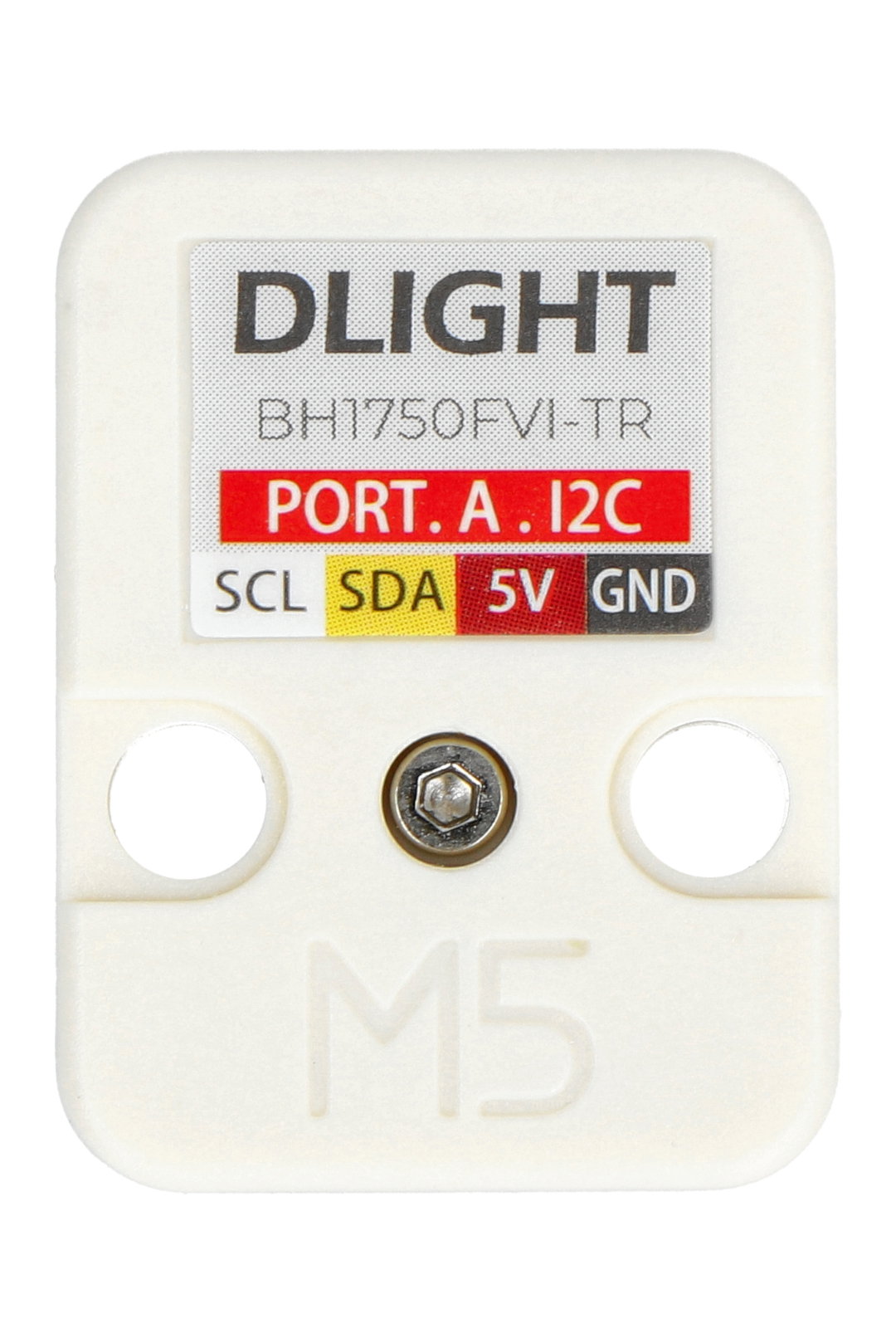

Product description: DLIGHT ambient light sensor - BH1750FVI-TR - Unit expansion module for M5Stack development modules
Digital ambient light sensor in the form of a Unit type expansion module. The sensor was manufactured by the M5Stack company and equipped with the BH1750FVI-TR system that enables the measurement of light intensity in the range from 1 lux to 65,535 lux . It can be used to work in various lighting conditions, also in a room with incandescent lighting, where the main source of light is a fluorescent bulb, halogen, white LED diode or standard sunlight . The module is characterized by a compact size and low energy consumption.

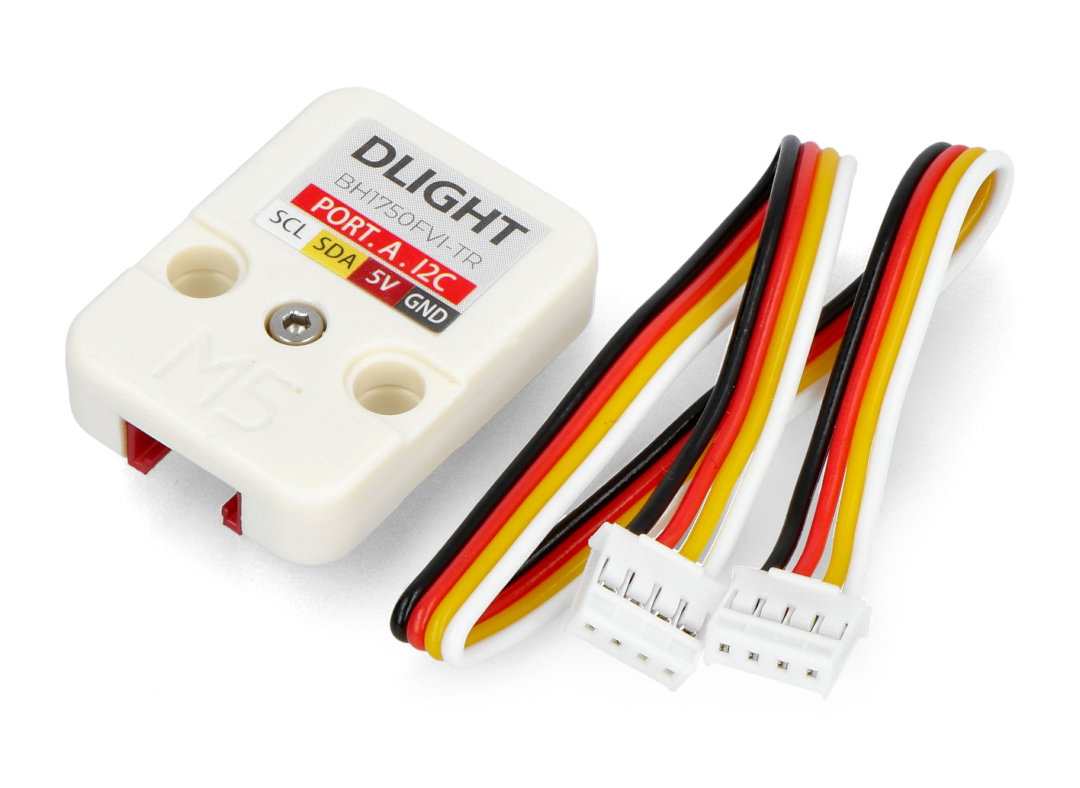

The kit also includes a connection cable with a Grove connector.
DLIGHT ambient light sensor - BH1750FVI-TR - Unit expansion module for M5Stack development modules.
DLIGHT - Light sensor what is it?
The light sensor is responsible for measuring the level of light intensity in a given environment. The value of such intensity is expressed in the Lux unit. Most often, we can meet a light sensor in the phone, which automatically adjusts the screen brightness to the needs of the current environment.
You don't know how to connect the light sensor? With the Unit module you can do it quickly and easily - just plug the included cable into the only socket in the module.
Suggested use
- Smart factory
- Home automation
- Ambient light intensity detection scenario
Technical specification of the sensor
- Type: Ambient Light Intensity Sensor
- Built-in chip: BH1750FVI-TR
- Measurement range: from 1 lux to 65535 lux
- Typical peak wavelength: 560 nm
- Communication interface: I2C bus
- Interface address: 0x23
- Average current consumption: 143 uA
- ADC converter: 16-bit
- Module dimensions: 32 x 24 x 8 mm
- Module weight: 4.8 g
Kit contents
- Ambient light sensor - BH1750FVI-TR - Unit expansion module for development modules - M5Stack U136
- Connecting cable with a Grove connector

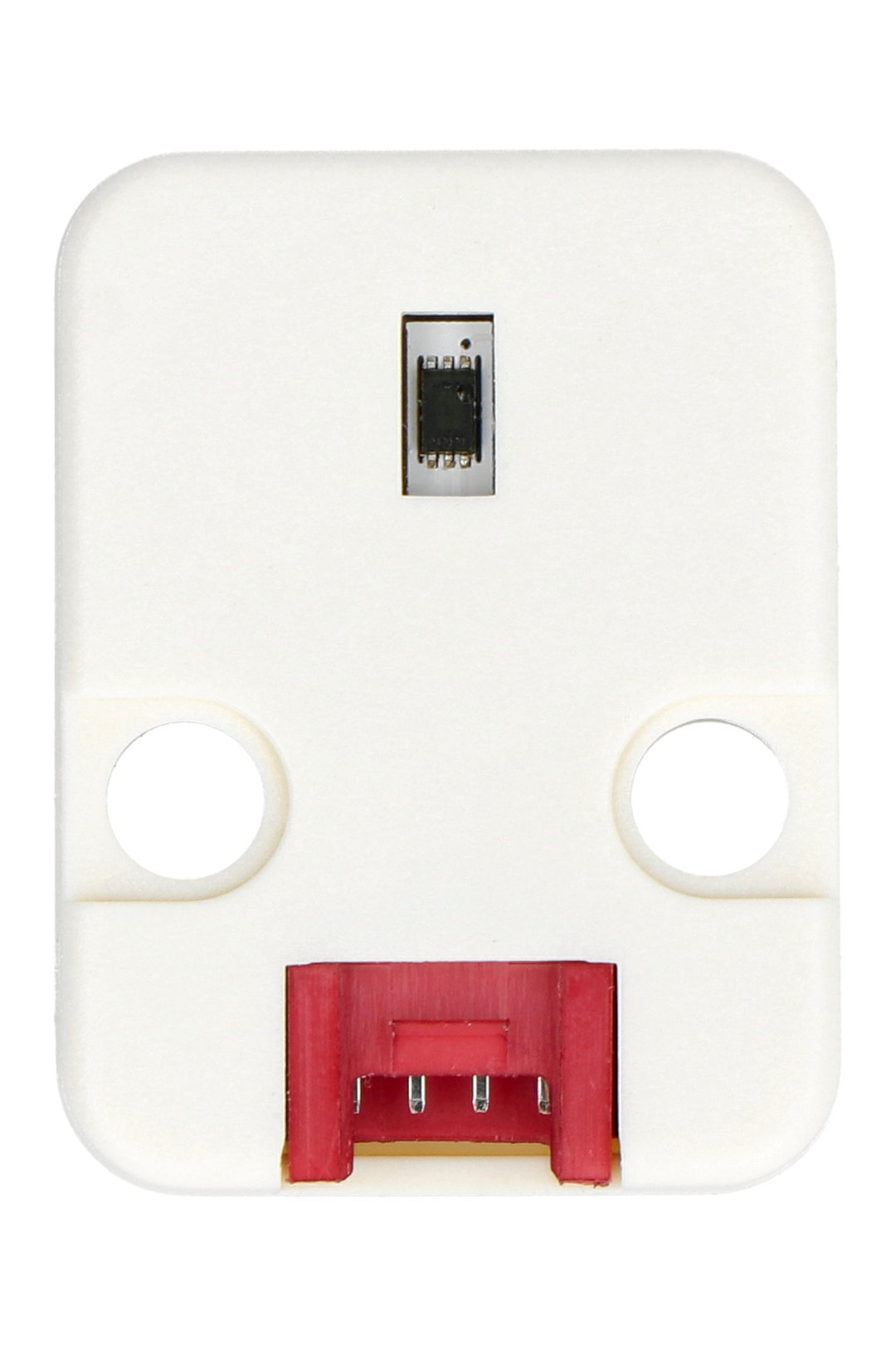

The module has two mounting holes.
