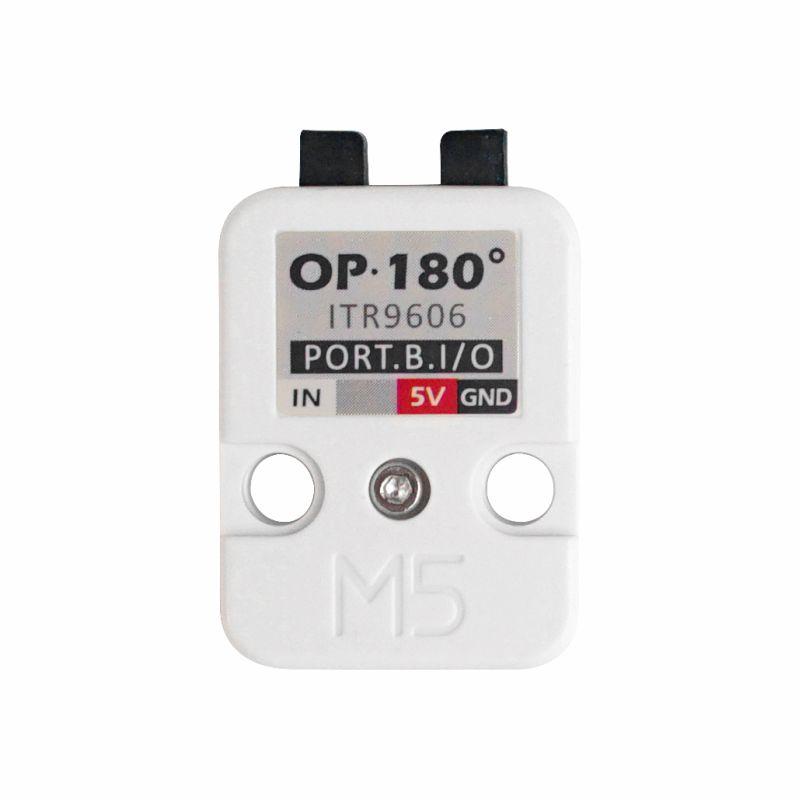

Infrared slot sensor 180° ITR9606 - Unit expansion module for development modules M5Stack
Unit type module compatible with M5Stack series development products, in the form of slot sensor with OP.180 orientation. Device based on ITR9606 chip. It consists of an infrared emitting diode and silicon phototransistor. The module works on a similar principle as the beam interruption sensor.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 180° slot sensor ITR9606 - Unit extension module for M5Stack development modules
Unit type module compatible withM5Stackseries development products, in the form ofslot sensorwithOP.180orientation. Device based onITR9606chip. It consists of aninfraredemitting diode and siliconphototransistor. The module works on a similar principle as the beam interruption sensor.
Slit sensor in the form of a Unit module for M5Stack series.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Module using infrared IR technology.
The principle of operation of the module
The module's interior consists of two IR parts: the transmitter and receiver sides. The role of the receiver in this case is played by a silicon phototransistor. The transmitter sends infrared waves, while the receiver is to detect them. Infrared is emitted directly - the signal reaches the receiver without problems if there is no object between the receiver and the transmitter. An electrical field interruption is detected in a similar way.
Suggested use of a slot sensor
- Machine controller
- Mouse Copier
- Non-contact switch
- Control system component
- Safety interlock
Technical specification of the sensor
- System: ITR9606
- Orientation: 180°
- Arrangement: vertical
- Technology: IR
- High sensitivity
- Fast response time

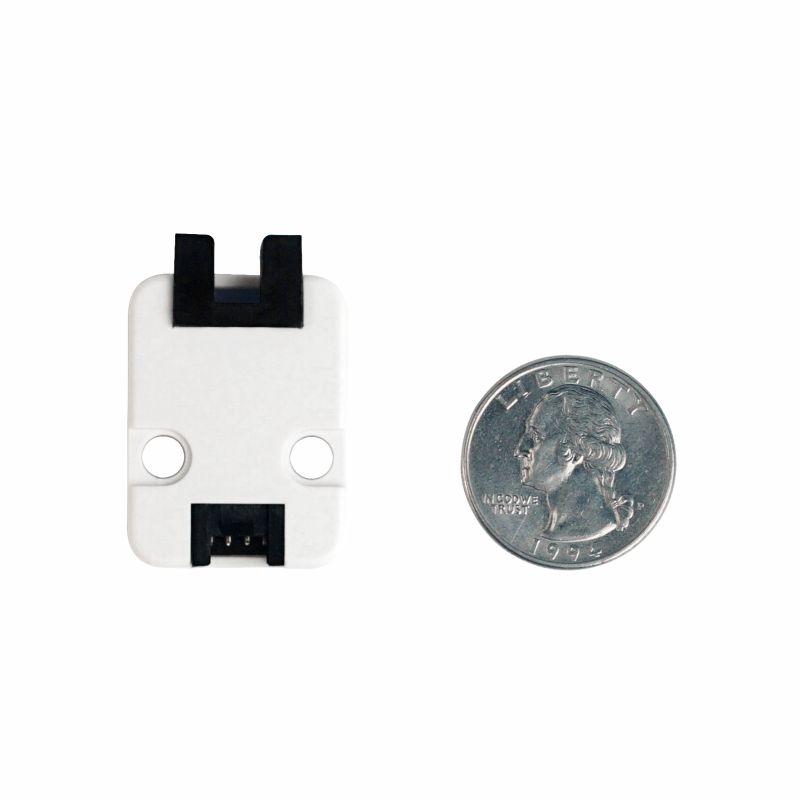

- Dimensions: 35 x 24 x 8 mm
- Weight: 4 g

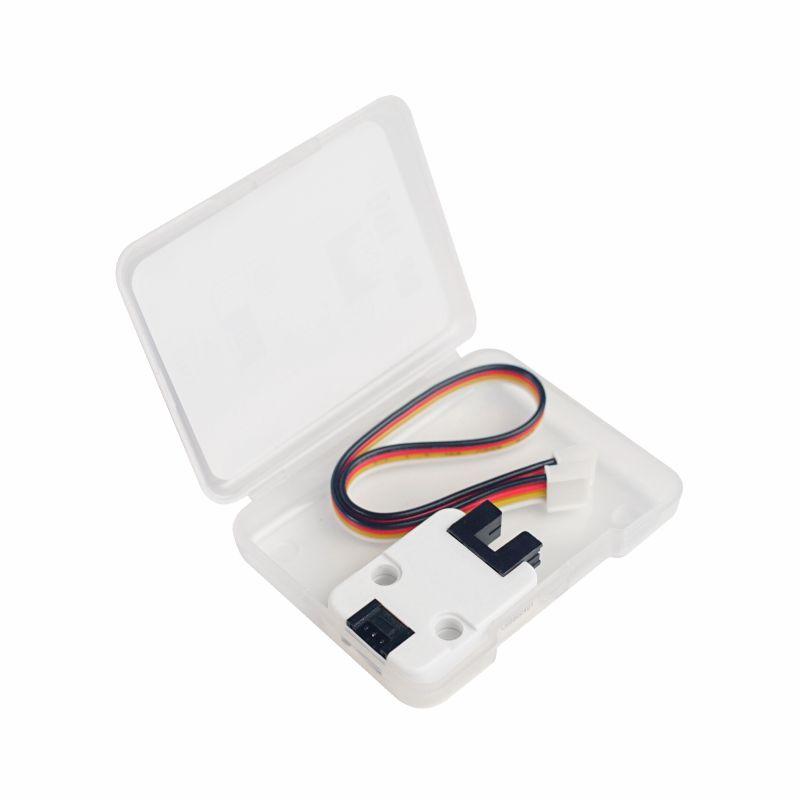

Set contents
- 180° slot sensor module
- Connecting cable Grove
The kit includes a Unit Unit and Grove connection cable.
Useful links
| Name | Value |
|---|---|
| Width | 5.5 cm |
| Height | 1.5 cm |
| Depth | 7 cm |
| Weight | 0.017 kg |
