Product description: Kmeter Unit - temperature sensor with thermocouple - MAX31855 - Unit expansion module for M5Stack development modules
The Kmeter Isolation Unit is an integrated K-type thermocouple sensor that combines the functions of acquisition, isolation and communication. It uses the STM32F030 chip and the MAX31855KASA+T 14-bit digital thermocouple conversion chip for precise temperature measurement and conversion. The STM32F030-based MCU supports data acquisition and I2C communication interface. The CA-IS3641HW signal isolator is used for signal isolation. The device enables the use of thermocouple probes with a measurement range from -200°C to 1350°C , using a standard K-type interface. This module is used in temperature data collection, control and monitoring.
Kmeter Unit - temperature sensor with thermocouple - MAX31855 - Unit expansion module for M5Stack development modules.
The Kmeter Isolation Unit is an integrated K-type thermocouple sensor.Special features of the module
- High-performance ARM Cortex-M0 STM32F030 core with I2C firmware update support
- MAX31855KASA+T thermocouple digital processing system with a resolution of 0.25°C and an accuracy of ±2%
- Support for K-type probes with a measurement range from -200°C to 1350°C
- I2C communication interface address: 0x66
- Signal isolation to improve stability, security and reliability
- Compatibility with Arduino and UIFlow programming platforms
Set contents
- 1x Kmeter Isolation Unit
- 1x K-type thermocouple probe (measuring range from -50°C to 250°C, cable length 1 m)
- 1x HY2.0-4P cable (20 cm)
Technical Specifications
- Manufacturer: M5Stack
- Model: U133-V11
- Microcontroller: STM32F030, ARM Cortex-M0, 48 MHz,
- Flash Memory: 64K
- SRAM Memory: 4K
- Temperature sensor system: MAX31855KASA+T
- Signal isolation chip: CA-IS3641HW
- Resolution: 14-bit
- Thermocouple operating temperature range: -200-1350°C
- Thermocouple type: K
- Maximum sampling rate: 10 Hz
- SPI interface clock frequency range: Up to 5 MHz
- Measurement accuracy: ±2°C
- Dimensions: 56 mm x 24 mm x 9.6 mm
- Weight: 10.1 g

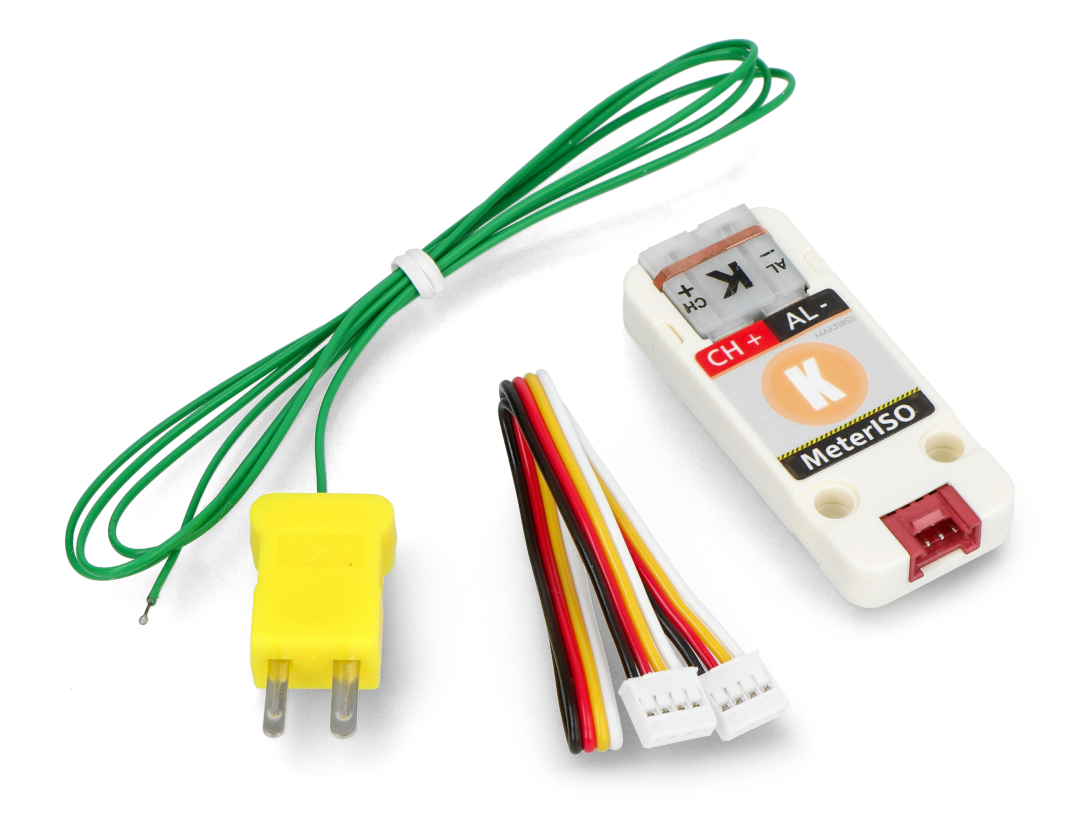

It uses the STM32F030 chip and the MAX31855KASA+T 14-bit digital thermocouple conversion chip for precise temperature measurement and conversion. Useful links |
