Product description: Refletive IR - infrared receiver with LM393 comparator - Unit expansion module - M5Stack U175
Reflective IR Unit is an infrared sensor module that, thanks to IR technology, can accurately detect reflected light from various objects. The module generates the appropriate voltage value based on the intensity of infrared signals reflected from obstacles. The integrated LM393 comparator circuit converts analog signals into reliable digital signals that can be easily processed. One of the key elements of Reflective IR is a digitally controlled LED indicator that enables quick and intuitive monitoring of the sensor's operating status, which is particularly useful in both laboratory and engineering projects. The module is also equipped with an adjustable 10k potentiometer that allows you to adjust the sensitivity and detection threshold, allowing you to optimize the operation of the receiver in various conditions and applications. This flexibility makes the Reflective IR Unit a versatile solution for applications requiring object detection, motion tracking, distance measurement and automation.
The manufacturer has prepared a user guide in which you will find, among others: sample program code and circuit diagram. Check!

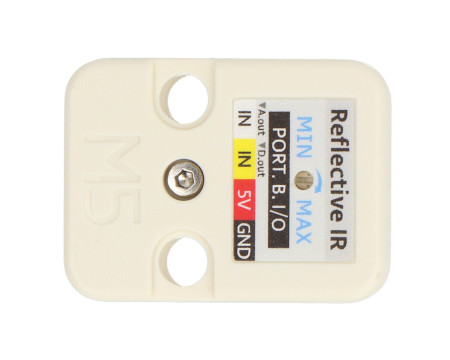

Refletive IR - infrared receiver with LM393 comparator - Unit expansion module - M5Stack U175.

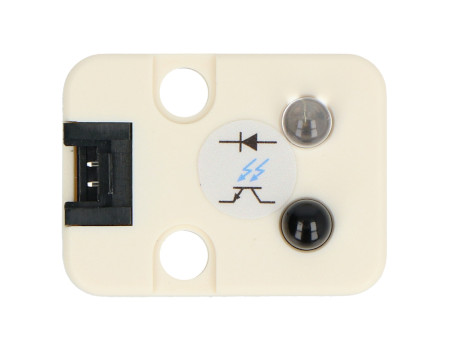

The module has a digitally controlled LED indicator.
Special features of the module
- Infrared detection technology: Advanced IR technology allows for efficient and precise detection of reflected infrared light from target objects.
- Analog signal output: thanks to the infrared receiver and a voltage divider with a 10k resistor, it generates the appropriate voltage value depending on the intensity of the infrared signal reflected by the obstacle.
- Digital Signal Output: The integrated LM393 comparator converts analog signals into reliable digital signals, making them easier to process in digital systems.
- LED indicator: A digitally controlled LED indicator enables intuitive monitoring of sensor detection status, allowing you to quickly assess system performance.
- Adjustable Potentiometer: Equipped with a 10k adjustable potentiometer, it allows you to optimize the sensor performance by adjusting the sensitivity and detection threshold to suit different conditions and application needs.
Technical specifications of the sensor
- Analog signal output range: 0 to 4096 (ESP32@12bit)
- Digital signal output: TTL
- Working voltage: 5V
- Operating temperature range: 0°C to 40°C
- Dimensions: 32 x 24 x 8 mm
- Weight: 5.2 g
Set contents
- 1x Refletive IR - IR receiver with LM393 comparator - Unit expansion module - M5Stack U175
- 1x connecting cable with Grove connector - 20 cm
- 1x screwdriver for potentiometer

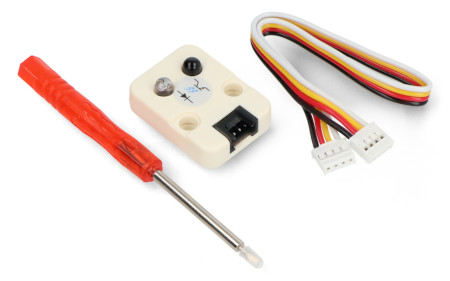

Elements included in the set.
