Product description: Hall sensor A3144E - M5Stack expansion module for development modules
Hall sensor in the form of a Unit-type extension module for theM5Stackdevelopment module series. Equipped with threesensorsbased onA3144Echip, which are internally integrated and processed by74HCseries logical ICs. The module enablesmagnetic fielddetection, is used in alarm projects (e.g. door opening alarm), as a proximity sensor and for speed determination.

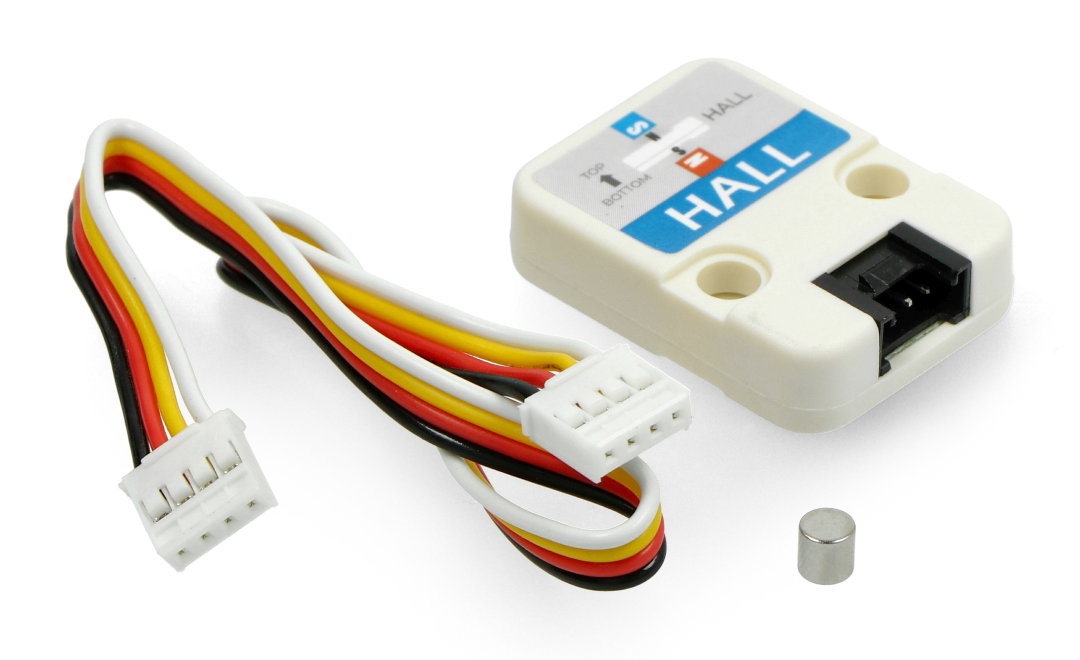

The kit includes a Hall sensor module, connection cable withGroveconnector and magnet.

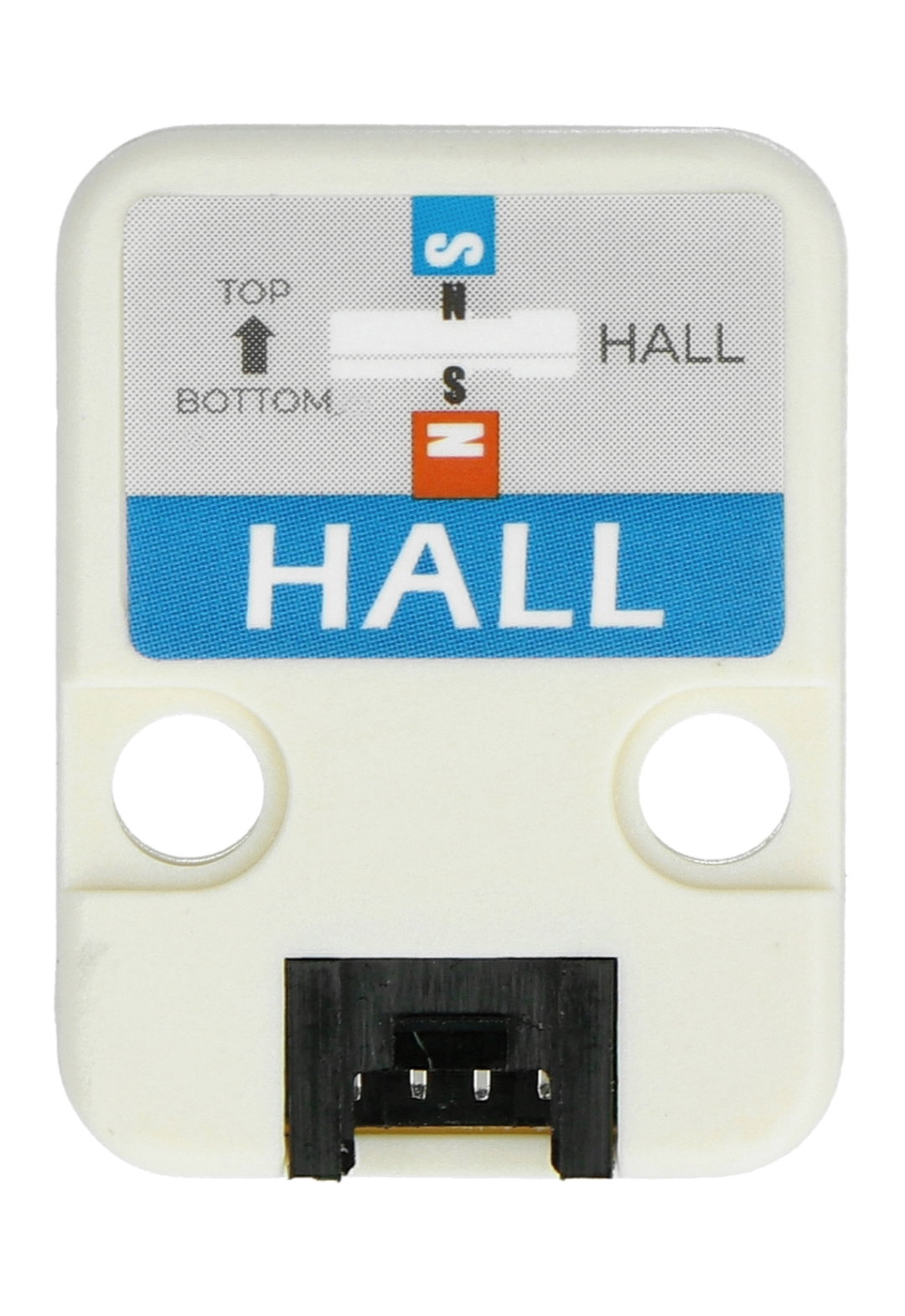

Hall sensor in the form of M5Stack Unit type module.
Suggested application of the sensor
The Hall sensor is characterized by fast response time and high measurement sensitivity. It is a single-pole device, which signals the user's status with a red LED. It is used, among others, as:
- Sensor - door opening alarm
- Magnetic field proximity detector
- Counter - advanced speed measurement
Technical specification of the module
- Hall sensor: A3144E x3
- Integrated logic: 74HC08D
- Status display: red LED
- Output level: active low state
- Supported development platforms: Arduino, UlFlow
- Lego compatible module
- Dimensions: 24 x 32 x 8 mm
- Weight: 4 g
