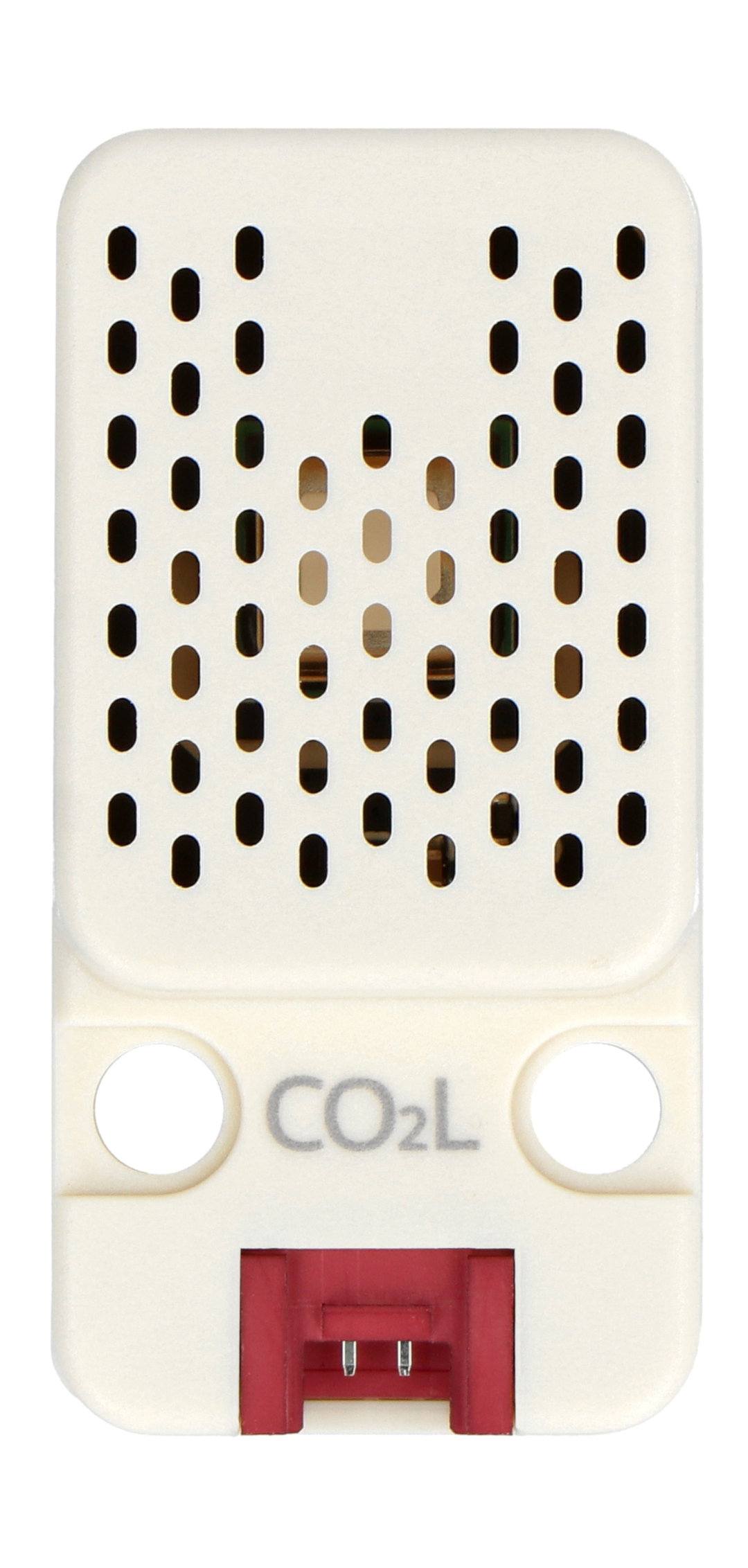

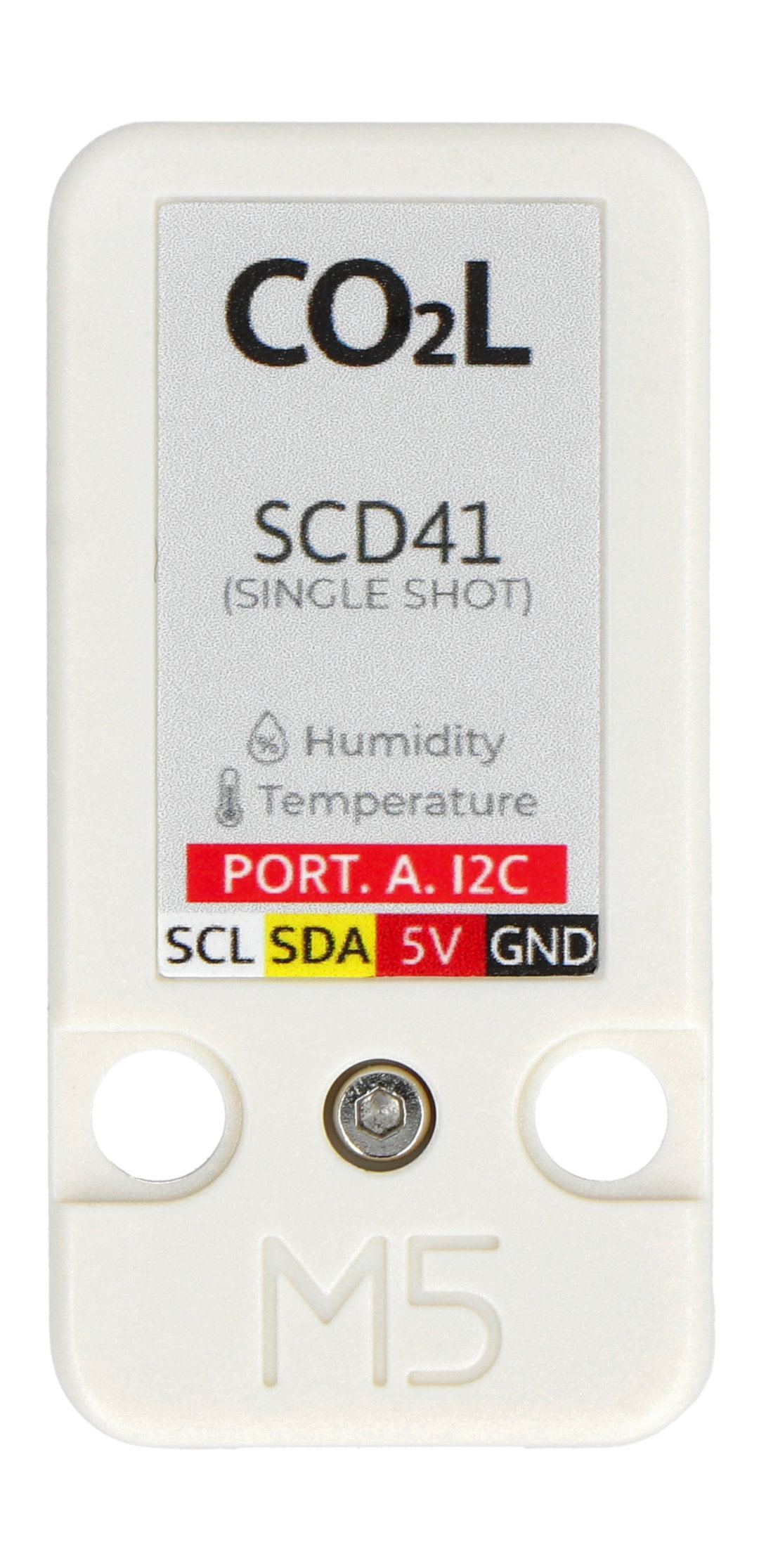

CO2L carbon dioxide, temperature and humidity sensor - SCD41 - Unit expansion module for M5Stack development modules
CO2L carbon dioxide , temperature and humidity sensor in the form of a Unit extension from M5Stack. The chip built into the module is SCD41 from Sensirion. The CO2 measurement range is from 400 ppm to 5000 ppm , with a CO2 sampling accuracy of ±(40 ppm + 5% of reading). Temperature measurement ranges from -10°C to 60°C and humidity from 0% to 95% RH.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Carbon dioxide CO2L, temperature and humidity sensor - SCD41 - Unit expansion module for M5Stack development modules
CO2L carbon dioxide,temperature andhumidity sensor in the form of a Unit extension from M5Stack . The chip built into the module is SCD41 from Sensirion. The CO2 measurement range is from 400 ppm to 5000 ppm , with a CO2 sampling accuracy of ±(40 ppm + 5% of reading). Temperature measurement ranges from -10°C to 60°C , and humidity from 0% to 95% relative humidity. It uses the I2C digital communication interface, with address 0x62 .
The manufacturer has also prepared a user's guide , in which you will find a diagram of the system and sample program codes - check it out!
Carbon dioxide sensor CO2L, temperature and humidity - SCD41 - Unit expansion module for M5Stack development modules.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
CO2L, temperature and humidity sensor.
Special features of the module
- Detection of CO2 gas concentration in the air
- Allows additional measurement of temperature and humidity
- It is energy-saving - it is characterized by low power consumption
- It has a built-in LDO voltage regulator 5 V -> 3.3 V
- Supported development environments Arduino, UIFlow (Blockly, Python)
- 2 LEGO compatible mounting holes
Suggested use of the sensor
- Indoor CO2 detection (office, school, hospital)
- Monitoring of temperature and humidity (in greenhouses, in private agriculture)
Sensor technical specification
- Built-in chip: SCD41 by Sensirion
- Measured value: carbon dioxide CO2L, temperature and humidity
- CO2 measurement:
- measuring range: from 400 ppm to 5000 ppm
- measurement accuracy: ±(40 ppm + 5% of reading)
- Temperature measurement: -10°C to 60°C
- Humidity measurement: 0% to 95% RH
- Communication interface: I2C
- I2C interface address: 0x62
- Dimensions: 48 x 24 x 16mm
- Weight: 7.4g

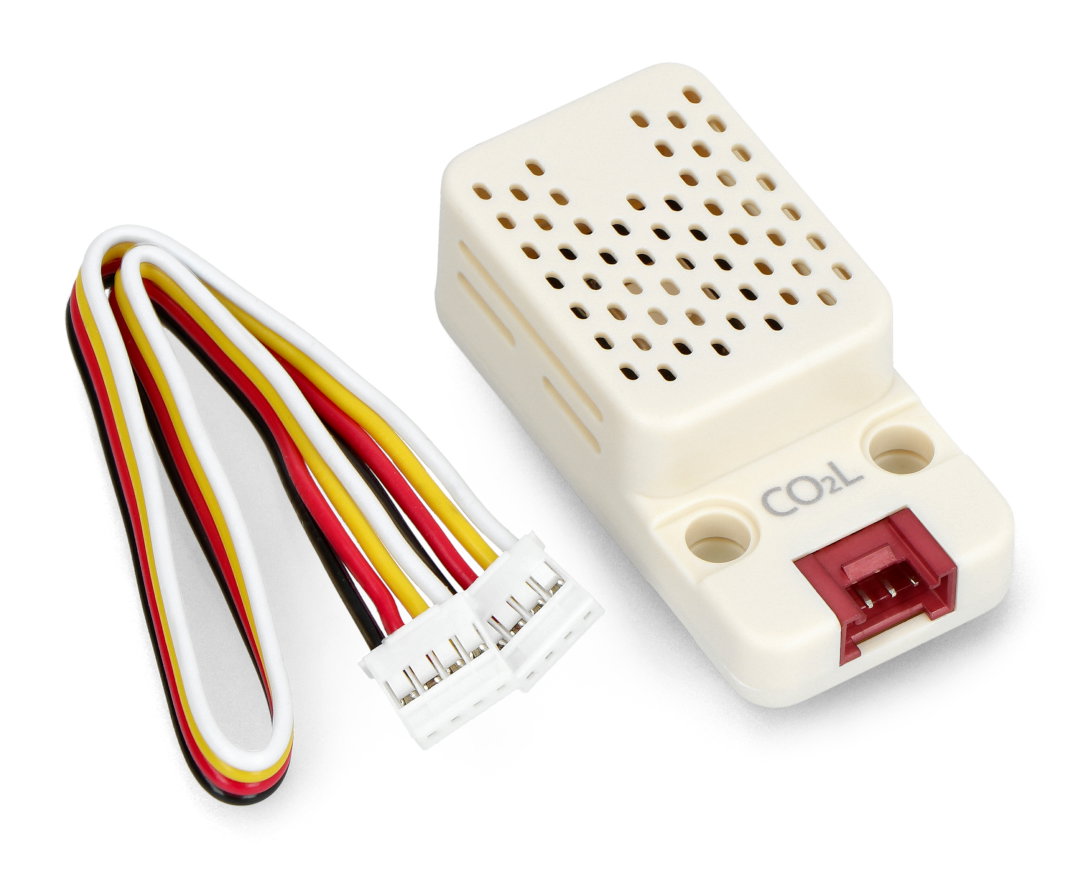

Kit contents
- Carbon dioxide sensor CO2L, temperature and humidity - SCD41 - Unit expansion module for M5Stack development modules
- Connection cable with Grove connector
Components included in the set.
Useful links
| Name | Value |
|---|---|
| Width | 9.4 cm |
| Height | 9.5 cm |
| Depth | 2 cm |
| Weight | 0.013 kg |
