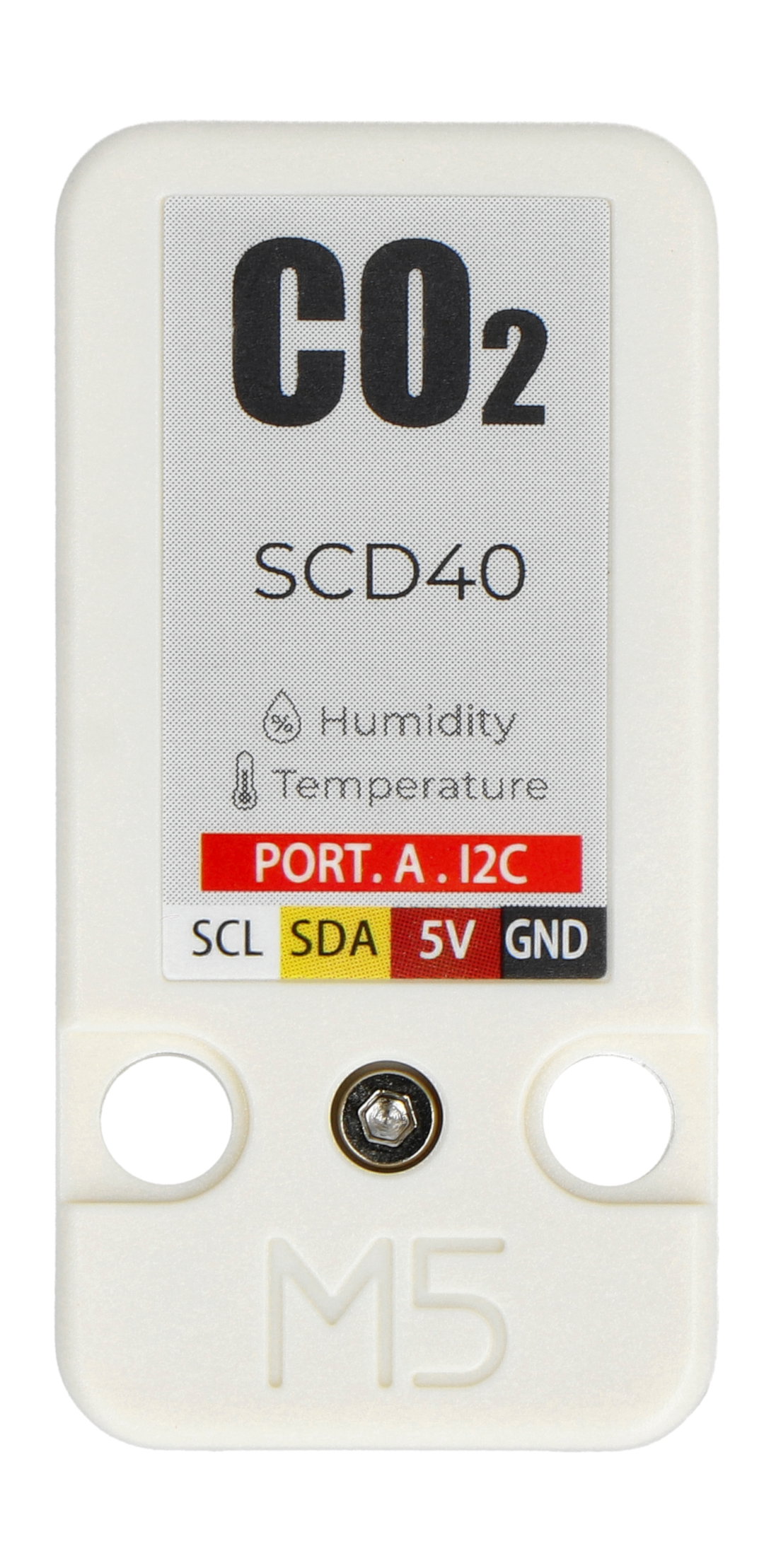

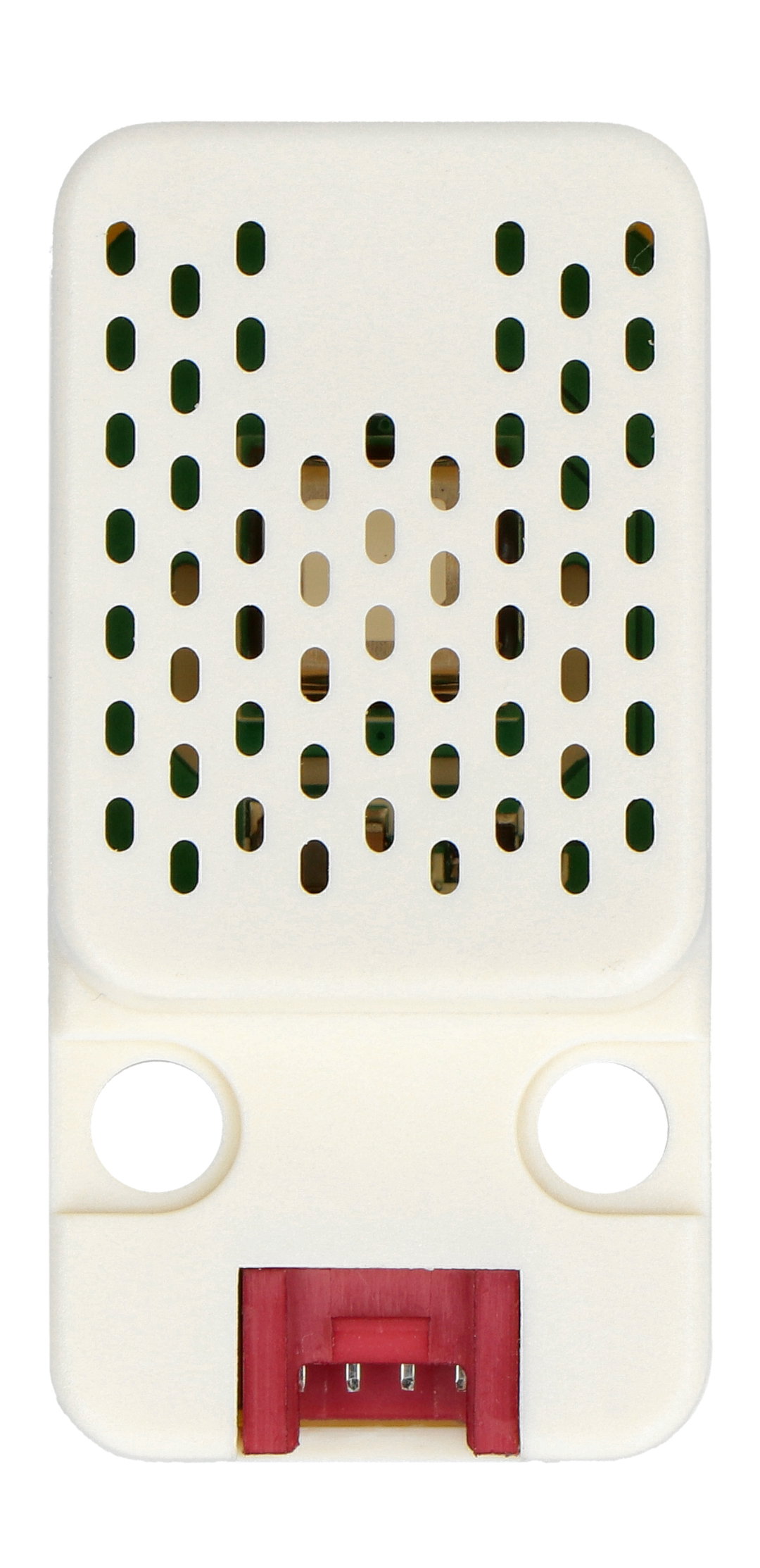

SCD40 temperature, humidity and carbon dioxide sensor - expansion module Unit for M5Stack developer modules - U103
High precision Sensirion SCD40 sensor in the form of a Unit type extension. Designed to measure temperature, humidity and CO2 concentration in the air. Temperature measurement range is from -10°C to 60°C, humidity from 0% to 95% RH, and CO2 from 400 ppm to 2000 ppm , with a measurement accuracy of ± 50 ppm + 5% . The module uses the I2C digital communication interface, with the address 0x62 .
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: SCD40 temperature, humidity and carbon dioxide sensor - Unit expansion module for M5Stack development modules - U103
High precision Sensirion SCD40 sensor in the form of a Unit type extension. Designed to measure temperature, humidity and CO2 concentration in the air. Temperature measurement range is from -10°C to 60°C, humidity from 0% to 95% RH, and CO2 from 400 ppm to 2000 ppm , with a measurement accuracy of ± 50 ppm + 5% . The module uses the I2C digital communication interface, with the address 0x62 .
The manufacturer has also prepared a user's guide , in which you will also find sample program code and a circuit diagram. Check!
Temperature, humidity and carbon dioxide sensor SCD40 - Unit expansion module for M5Stack development modules - U103.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Temperature, humidity and carbon dioxide sensor with Sensirion SCD40 system.
Sensor technical specification
- Built-in chip: Sensirion SCD40
- Measurement: temperature, humidity and carbon dioxide CO2
- Temperature measuring range: -10°C to 60°C
- Measurement accuracy: ± 0.8°C
- Humidity measuring range: 0% to 95% RH
- Measurement accuracy: ± 6%RH
- Carbon dioxide CO2 measurement range: 400 ppm to 2000 ppm
- Measurement accuracy: ± 50ppm + 5%
- Communication interface: I2C bus
- Communication interface address: 0x62
- Integrated 5V to 3.3V converter
- Dimensions: 48 x 24 x 16mm
- Module weight: 7.54 g
Suggested use
- Indoor air quality monitor - apartments, offices, classrooms
- A device that tests the effectiveness of ventilation systems
- Executive module in stations monitoring environmental conditions
Kit contents
- Unit module - SCD40 temperature, humidity and carbon dioxide sensor
- Connection cable with Grove connector - 20 cm long
In our offer you will also find other Unit type extensions for M5Stack development modules. We invite you to familiarize yourself with the available assortment.

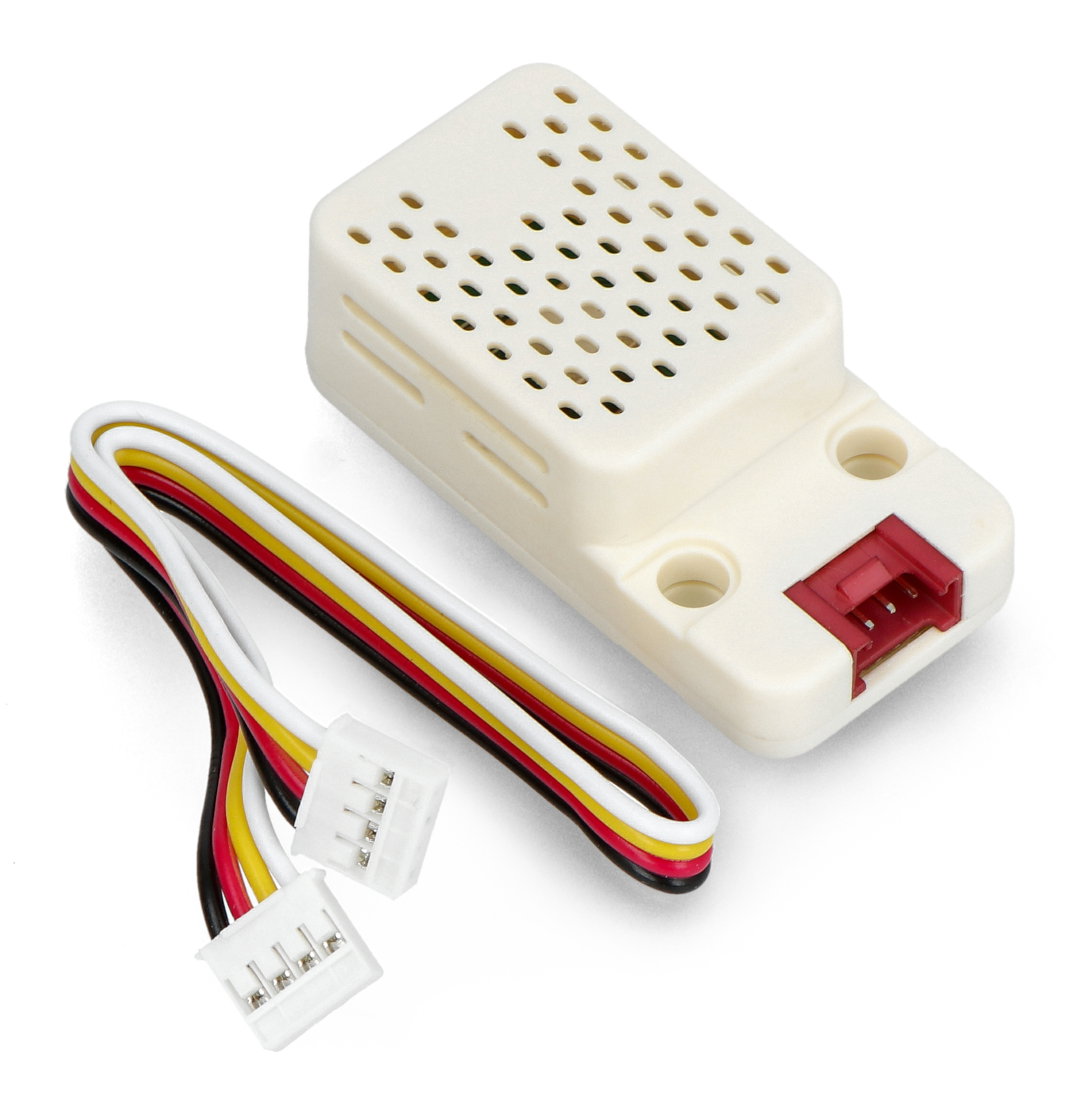

Components included in the set.
