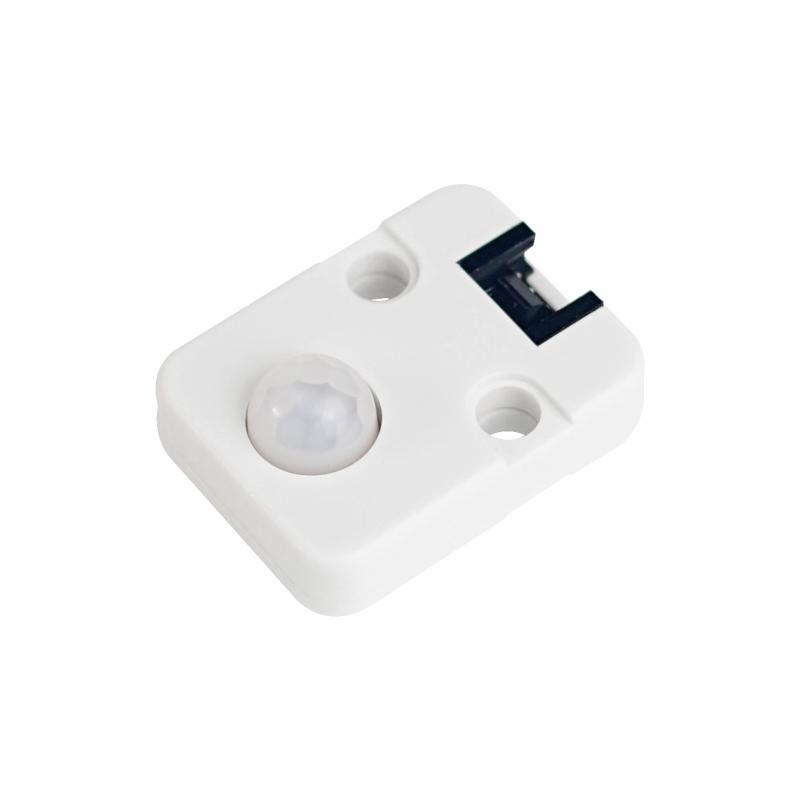

PIR Motion Sensor - Unit expansion module for development modules M5Stack
The PIR motion detector is a unit type module. It is compatible with the M5Stack series, which includes M5Atom, M5Stick and M5Stack Core modules. It is based on infrared technology: it detects infrared radiation emitted and reflected by human body or object. The measurement range of the PIR sensor is between 0 cm and 500 cm, with a detection angle of up to 100°. The M5Stack uses a Grove interface to communicate with the main unit of the M5Stack series. A Grove connection cable is included in the delivery.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: PIR motion detector - Unit extension module for M5Stack development modules
ThePIRmotion detectoris a unit type module. It iscompatible with theM5Stackseries, which includesM5Atom,M5StickandM5Stack Coremodules. It is based on infrared technology: it detects infrared radiation emitted and reflected by human body or object. The measurement range ofthePIRsensoris between0 cm and 500 cm, with a detection angle of up to100°. TheM5Stackuses aGroveinterface to communicate with the main unit ofthe M5Stack series. The kit includes a dedicatedGroveconnection cable.
The product is sold as cPIR motion detector - Unit type module for M5Stack series. TheM5Stackdevelopment module must be purchased separately.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.
Included with the PIR motion detector.
Technical specifications PIR motion detector - Unit for M5Stack series.
- Measurement range: from 0 cm to 500 cm
- Delayed: 2 s
- Detection range: < 100°
- Operating temperature: - 20°C to 80°C
- Communication interface: GROVE
- Programming platform: Arduino, UlFlow
- Dimensions: 32 x 24 x 12 mm
- Weight: 20 g

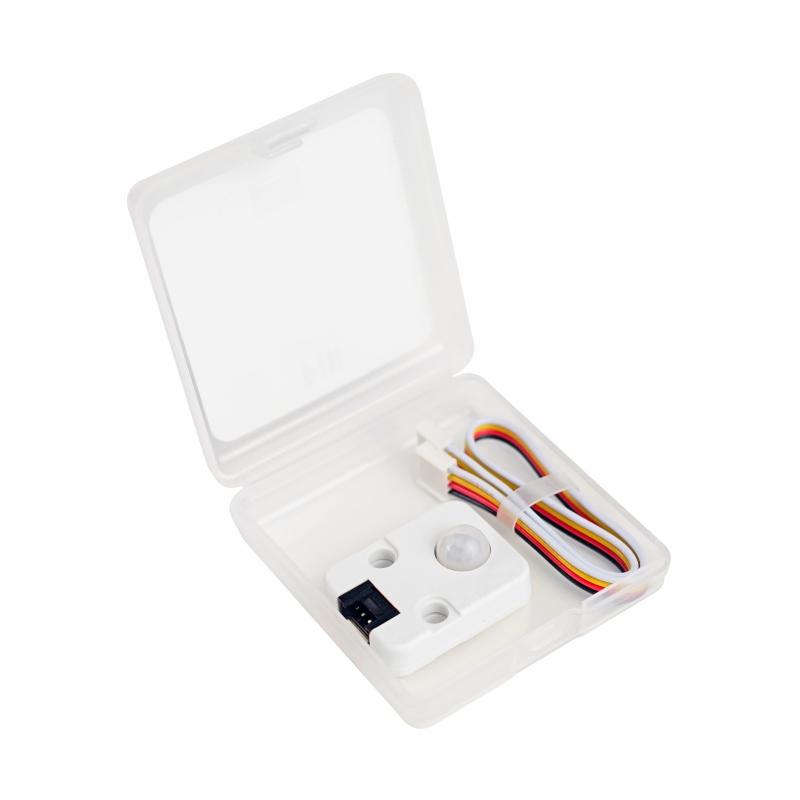

Set contents
- PIR motion detector - Unit type module
- Connecting cable type GROVE
TheM5Stackdevelopment module must be purchased separately.
Useful links
| Name | Value |
|---|---|
| Sensor - type | PIR |
| Sensor - distance to | 500 cm |
| Sensor - distance from | 0 cm |
| Width | 6 cm |
| Height | 2 cm |
| Depth | 6 cm |
| Weight | 0.019 kg |
GLS
Shipping in 24 hours
from €8.07
Raben - pallet delivery
Delivery in 3–5 days, no inside delivery
from €96.75
The full delivery terms are on the page Delivery and payment.
30 days to return, without giving a reason
If the product does not meet your expectations, you have 30 days from receiving the parcel to withdraw from the contract. The product only has to be complete. The right of return belongs to consumers (a purchase unrelated to business activity).
Complaints
If the product turns out to be faulty, you can make a claim under the guarantee or the statutory warranty. We handle claims without delay, at the latest within 14 working days of receiving the report together with the goods.
Question: Good day, can I connect this sensor to M5Atom Lite module via Grove connector HUB? I would like to connect two extensions to this controller: ENV IV Unit and this PIR sensor. I ask because this PIR sensor is not on I2C. HUB: https://botland.com.pl/moduly-unit-moduly-rozszerzen/18070-hub-zlacz-grove-modul-rozszerzen-unit-do-modulow-deweloperskich-m5stack-6972934170576.html Sensor: https://botland.com.pl/moduly-unit-czujniki/24050-env-iv-unit-czujnik-temperatury-wilgotnosci-i-cisnienia-sht40-bmp280-modul-rozszerzen-unit-m5stack-u001-d-6972934174796.html
