RCWL-9620 ultrasonic distance sensor - extension module for M5Stack development modules
Unit series ultrasonic distance sensor expansion module manufactured by M5Stack. The extension is compatible with the M5Stack Core, M5Atom and M5Stick development modules. The sensor is equipped with the RCWL-9620 chip, which can accurately measure the distance and detect an obstacle from 20 mm to 4500 mm, and the measurement is determined with an accuracy of about 2%. Communication with the development module is via the I2C interface. Grove type cables are used to connect the extension with the main modules. A dedicated 20 cm long connection cable is included.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: RCWL-9620 ultrasonic distance sensor - expansion module Unit for M5Stack development modules
Unit series expansion module - ultrasonic distance sensor manufactured by M5Stack. The extension is compatible with M5Stack Core, M5Atom and M5Stick development modules. The sensor is equipped with the RCWL-9620 chip, which can accurately measure the distance and detect an obstacle from 20 mm to 4500 mm, and the measurement is determined with an accuracy of about 2%. Communication with the development module is via the I2C interface. Grove type cables are used to connect the extension with the main modules. A dedicated 20 cm long connection cable is included.
Special features of the sensor
- The module allows for precise distance measurement in the range of 2 cm to 450 cm with an accuracy of about 2%
- Wide viewing angle of 60 degrees allows detection of objects that are not directly in front of the sensor
- Uses I2C bus to communicate with development modules
- Can be used in obstacle avoidance robots, distance measuring projects and object detection
- It is equipped with RCWL-9620 chip

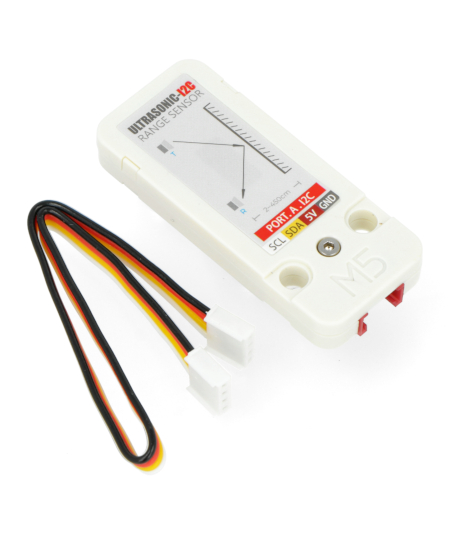

The sensor also comes with a 20 cm long connecting cable.
Botland is an official distributor of the M5Stack module family in Poland. We have extended this system of stackable functional devices with accessories from our range and numerous blog guides. All M5Stack products presented here are original.

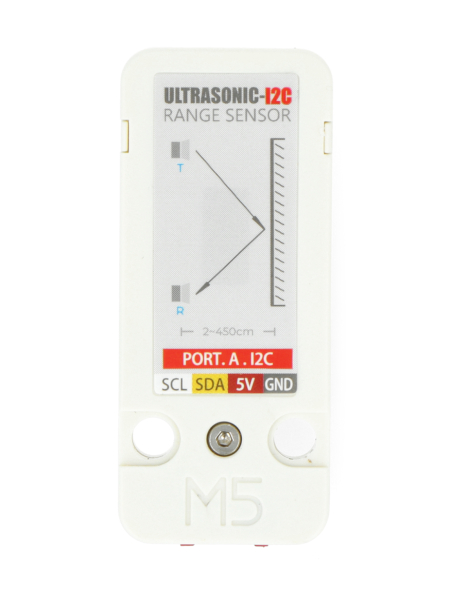

The RCWL-9620 ultrasonic distance sensor is an extension unit for M5Stack development modules.
Technical specifications of the sensor
- Compatible with the development modules: M5Stack Core, M5Atom, M5Stick
- Embedded chip: RCWL-9620
- Communication interface: I2C
- Interface address: 0x57
- Blank range: 0 mm to 20 mm
- Distance measuring range: from 20 mm to 4500 mm
- Measurement accuracy: 2%
- Operating frequency: 40 kHz
- Sensor sensitivity: -65 dB
- Viewing angle: ± 60°
- Operating current: 2 mA
- Supported development platforms: Arduino, UlFlow (Blockly, Python)
- LEGO compatible module
- Module dimensions: 56 x 24 x 15 mm
- Weight: 10 g
Contents of the kit
- RCWL-9620 ultrasonic distance sensor - Unit extension module for M5Stack development modules
- Connection cable with Grove connector - length 20 cm
Useful links
| Name | Value |
|---|---|
| Interface | I2C |
| Sensor - type | distance |
| Sensor - distance to | 450 cm |
| Sensor - distance from | 2.0 cm |
| Width | 7.5 cm |
| Height | 4.5 cm |
| Depth | 3 cm |
| Weight | 0.025 kg |
