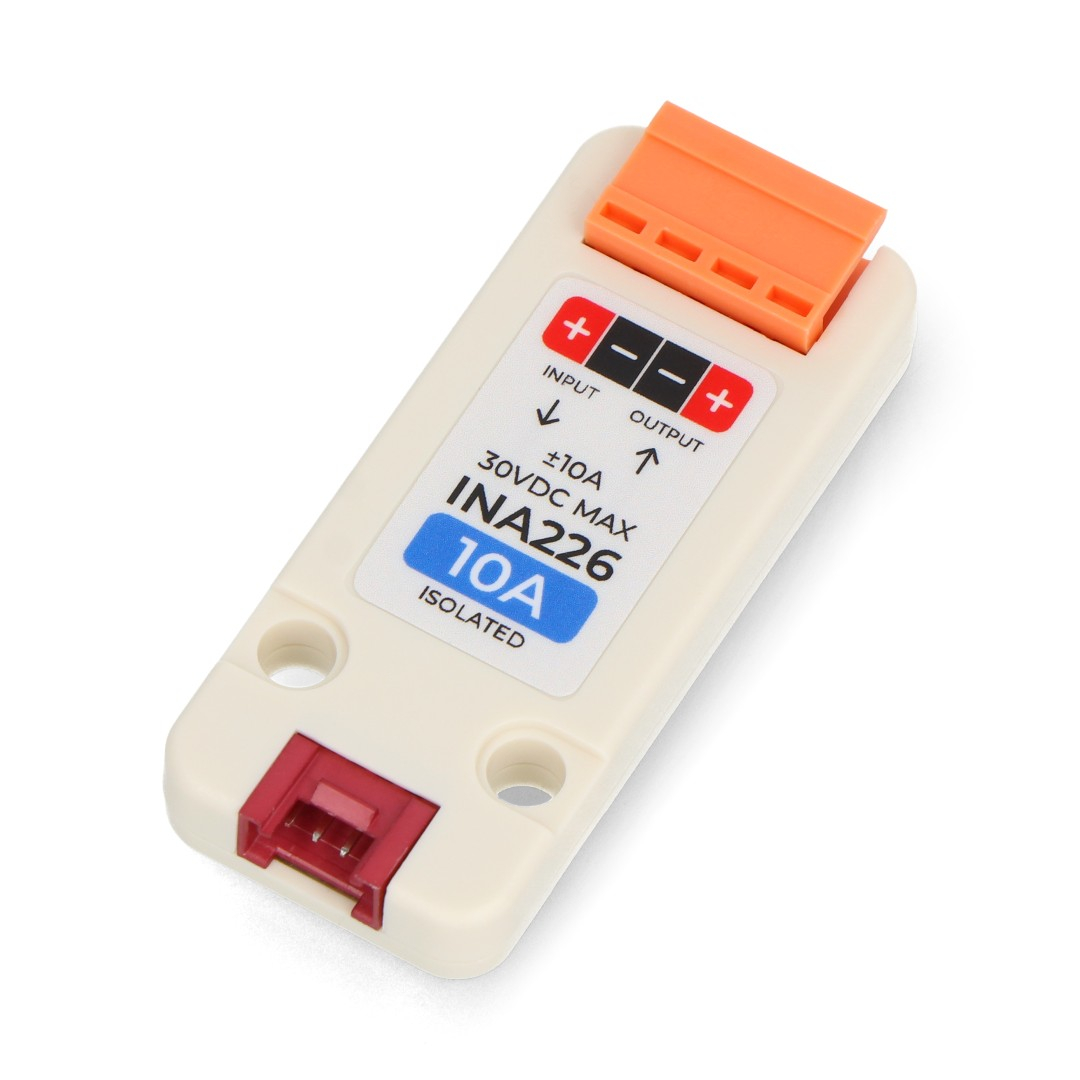

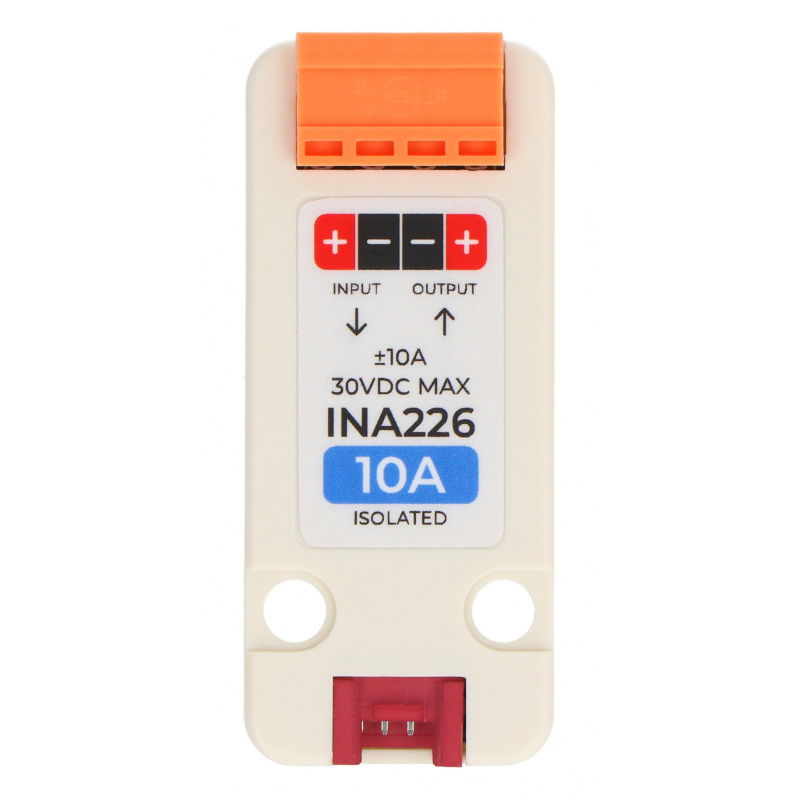

Product description: INA226-10A current, voltage and power sensor - Unit expansion module for M5Stack development modules
The INA226-10A sensor is an expansion module for M5Stack systems that provides accurate real-time voltage (0 V to 30 V), current (±10 A), and power measurement . Its built-in 16-bit ADC offers high measurement precision. The module communicates via I2C (address 0x41) and provides complete isolation of both power and signals, increasing system safety and immunity to interference. A built-in self-resetting fuse protects the circuit against overload, automatically resetting when the problem is resolved. Its compact form factor and broad compatibility with development platforms make the device an ideal choice for advanced IoT and automation projects .
INA226-10A current, voltage and power sensor - Unit expansion module for M5Stack development modules. | Technical specifications of the measurement module | |
|---|---|
| Measuring system | INA226 |
| Voltage measurement range | from 0 V to 30 V DC |
| Current measurement range | from -10 A to +10 A (bidirectional measurement) |
| Communication interface | I2C (address 0x41) |
| Working current | 5.01VDC @ 16.55mA |
| Product dimensions | 58.0 x 24.0 x 10.2 mm |
| Product weight | 8.5 g |

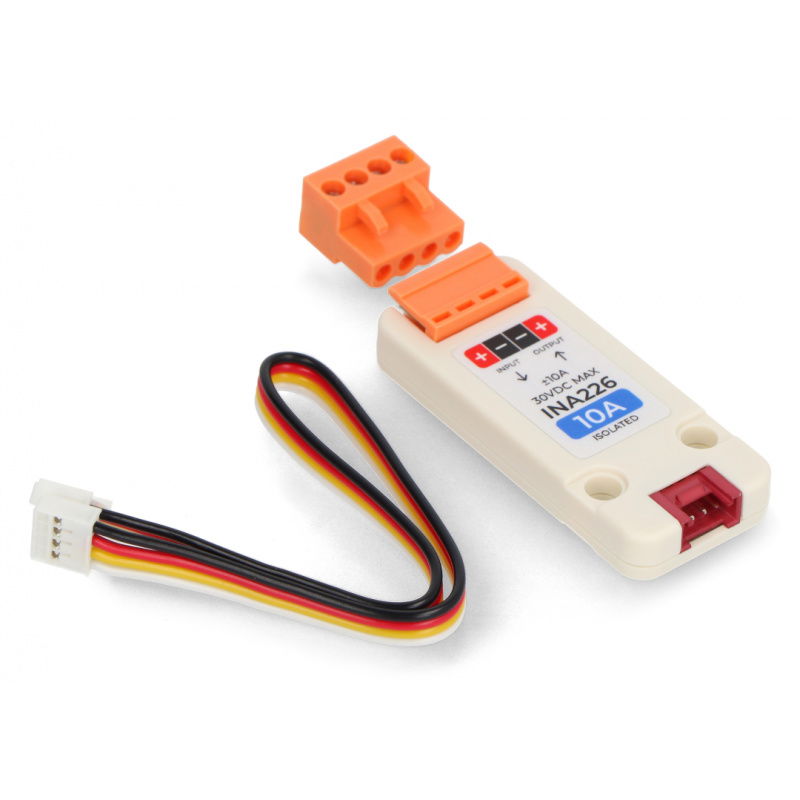

| Contents of the set | |
| |
