37Dx52L Motor with 19:1 Gear 12V 530RPM - Pololu 4741
Polol's 19:1 gear motor. Its speed is 530 rpm and its torque is 8.5 kg*cm. The motor is powered by 12 V and has a current consumption of about 200 mA without load and 5500 mA with the shaft stopped.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: 37D x 52L motor with 19:1 12V 530 RPM gearbox
Polol's19:1gear motor. Its speed is530 rpmand its torque is8.5 kg*cm. The motor is powered by12 Vand has a current consumption of about 200 mAwithoutload and 5500 mAwiththe shaft stopped.

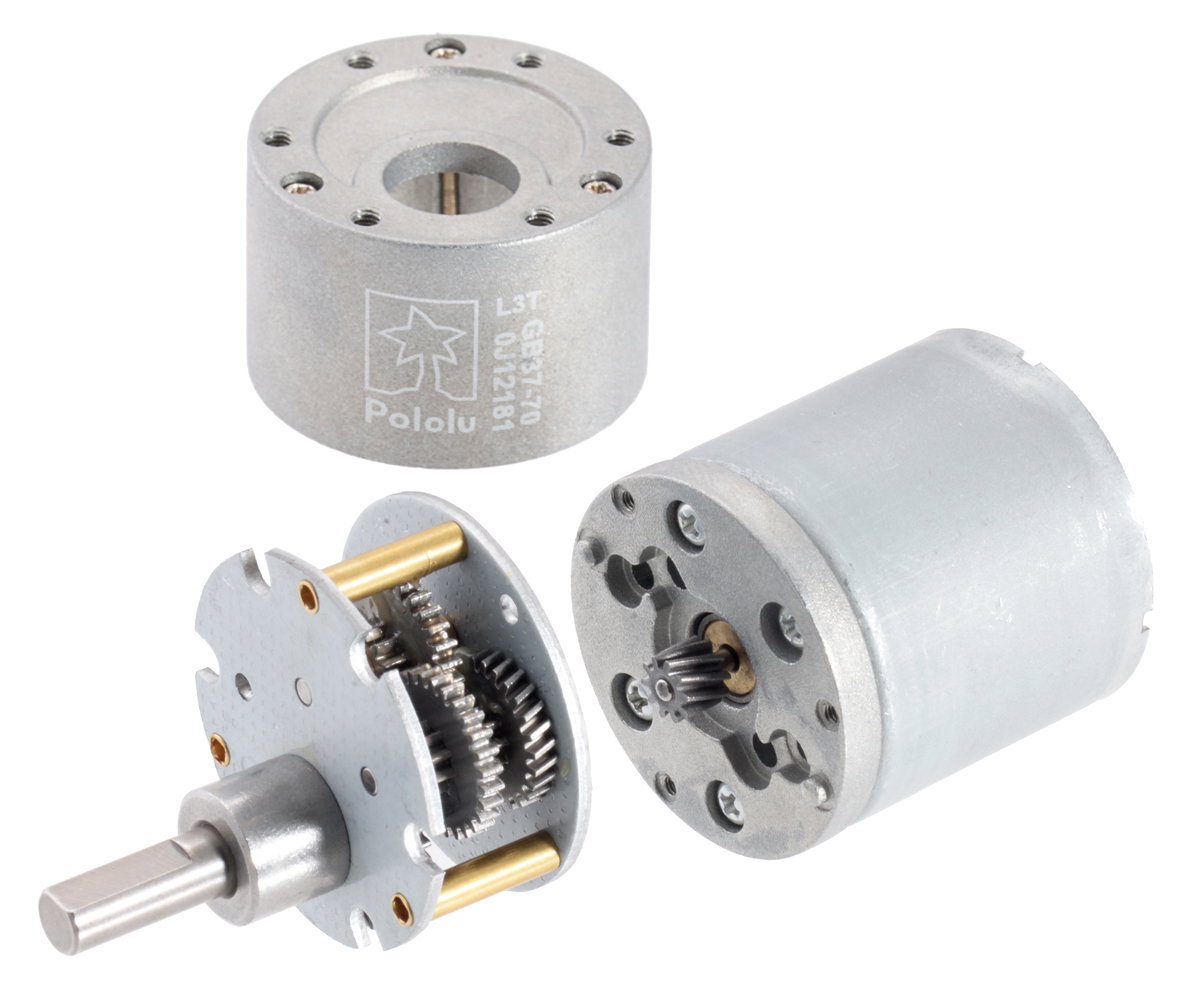

Polol 37D x 52L Polol motor with 19:1 gearbox.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
The dimension L for this motor is 22 mm.

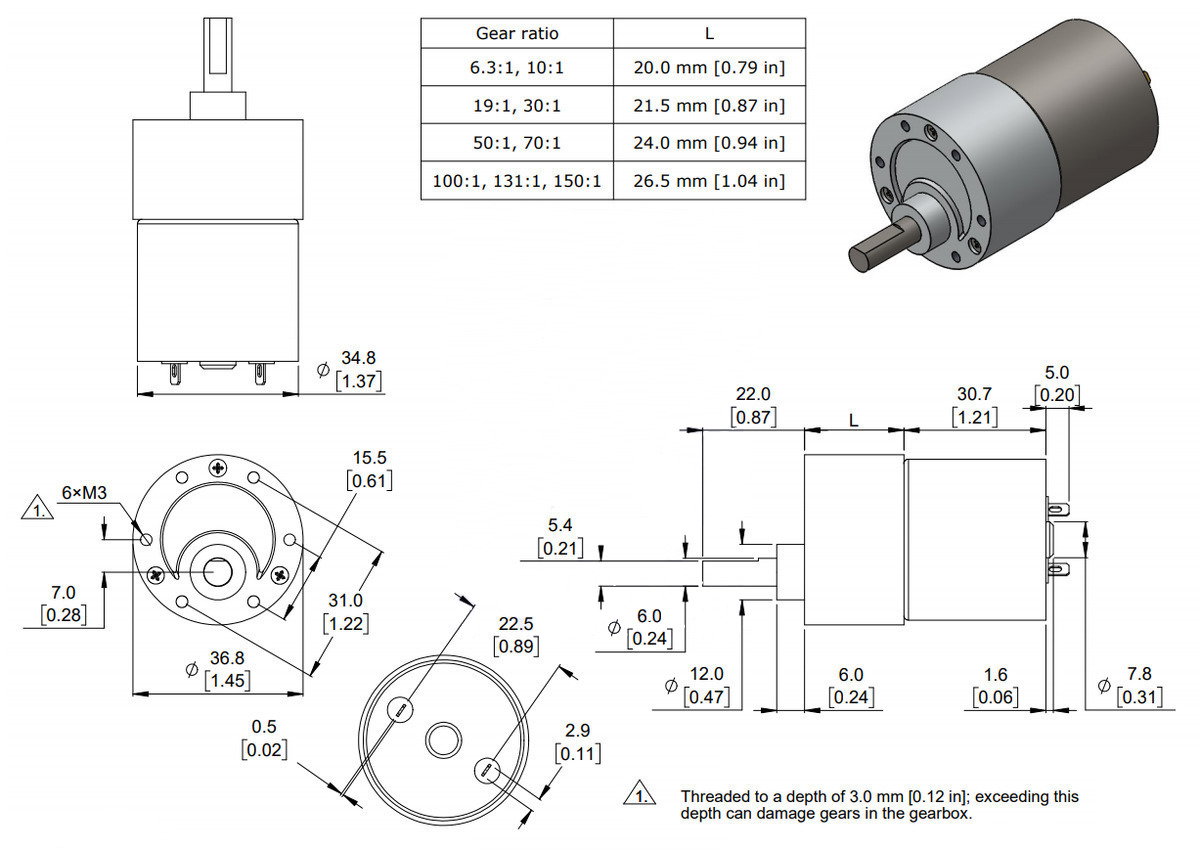

Motor dimensions
The motor has a diameter of 37 mm and an overall length of 52 mm. Detailed data are given in the following technical drawing.
Accessories for motors
You will also find dedicated accessories in our offer:
Accessories for motors

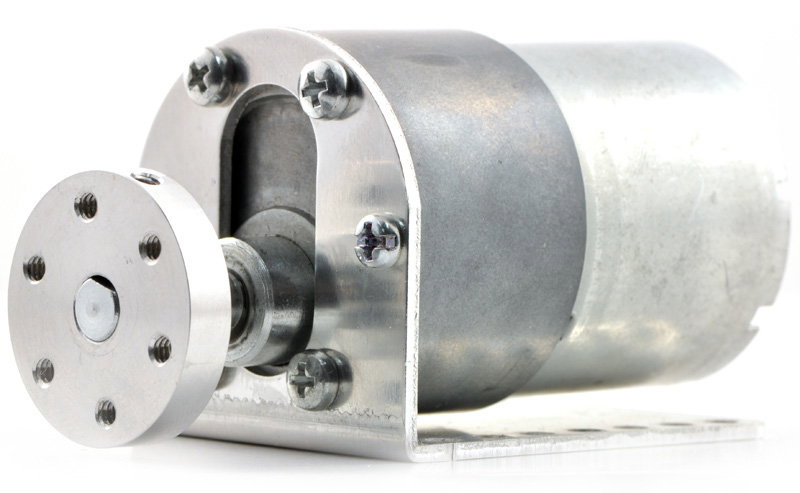

Motor with mounting hub and 37D mounting.
Motor specification 19:1
| General parameter | Value |
|---|---|
| Power supply voltage: | 12 V |
| Gearbox: | 19:1 |
| Dimensions: | 52 x 37 mm |
| Shaft diameter: | 6 mm |
| The weight: | 185 g |
| Parameters for 12 V supply | |
| Speed: | 530 rpm |
| Torque: | 8.5 kg*cm |
| Average power consumption: | 200 mA |
| Maximum power consumption: | 5500 mA |
Useful links
| Name | Value |
|---|---|
| Diameter | 37 mm |
| Length | 52 mm |
| Voltage to | 12.0 V |
| Voltage from | 12.0 V |
| Motor - current | 200 mA |
| Motor - gear | 19:1 |
| Rotation speed | 530 obr/min |
| Torque | 8.5 kg*cm |
| Mass | 185 g |
| Motor - shaft | 6 mm |
| Voltage nominal | 12 V |
| Width | 11 cm |
| Height | 4.3 cm |
| Depth | 4.5 cm |
| Weight | 0.185 kg |
