Metal DC Geared Motor - 6V 133RPM 4.5kg.cm
Metal gearing motor providing 4.5 kg*cm (0.44 Nm) of torque. Supply voltage is 6 V and speed is 133 rpm.
We could not load the price.
The promotional price does not combine with quantity discounts.

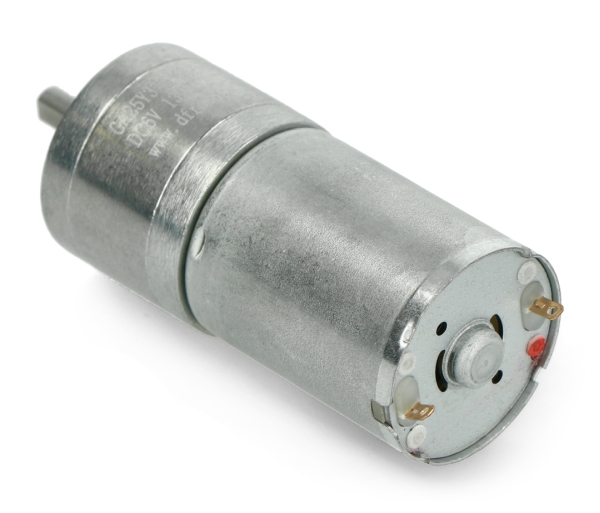

DFRobot DC 6V 4.5kg 133RPM motor
Metal gearing motor providing 4.5 kg*cm (0.44 Nm) of torque. Supply voltage is 6 V and speed is 133 rpm.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.
DC motor specifications
- Supply voltage: 2 V to 7.5 V
- Rated voltage: 6 V
- Gearbox: 45:1
- No load current: 130 mA
- The current at the stopped rampart: 2,3 A
- Idle speed: 133 rpm
- Rated speed: 32 rpm
- Torque at stopped shaft; 4.5 kg*cm (0.44 Nm)
- Output shaft diameter: 4 mm type D
- Output shaft length: 8 mm
Specifications
- Dimensions: 51 x 24 x 24 mm
- Weight: 90 g
Useful links
| Name | Value |
|---|---|
| Diameter | 24 mm |
| Length | 51 mm |
| Voltage to | 6.0 V |
| Voltage from | 6.0 V |
| Motor - current | 2,3 A |
| Motor - gear | 45:1 |
| Rotation speed | 133 obr/min |
| Torque | 4.5 kg*cm |
| Mass | 90 g |
| Motor - shaft | 4 mm |
| Voltage nominal | 6.0 V |
| Width | 6.5 cm |
| Height | 2.6 cm |
| Depth | 2.6 cm |
| Weight | 0.092 kg |
