25Dx58L Motor with 499:1 Gear 6V 12RPM - Pololu 1591

Index: PLL-03481 EAN: 5904422367688

Polol's 499:1 gearbox engine generates 12 rpm, torque is 21.6 kg*cm (2.1 Nm). Powered by 6 V, the average current consumption is approximately 80 mA (2200 mA max).

25Dx58L Motor with 499:1 Gear 6V 12RPM - Pololu 1591
€33.85
€27.52 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Pololu

Product description: Polol 25Dx58L motor with 499:1 6 V 12 RPM gearbox.

Polol's 499:1 gearbox engine generates12 rpm, torque is 21.6 kg*cm (2.1 Nm). Powered by6 V, the average current consumption is approximately 80 mA(2200 mAmax).

Dimensions

The figure shows the dimensions of the motor, parameter L for this model is 27 mm.

Accessories

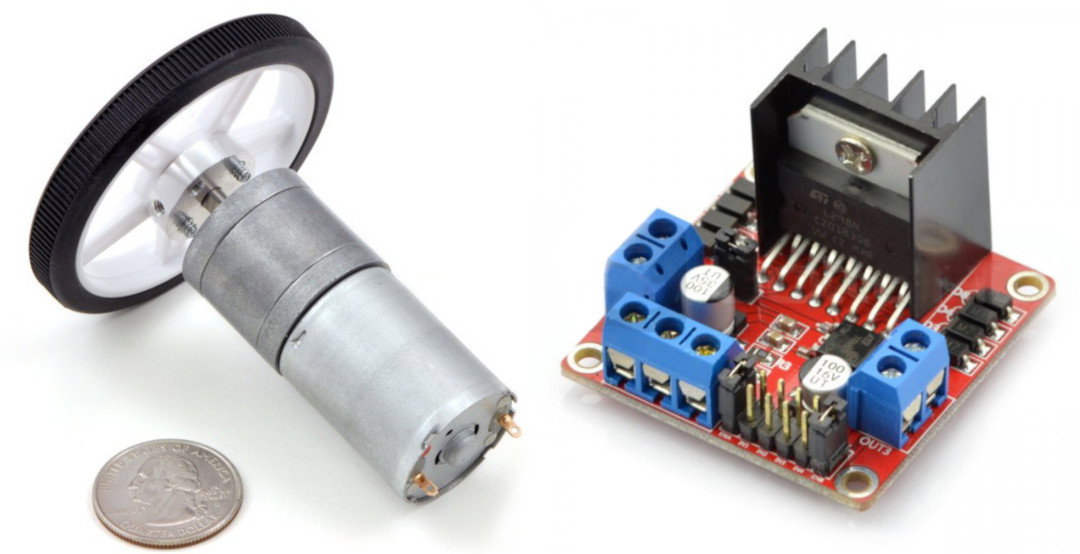

In our offer you will also find wheels, amountinghubandenginecontrollers.

Polol engine specifications

  • Nominal tension: 6 V
  • Average current consumption without load: 80 mA
  • Maximum power consumption when the shaft is blocked: 2,2 A
  • Gearbox: 498.87:1
  • Idle speed at 6 V: 12 rpm
  • Torque: 21.6 kg*cm (2.1 Nm)
  • Shaft diameter: 4 mm
  • Dimensions: 25D x 58L mm
  • Weight: 100 g

Diameter 25 mm
Length 58 mm
Voltage to 6.0 V
Voltage from 6.0 V
Motor - current 80 mA
Motor - gear 499:1
Rotation speed 12 obr/min
Torque 21.5 kg*cm
Mass 100 g
Motor - shaft 4 mm
Voltage nominal 6.0 V
