Turbo Metal Gear Worm Motor (6V 40RPM 10kg/cm)
Metal worm gear motor for strength and high torque of 10 kg*cm (1 Nm). Supply voltage is 6V and speed is 40 rpm.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: DFRobot DC 6 V 40RPM motor with worm gearbox
Metal worm gear motor for strength and high torque of 10 kg*cm (1 Nm). Supply voltage is6Vand speed is40 rpm. The worm gearbox provides the motor withself-locking capability.
Botland is an official distributor of DFRobot open-source hardware. Every roboticist and practitioner of emerging technology has heard at least once of DFRobot solutions, built above all around Arduino. Our range holds original DFRobot products only.

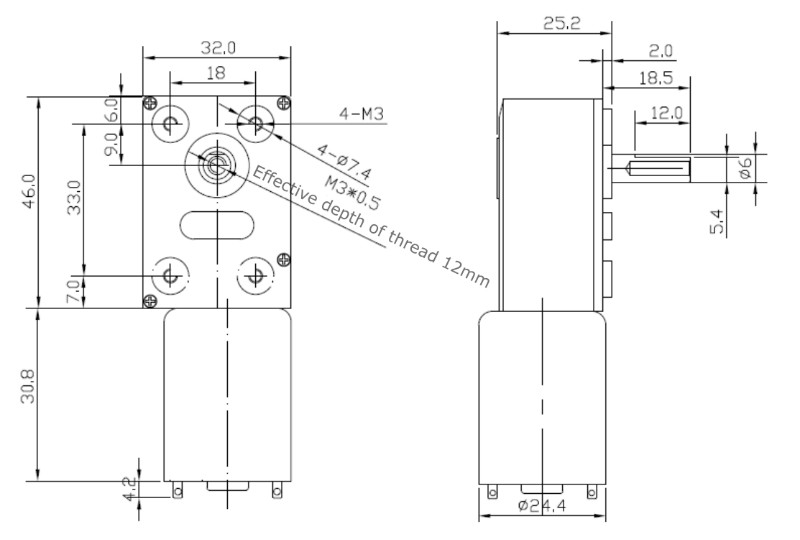

Dimensions
DC motor specification
- Supply voltage: 3 V to 9 V
- Rated voltage: 6 V
- Gearbox: 1:150
- No load: 40 mA
- Rated current: 250 mA
- The current at the stopped rampart: 1,7 A
- Idle speed: 40 rpm
- Rated speed: 32 rpm
- Rated torque; 2.5 kg*cm (0.24 Nm)
- Torque at stopped shaft; 10 kg*cm (1.0 Nm)
- Output shaft diameter: 6 mm
- Output shaft length: 18.5 mm
- Dimensions: 77 x 26 x 32 mm
- Weight: 160 g
Useful links
| Name | Value |
|---|---|
| Diameter | 32mm |
| Length | 77 mm |
| Voltage to | 6.0 V |
| Voltage from | 6.0 V |
| Motor - current | 250 mA |
| Motor - gear | 1:150 |
| Rotation speed | 40 obr/min |
| Torque | 10,0 kg*cm |
| Motor - shaft | 6 mm |
| Voltage nominal | 6.0 V |
| Width | 11 cm |
| Height | 5.5 cm |
| Depth | 13 cm |
| Weight | 0.01 kg |
