Specifications of the module with DC 3 - 6 V motor
-
Supply voltage: 3 to 6 V
- No-load speed: 15 000 rpm
- Speed under load for 6V: 8,000 rpm
- Idle current at 6 V: 40 mA
- Maximum current consumption (with shaft stopped): 360 mA
- Torque: 0.111 kg*cm
- Module dimensions: 36 x 27 x 13 mm
- Weight: 22 g

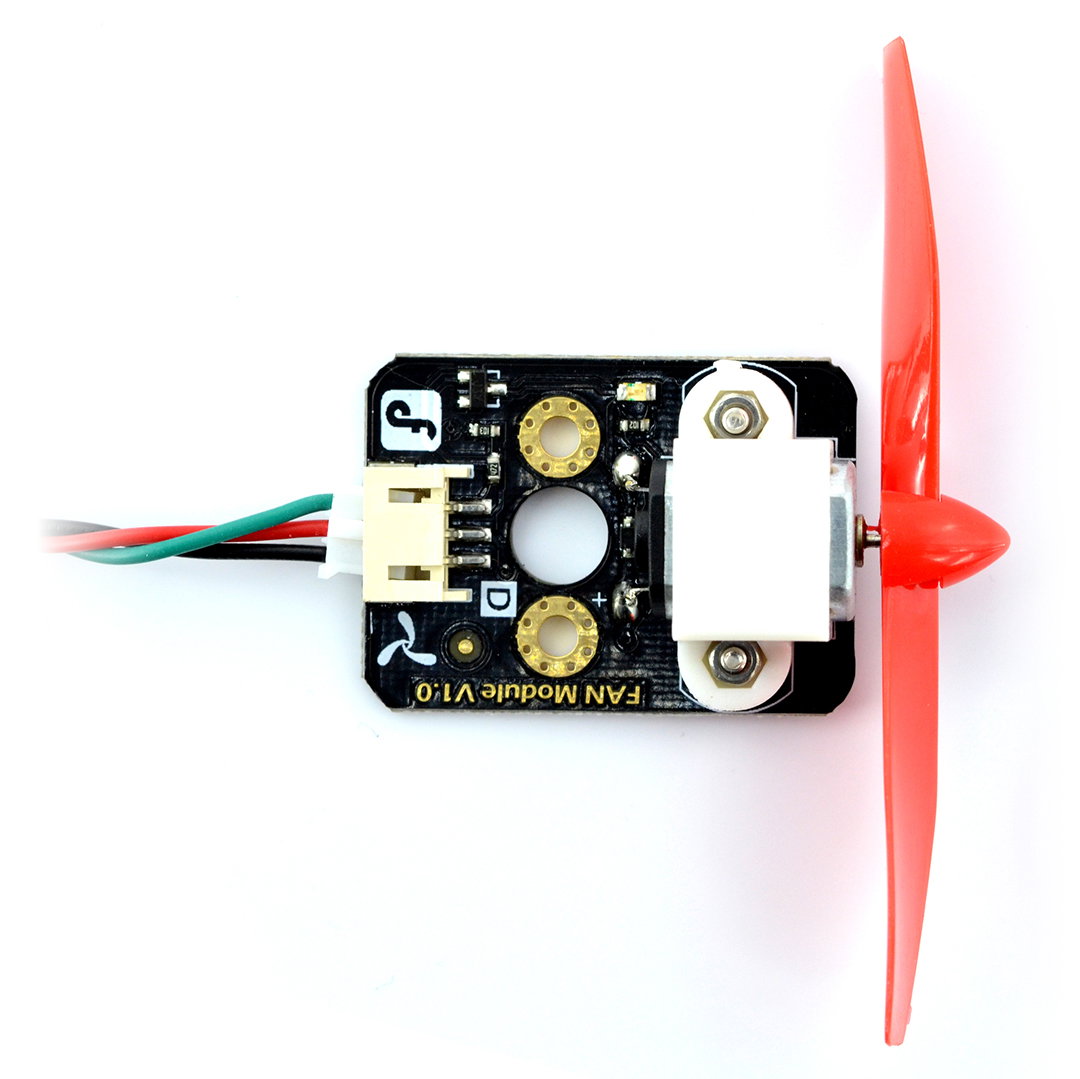

DFRobot Gravity - windmill module with DC 3 - 6 V motor. Other propellers also available in the offer.
Product description: DFRobot Gravity - Windmill module with a DC 3-6V motor
A small motor module with a controller with speed control capabilities. The device is compatible with Arduino. The kit also includes a propeller.
Wiring diagram of the windmill module.
Due to low current consumption, the device can be connected via Arduino's built-in stabilizer - power supply from 5V pin. The rotational speed is controlled by PWM signal, e.g. from pin 3.
