DC motor with 50:1 gear 6V 75RPM

Index: DNG-22687
DC motor with 50:1 gear ratio. It is powered with the voltage of 6 V with an average current consumption of 75 mA. It generates 75 revolutions per minute , its torque is 8.4 kg*cm . The motor has a D-type shaft with a diameter of 4 mm . The dimensions of the motor housing are 52.6 x 24.4 mm.
DC motor with 50:1 gear 6V 75RPM
€9.50
€7.72 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product Description: 50:1 6V 75 RPM gear motor

DC motor with 50:1 gear ratio. It is powered with the voltage of 6 V with an average current consumption of 75 mA. It generates 75 revolutions per minute , its torque is 8.4 kg*cm . The motor has a D-type shaft with a diameter of 4 mm . The dimensions of the motor housing are 52.6 x 24.4 mm. Detailed data can be found in the technical drawing .

Accessories

Our offer includes a wide range of accessories for DC motors. Wheels , mounting hubs and motor controllers that you will find with us will allow you to easily and conveniently create various types of projects using a DC motor.

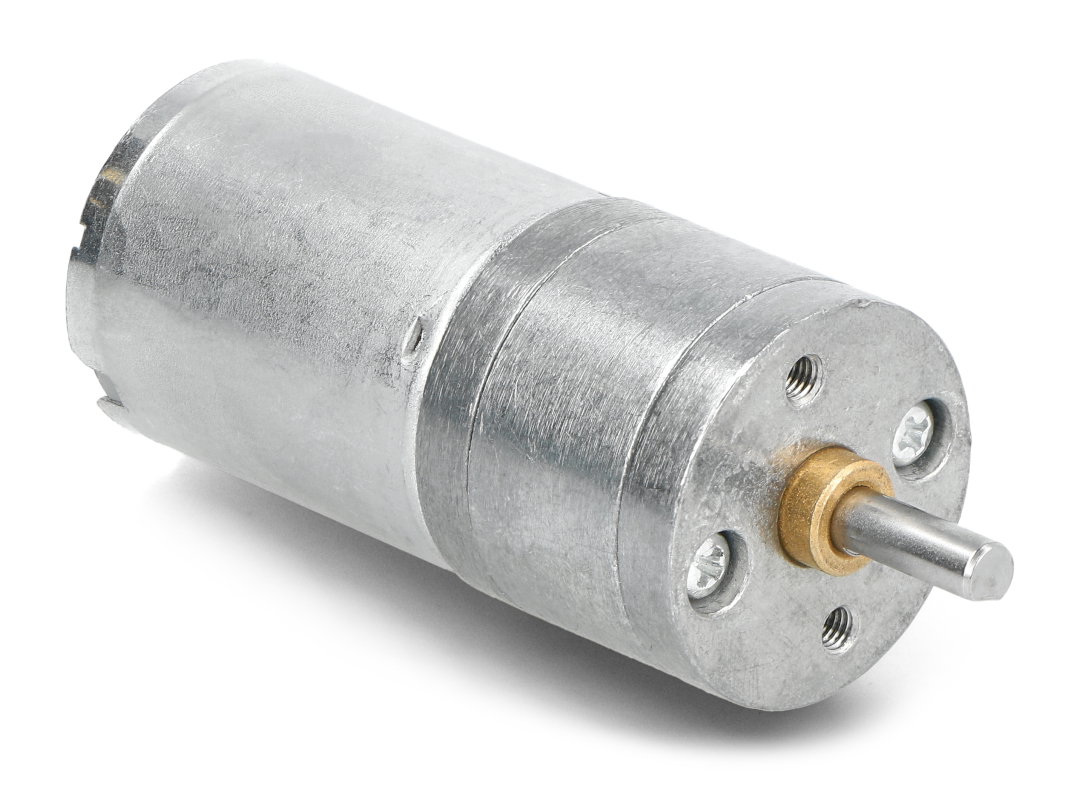

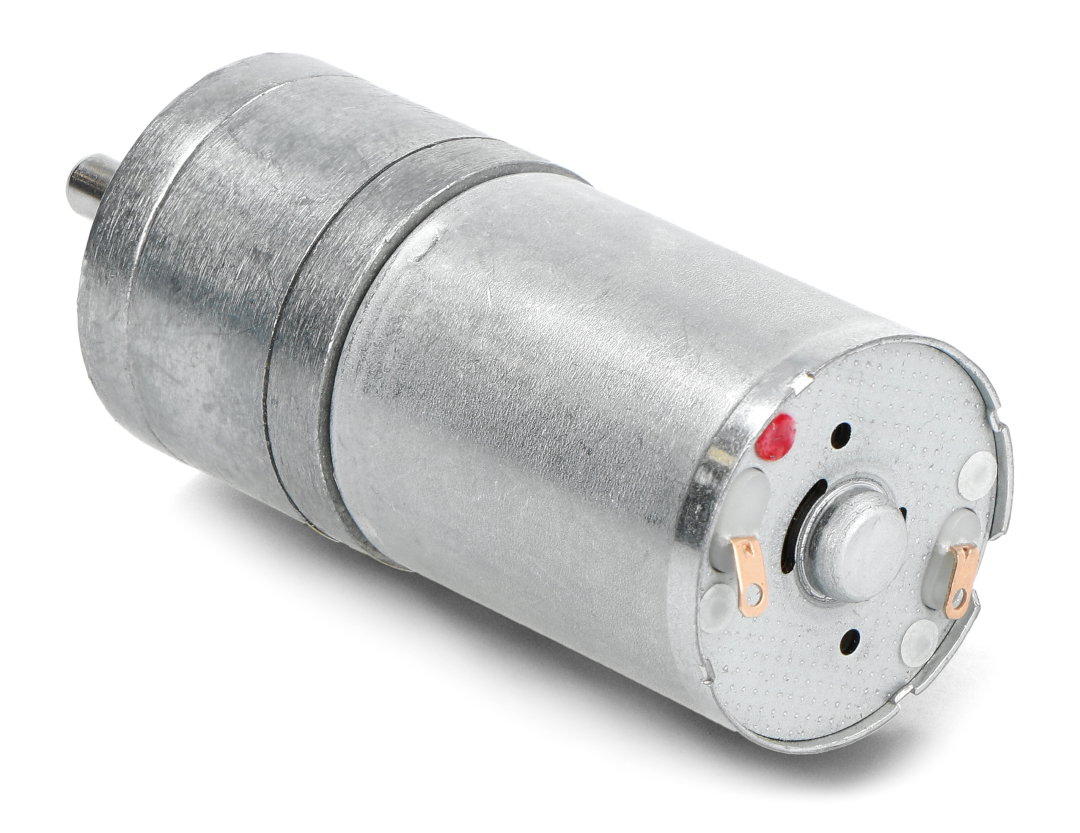

50:1 6V 75 RPM gear motor.

The motor shaft has a diameter of 4 mm.

DC motor technical specification

  • Gear ratio: 50:1
  • Rated Voltage: 6V
  • Average current consumption: 75 mA
  • Maximum current consumption: 1.1 A
  • Idling speed: 75 rpm
  • Torque: 8.4 kg*cm
  • Output shaft diameter: 4mm D-type
  • Output shaft length: 8mm
  • Dimensions: 52.6 x 24.4mm
  • Weight: 100g

In our offer you will find motors with gears with different gear ratios - check it out!

Voltage to 6.0 V
Voltage from 6.0 V
Motor - current 75 mA
Motor - gear 50:1
Rotation speed 75 obr/min
Torque 8,4 kg*cm
Motor - shaft 4 mm
Package width 10.5 cm
Package height 7 cm
Package depth 2 cm
Package weight 0.094 kg
