Product description: DC 12V 160 RPM motor with worm gear
The DC motor with a 1:37.3 worm gear ensures reliable and stable operation at a rated voltage of 12 V , supporting the voltage range from 6 V to 15 V. It is energy-saving because the current consumption when loaded is only 180 mA, while when the shaft is stopped it is 1 A, which allows you to cope with momentary overloads. A solid shaft with a diameter of 6 mm and a length of 18.5 mm ensures compatibility with many standard drive mechanisms. A torque of 0.55 kg*cm is sufficient for many standard applications. The engine also has compact dimensions and low weight, making it suitable for many different applications, e.g. in robotics or industrial automation .
In our store you can find a wide range of DC motors , please also check out other models.

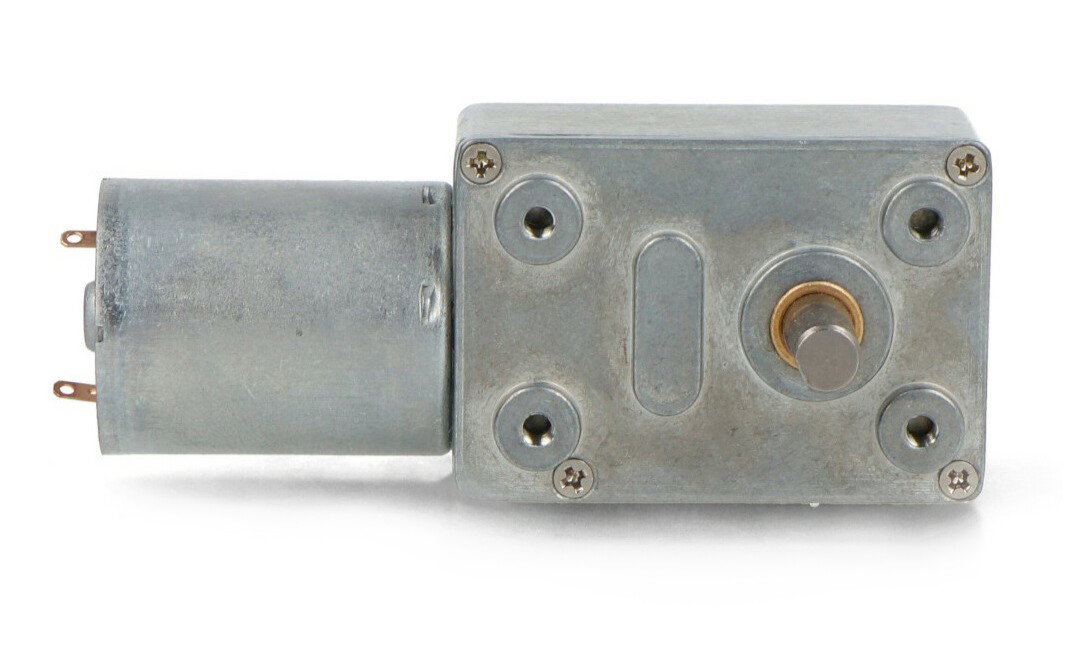

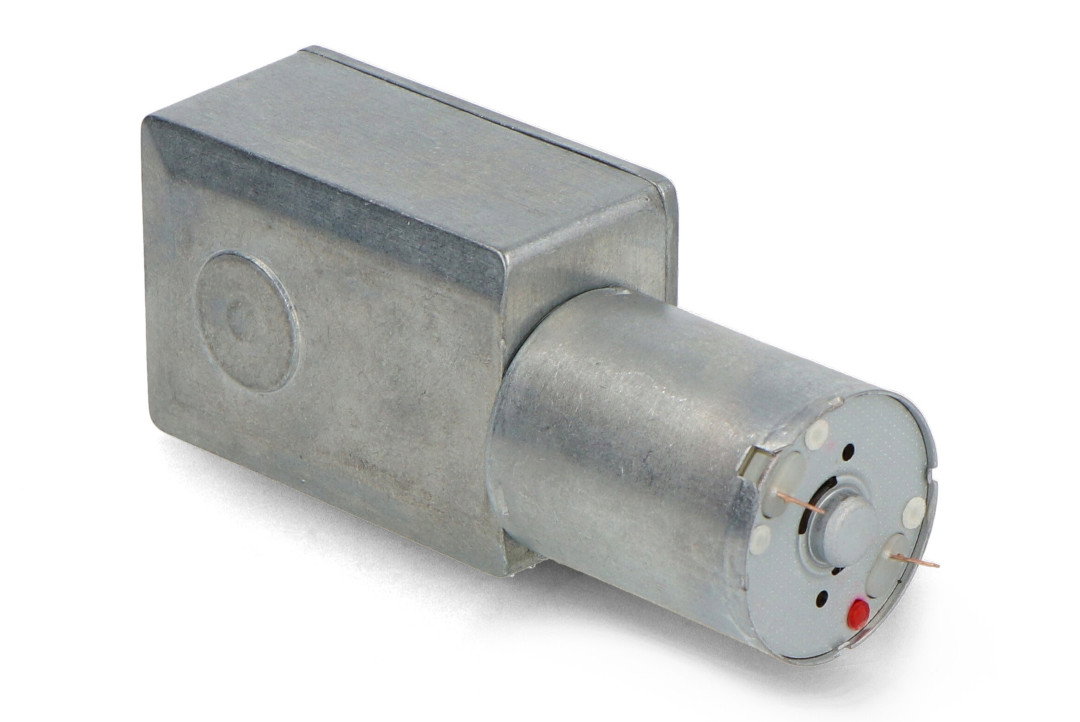

DC 12V 160 RPM motor with worm gear.
The engine has dimensions of 77 x 32 x 26 mm.DC motor specifications
- Supply voltage: 6V to 15V
- Rated voltage: 12V
- Gear ratio: 1:37.3
- No-load current: 35 mA
- Rated current: 180 mA
- Current with stopped shaft: 1 A
- Idle speed: 160 rpm
- Rated rotational speed: 128 rpm
- Rated torque; 0.55 kg*cm (0.05 Nm)
- Torque with shaft stopped; 1.2 kg*cm (0.12 Nm)
- Output shaft diameter: 6 mm
- Output shaft length: 18.5 mm
- Dimensions: 77 x 32 x 26 mm
- Weight: 155 g
