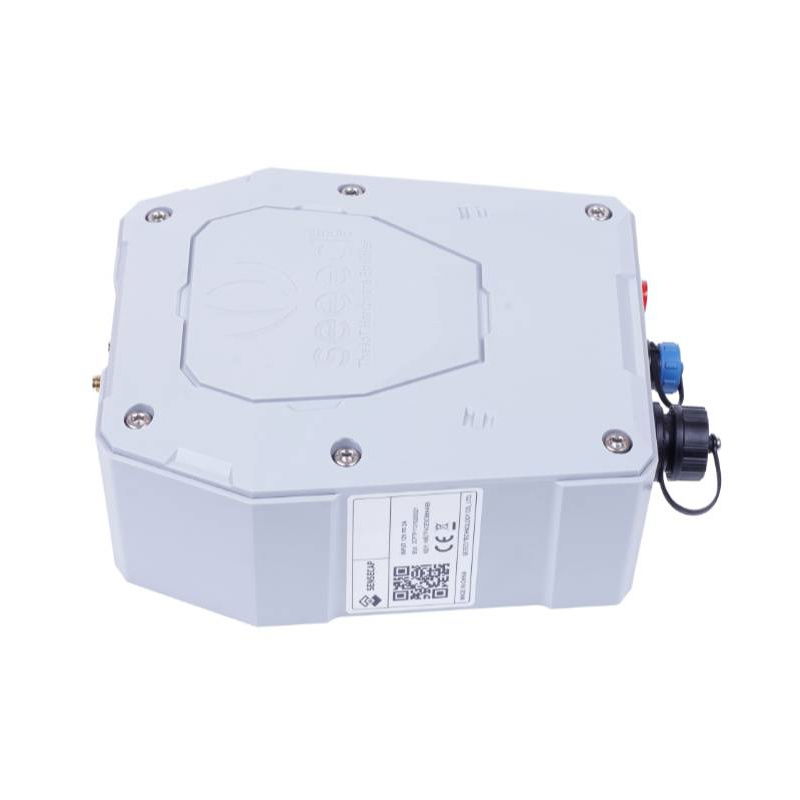

Product description: SenseCAP Outdoor Gateway - LoRaWAN SX1302 outdoor gateway - EU868 MHz - IP66 - Seeedstudio 102991154
The SenseCAP Outdoor Gateway LoRaWAN from Seeedstudio is an advanced industrial gateway designed for IoT applications such as smart farming and environmental monitoring. It supports the EU868 MHz frequency (band from 863 MHz to 870 MHz), enabling effective communication over long distances - up to 10 km in open terrain and up to 2 km in urban development . The gateway is equipped with a TI AM3358 Cortex A8 processor clocked at 1 GHz, 512 MB RAM and 8 GB eMMC memory, which guarantees high performance. Thanks to the IP66 tightness class and resistance to UV radiation, it works perfectly in difficult weather conditions. Connection to the cloud is carried out via the 4G LTE or Ethernet network, and the mutual authentication system ensures the security of transmitted data.

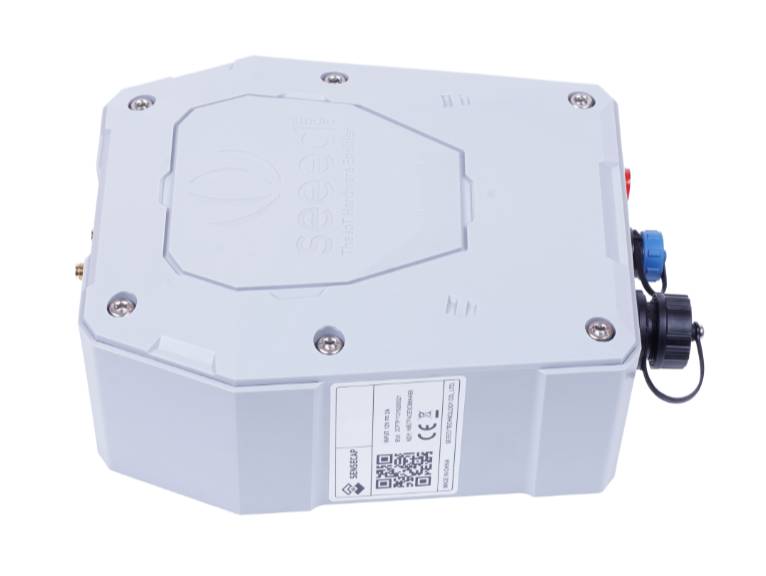

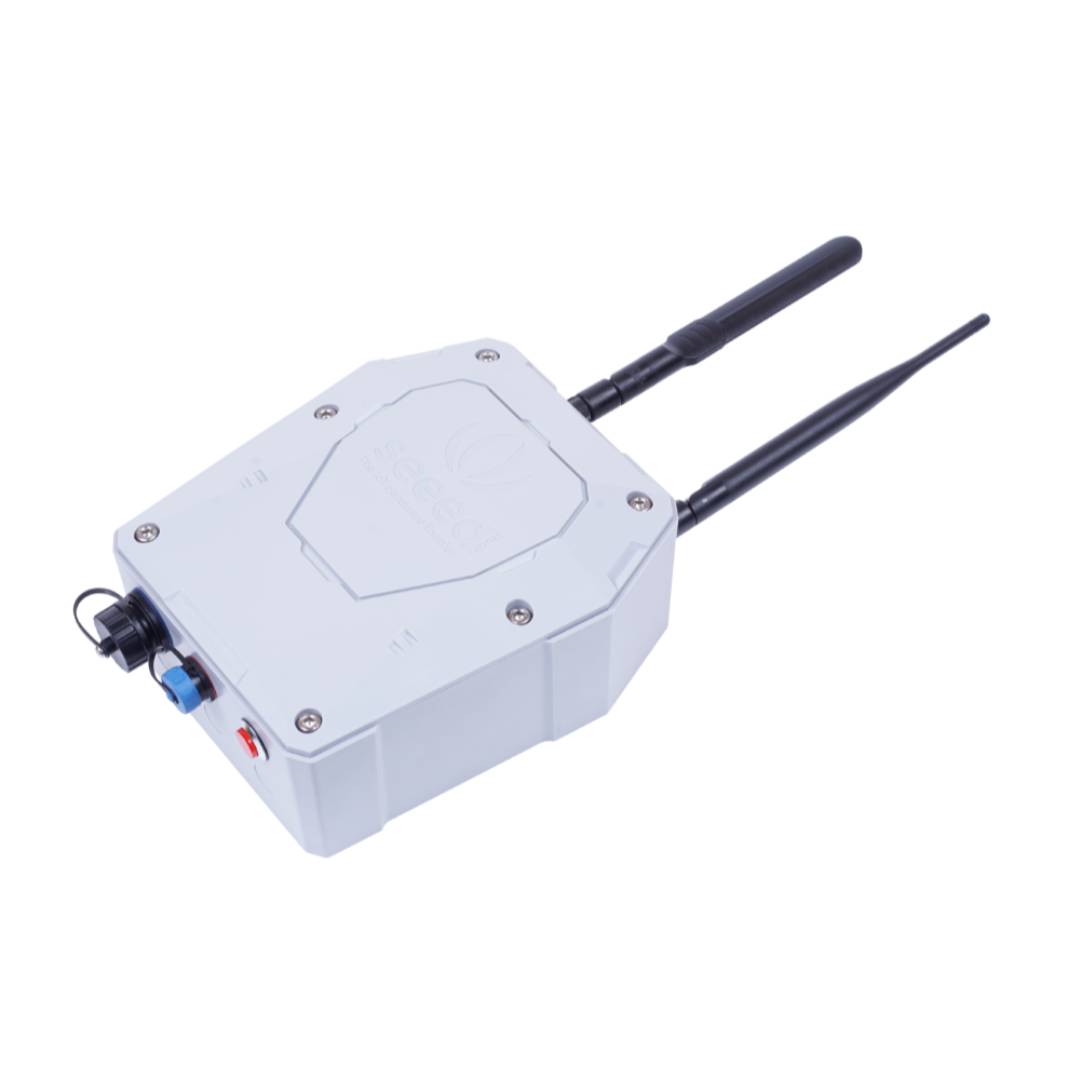

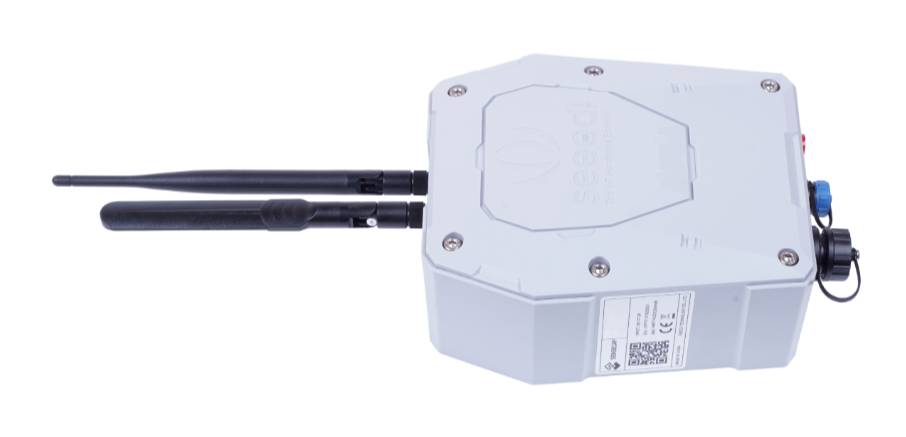

SenseCAP Outdoor Gateway - LoRaWAN SX1302 outdoor gateway - EU868 MHz - IP66 - Seeedstudio 102991154.
The gateway supports 8 RX receivers and 1 TX transciever.
Key Features of the SenseCAP Gateway
- 1 GHz Cortex A8 processor : provides stable operation and high performance for large IoT networks, supporting Linux operating system, enabling flexible management
- LoRaWAN Class A support : enables the use of low-current SenseCAP sensors, making the device ideal for IoT applications requiring long-range transmission
- Supports various network access methods : 4G and Ethernet offer versatility in choosing the connection method, ensuring a stable connection in various conditions
- Long transmission range : up to 10 km in open areas and 2 km in urban areas, allowing data collection from remote locations
- Industrial protection : IP66 housing provides high resistance to harsh weather conditions, ideal for outdoor applications in temperatures from -40°C to 70°C
- Easy to install and quick to configure : simple installation process, allowing you to quickly get the system up and running in different locations
SenseCAP Outdoor Gateway Practical Applications
SenseCAP Outdoor Gateway is widely used in various industries, especially in IoT. Thanks to its reliability and long range, it is ideal for smart agriculture , where it allows for collecting data from environmental sensors, monitoring crops and optimizing production processes. In smart buildings , it allows for integration with energy management systems, monitoring air quality or temperature . The gateway is also used in environmental monitoring , where it provides precise data on air quality, humidity or temperature, supporting the sustainable development of cities and rural areas. Thanks to its wide support for various wireless applications, it is also an irreplaceable tool in many other scenarios requiring long-range data transmission and low energy consumption.
The gateway provides data transmission over a very long distance - up to 10 km in open terrain.
Data collected by sensors is sent to the cloud platform via LTE or Ethernet networks.
System Architecture and Configuration
The SenseCAP Outdoor Gateway acts as the central point of the LoRaWAN network , collecting data from various sensors, which is then transmitted to the cloud via 4G or Ethernet. The gateway is equipped with the AM3358 processor and the LoRa SX1302 chip, which ensures high performance even in large networks. The system is compatible with the SenseCAP Portal and the SenseCAP Mobile App , which facilitate the management of devices and data on a large scale. The ease of configuration and installation makes the system start-up quick and intuitive.
Please note that the SenseCAP Outdoor Gateway does not support Helium LongF and networks .

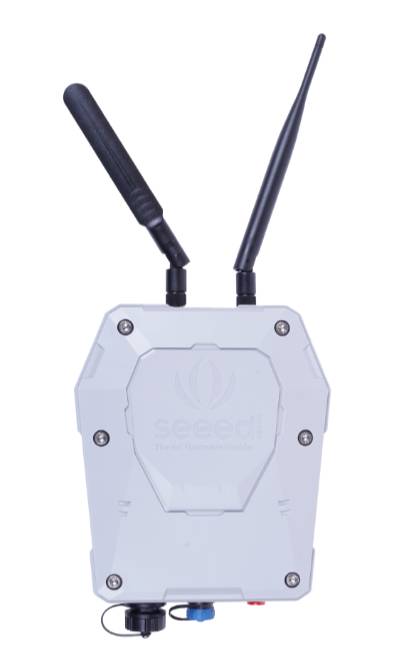

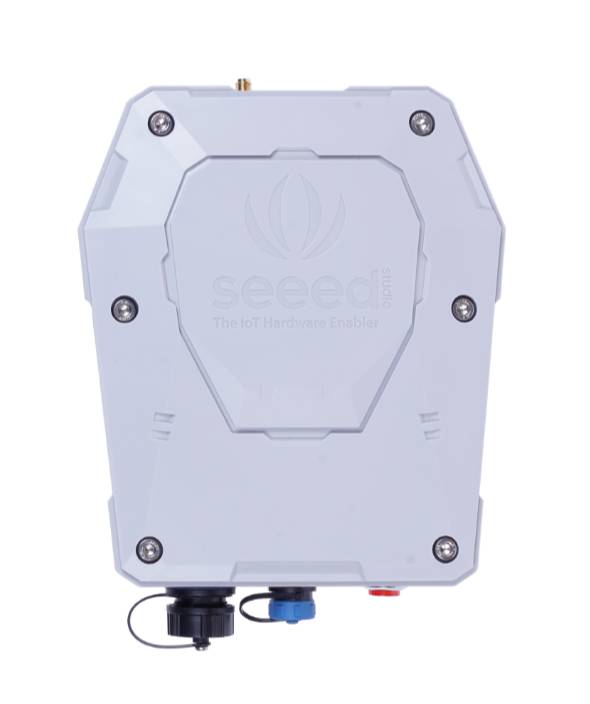

Interfaces and connectors
- Ethernet connector (RJ45, 100 Mbps)
- Power connector (DC 12V/2A)
- LED indicators (network status online/offline)
- Reserved connector
- 4G LTE antenna connector (SMA-J, gain 0 dBi to 4 dBi)
- LoRa antenna connector (SMA-J, gain 2.5 dBi)
- Reserved connector

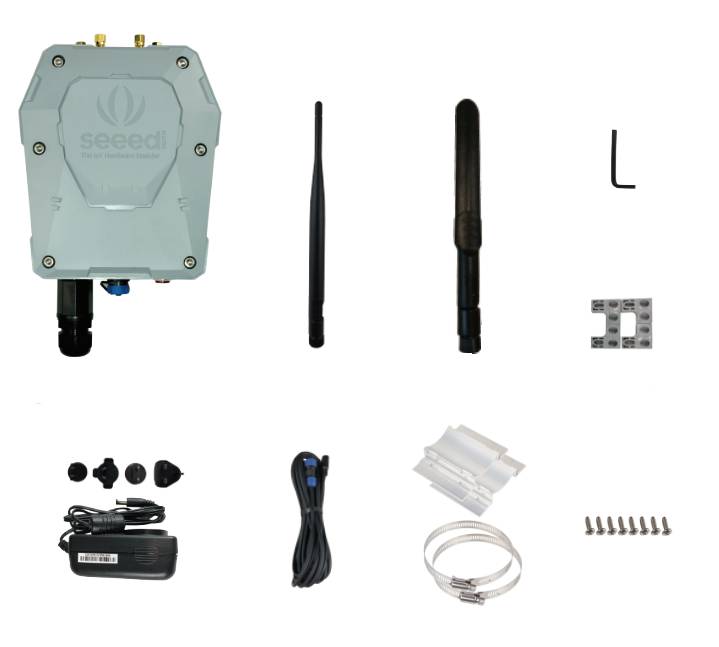

How to get started?
- Connect your gateway to the internet by choosing 4G or Ethernet
- Attach your chosen mounting hardware to the gate for wall or pole installation
- Connect LoRa and 4G antennas
- Mount the gateway on a wall or pole using the included brackets
- Connect the gateway to the power supply using the included power supply
- Configure your device in the app or on the SenseCAP portal
- Connect LoRaWAN sensors and start collecting data

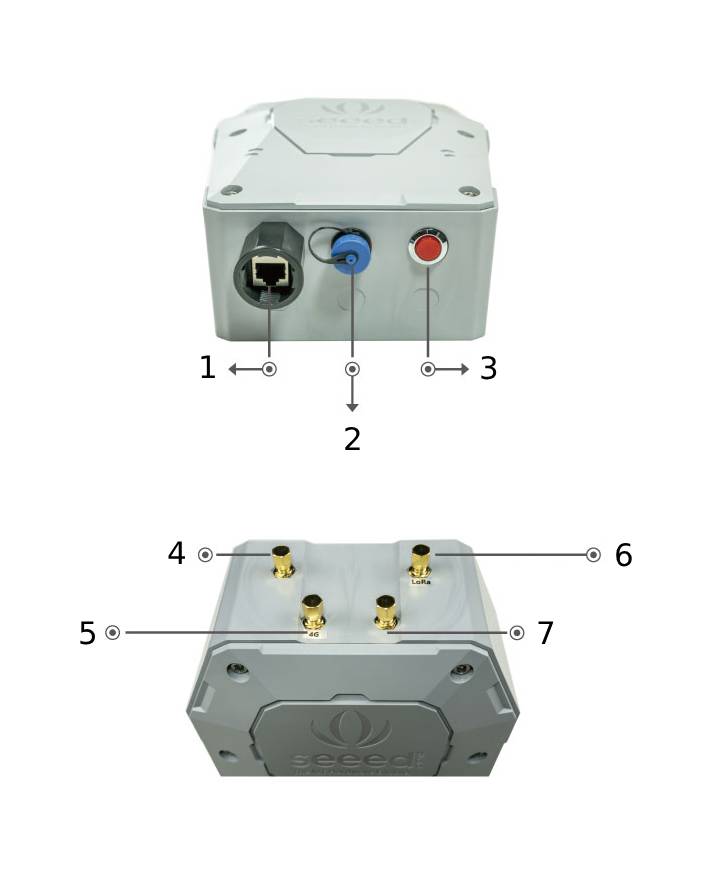

Arrangement of interfaces.
SenseCAP Outdoor Gateway Technical Specifications
- Model: LoRa-G-868-E/4G
- Processor: TI AM3358 Cortex A8, 1 GHz
- Operating system: Linux Debian
- RAM: 512MB DDR3
- Internal memory: 8GB eMMC
- Protocol: LoRaWAN v1.0.2
- Frequency: EU868 (863MHz to 870MHz)
- LoRa output power: 25 dBm
- LoRa Sensitivity: -139 dBm (SF12BW125)
- Ethernet: 100Mbps FE (RJ45)
- 4G band: LTE-FDD, LTE-TDD, WCDMA, GSM
- Maximum 4G speed: up to 150 Mbps (download), up to 50 Mbps (upload) in LTE-FDD, up to 130 Mbps (download), up to 30 Mbps (upload) in LTE-TDD
- Long Range Antenna: 2.5 dBi, vertical polarization, omnidirectional, SMA-J connector
- 4G Antenna: 0 dBi to 4 dBi, linear polarization, omnidirectional, SMA-J connector
- LED indicator: indicates network status (online / offline)
- Ground Connector: 1 Ground Mounting Hole
- Power consumption: 3.6 W
- Power supply: DC 12V/2A
- Protection class: IP66
- UV resistance: UL746C F1 (resistance to aging from rain and sun)
- Housing material: PC
- Operating temperature: -40°C to 70°C
- Operating humidity range: 0% RH to 100% RH (no condensation)
- Installation method: wall or pole mounting
- Dimensions: 256 x 160 x 81 mm
- Weight: 777 g
