Product description: SenseCAP Asset Tracker T2000-C - industrial locator with solar panel - LoRaWAN - Seeedstudio 100087298
The SenseCAP T2000-C is an industrial locator designed for long-term monitoring of vehicles, machinery, containers, and outdoor equipment. The device uses GNSS systems to determine position in open spaces and Bluetooth scanning to assist with indoor location . A built-in 0.5W solar panel recharges the 4000mAh battery, reducing the need for manual operation. LoRaWAN connectivity allows for long-range data transmission without the use of a SIM card. The locator is also equipped with a 3-axis accelerometer, an anti-tamper switch, and memory for up to 1000 records .

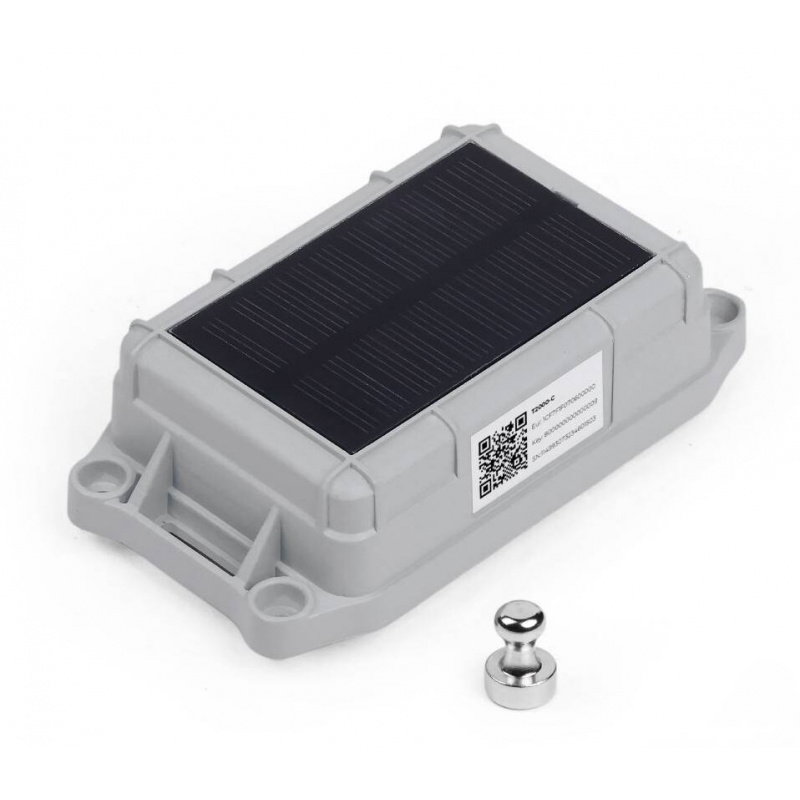

SenseCAP Asset Tracker T2000-C - industrial locator with solar panel - LoRaWAN - Seeedstudio 100087298.

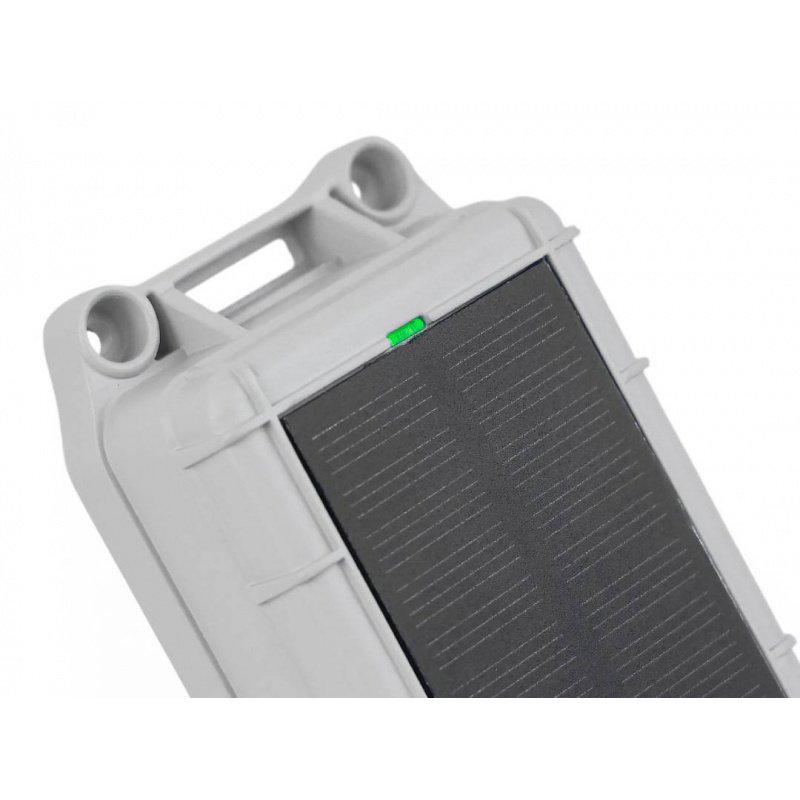

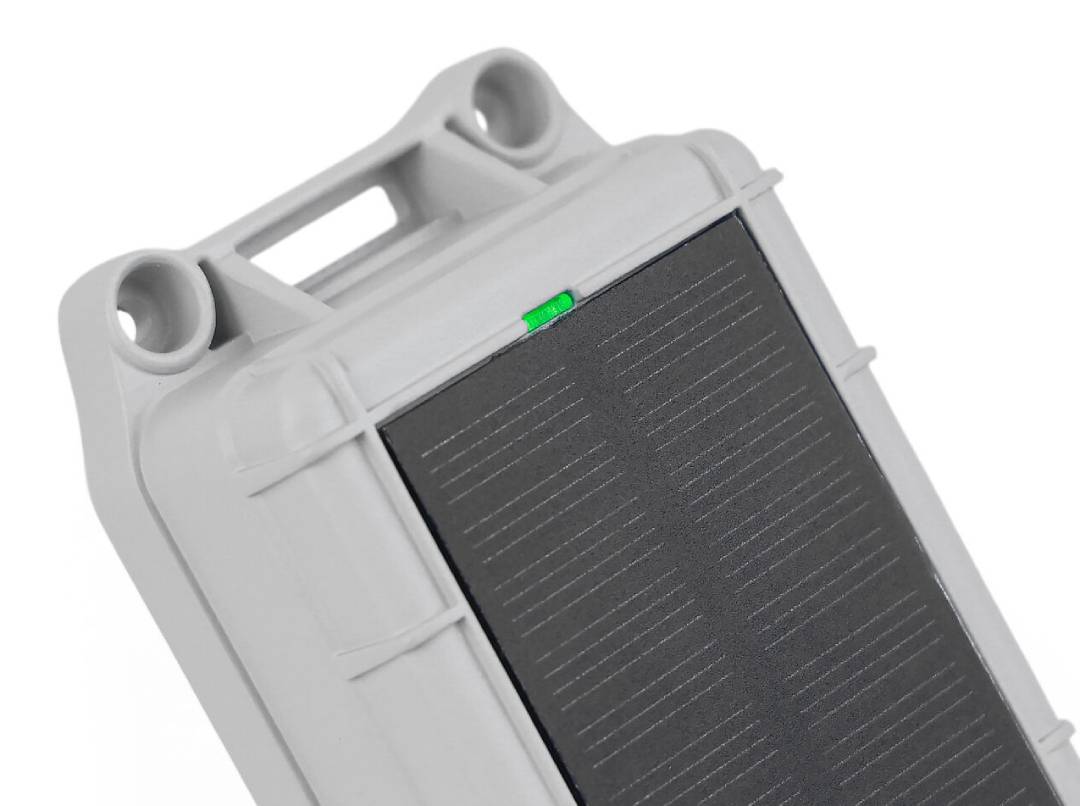

The built-in LED indicates the current operating status of the locator, facilitating its configuration and control during installation and operation.
Main features of the SenseCAP T2000-C industrial locator
- 0.5W solar panel : recharges the built-in battery when working outdoors
- 4000 mAh battery : enables long-term operation with adequate sunlight and properly selected reporting interval
- LoRaWAN connectivity : provides energy-efficient data transmission over 8 km in open space
- GNSS positioning : supports GPS, QZSS, GLONASS, BeiDou and Galileo systems
- Bluetooth scanning : supports device location inside buildings and around BLE infrastructure
- Offline memory : saves up to 1000 records in case of temporary loss of connection to the LoRaWAN network
- Automatic data upload : Sends saved records when coverage is restored
- Anti-tamper alarm : detects removal of the device from its mounting location and can trigger a top priority alarm
- 3-axis accelerometer : monitors movement, vibrations and unusual behavior of the tracked object
- Multiple working modes : supports periodic, event and standby modes
- IP67 housing : protects electronics from dust, rain and moisture
- SenseCraft Platform : Enables QR code activation, Bluetooth setup, map tracking, and alarm handling

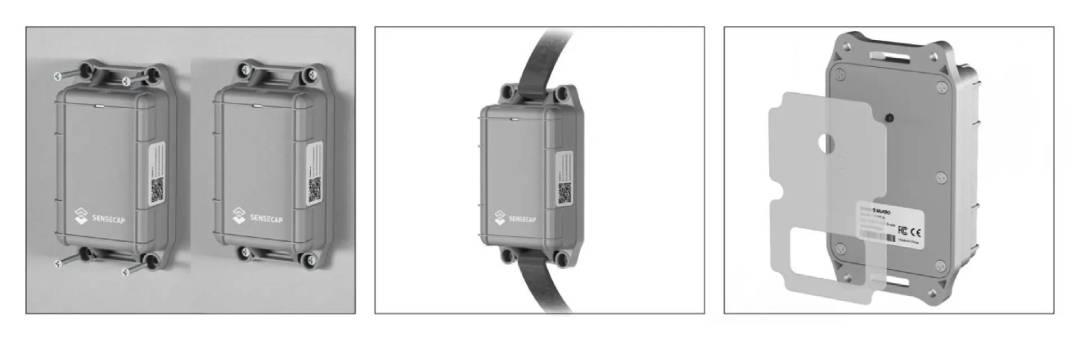

- Various mounting options : the device can be mounted with screws, a strap, a magnetic element or 3M tape
- LED : indicates the operating status of the locator
LoRaWAN connectivity in SenseCAP T2000-C
LoRaWAN enables the transmission of telemetry data over long distances with low power consumption. In open spaces, the communication range can exceed 8 km , making the locator suitable for use in large industrial areas, farms, logistics centers, and construction sites. Transmission does not require a SIM card , reducing the cost of operating multiple devices. In the event of a temporary loss of coverage, the locator saves data in its internal memory. The buffer can store up to 1,000 records , which will be automatically transmitted upon reconnection to the LoRaWAN network. This solution supports continuous monitoring even in areas with unstable coverage.
The combination of GNSS, Bluetooth and LoRaWAN enables continuous monitoring of assets in various environments.

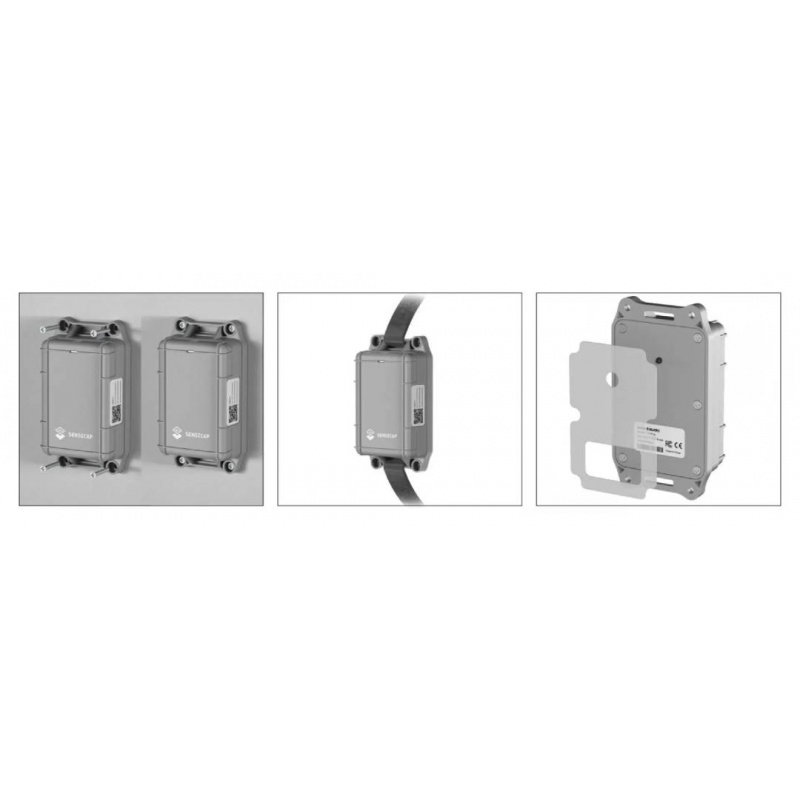

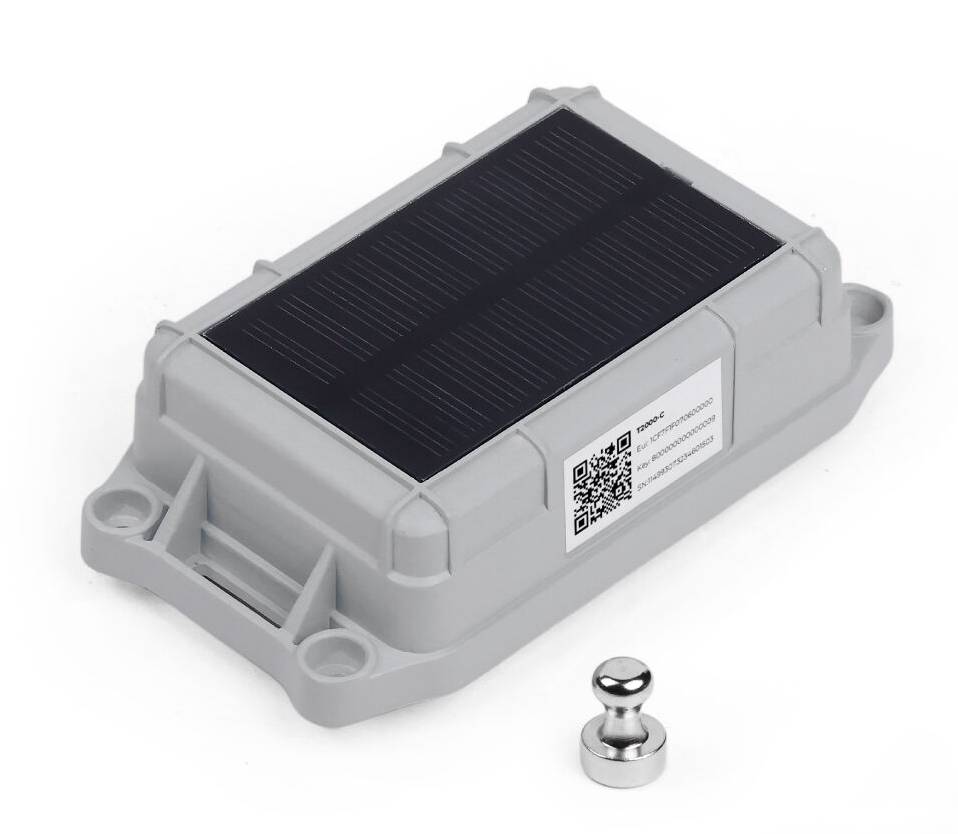

The SenseCAP T2000-C can be mounted using screws, a cable tie, or a magnetic element, making it easy to install on vehicles, machinery, and other valuable assets.
Rugged industrial design and SenseCAP T2000-C solar panel
The device's housing is made of PC with 10% glass fiber . This material increases resistance to impact, corrosion, and UV radiation , allowing the locator to be used outdoors for extended periods. The IP67 rating protects the electronics from dust and water. A built-in 0.5W solar panel recharges the 4000mAh lithium battery . An intelligent power management system reduces the frequency of manual charging, especially with regular sunlight and moderate reporting intervals. An operating temperature range of -20°C to 60°C allows the device to be used in a variety of outdoor conditions, while charging can occur at temperatures between 0°C and 45°C.
| SenseCAP T2000 Model Comparison | |||
|---|---|---|---|
| Parameter | SenseCAP T2000-A | SenseCAP T2000-B | SenseCAP T2000-C |
| Operating temperature | from -40°C to 85°C | from -40°C to 85°C | from -20°C to 60°C (charging: 0°C to 45°C) |
| Power supply | Built-in Li/SOCl₂ battery | Built-in Li/SOCl₂ battery | Built-in battery + 0.5W solar panel |
| Battery capacity | 8000 mAh | 8000 mAh | 4000 mAh |
| Positioning methods |
|
|
|
| Degree of protection | IP67, ATEX | IP67, ATEX | IP67 |
SenseCAP Asset Tracker T2000-C Technical Specifications
- LoRaWAN frequency range: 862 MHz to 930 MHz
- Supported LoRaWAN regions: EU868, US915, IN865, AU915, AS923, KR920, RU864
- LoRaWAN range: over 8 km in open space
- GNSS module: L76K
- Supported GNSS systems: GPS, QZSS, GLONASS, BeiDou, Galileo
- GPS L1 C/A and QZSS L1: 1575.42 MHz
- GLONASS L1: 1602.5625 MHz
- BeiDou B1: 1561.098 MHz
- Bluetooth module: nRF52840
- Bluetooth standard: Bluetooth 5.0
- WiFi positioning: no
- Motion sensor: 3-axis accelerometer
- Anti-tamper protection: physical anti-tamper button
- Operating modes: periodic, event, standby
- Local storage: up to 1000 records
- Power supply type: solar panel and battery
- Solar panel power: 0.5 W
- Battery type: Lithium INR18500np
- Battery capacity: 4000 mAh
- Operating temperature: -20°C to 60°C
- Charging temperature: 0°C to 45°C
- Housing material: PC with 10% glass fiber
- Protection class: IP67
- Certificates: FCC, CE

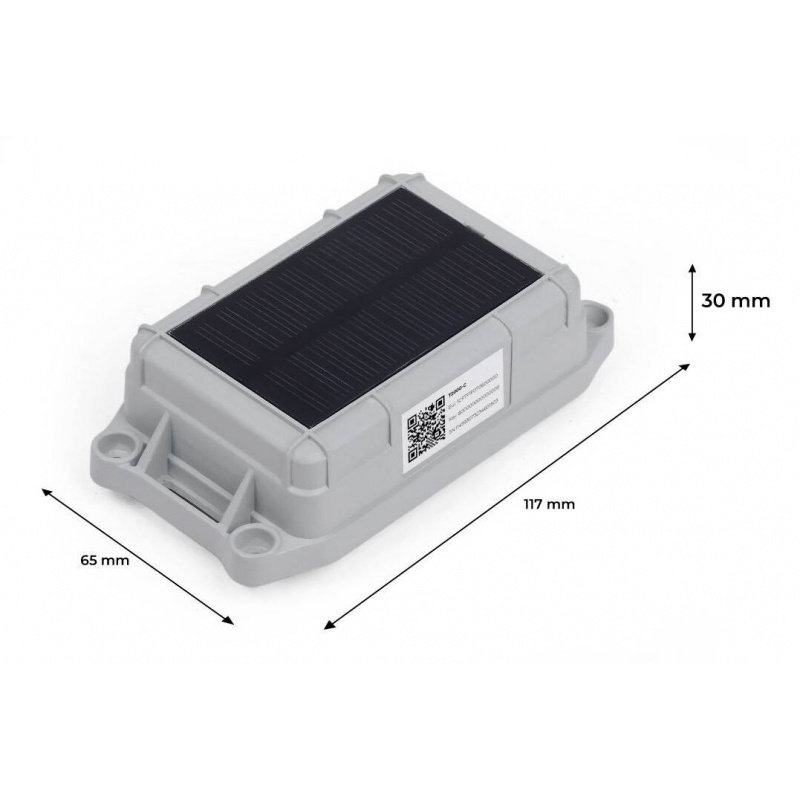

- Dimensions: 117 x 65 x 30 mm
- Weight: 180 g

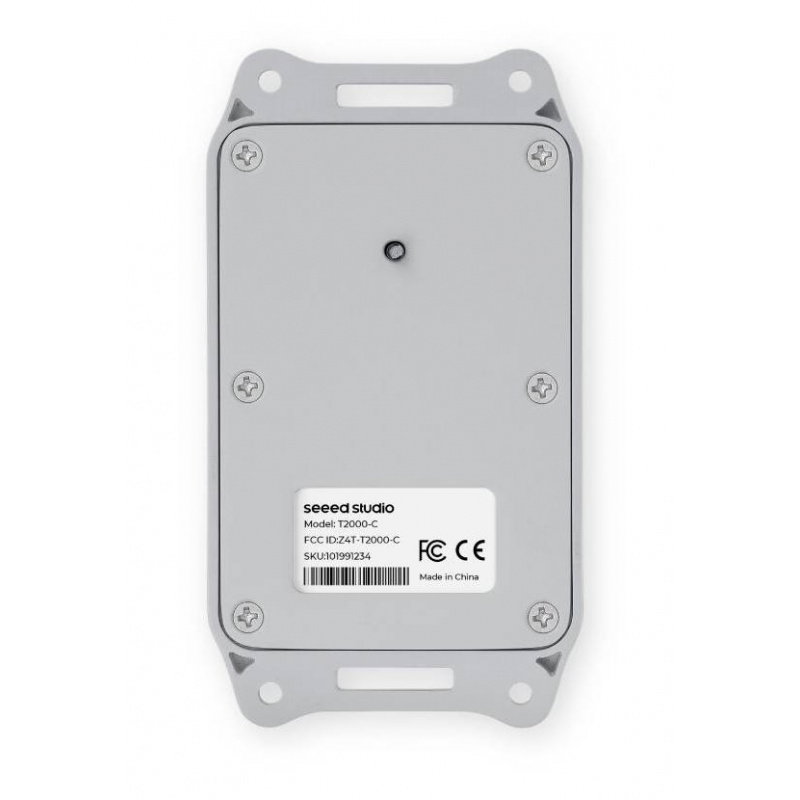

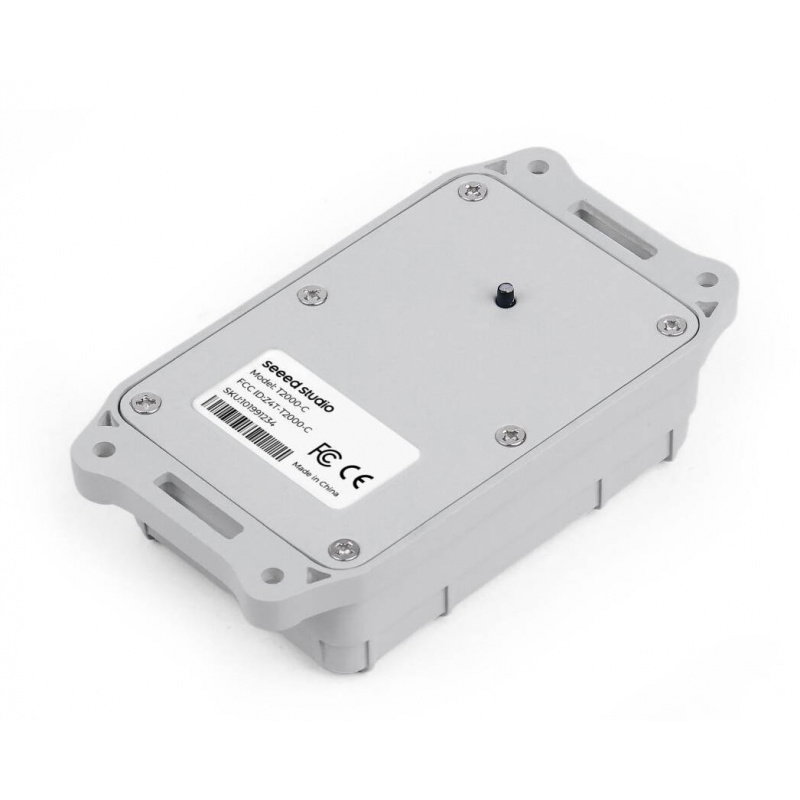

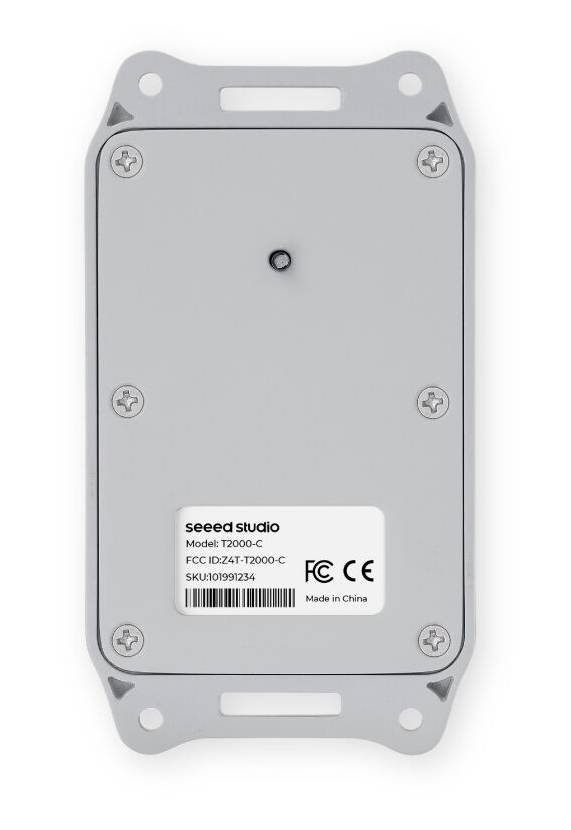

There is an anti-tamper button on the back of the housing that detects removal of the device from its mounting location and can immediately trigger an alarm.

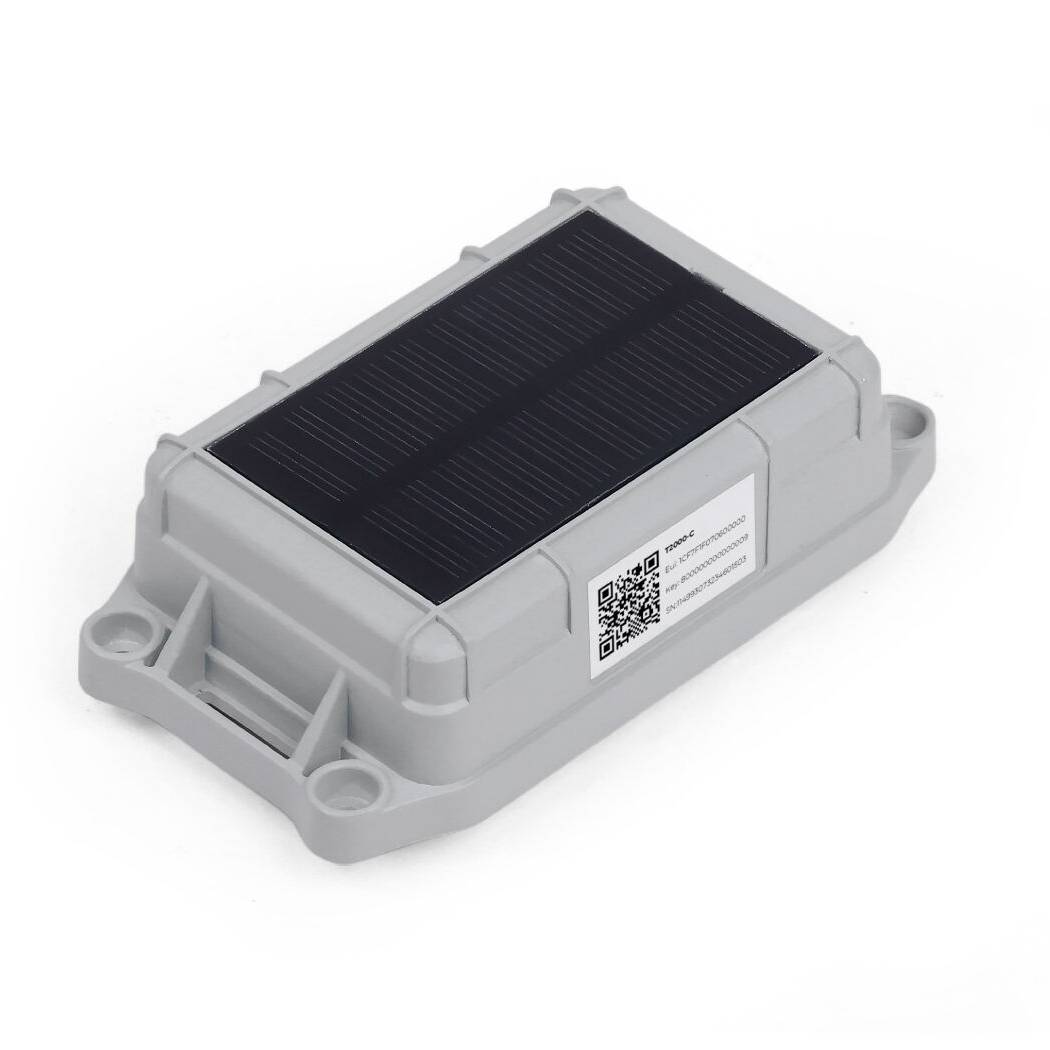

The IP67 rated housing is designed for long-term operation in demanding industrial environments.
SenseCAP T2000-C Kit Contents
- SenseCAP Asset Tracker T2000-C
- Magnetic element
- Mounting kit with screws
- 3M adhesive tape
- Quick Start Guide
