Product description: SenseCAP Asset Tracker T2000-B - industrial locator - LoRaWAN - Seeedstudio 100057727
The SenseCAP T2000-B enables reliable tracking of valuable assets both outdoors and indoors . It uses GNSS, Bluetooth scanning, and passive Wi-Fi scanning to determine position, allowing it to adapt its location method to environmental conditions. Data is transmitted via the energy-efficient LoRaWAN network without the need for a SIM card. The tracker is equipped with a 3-axis accelerometer and a physical anti-tamper button . Detection of disassembly, unusual movement, or strong vibrations can trigger an alarm and notification in the SenseCraft platform. The built-in memory stores up to 1,000 records , which will be automatically uploaded once the LoRaWAN connection is restored.

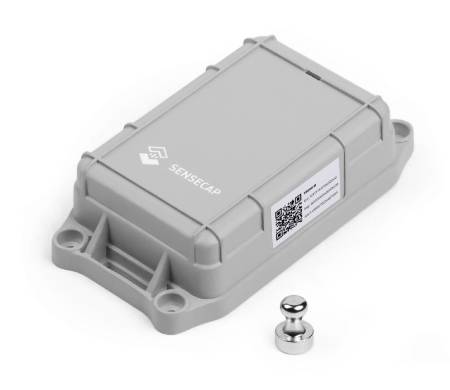

SenseCAP Asset Tracker T2000-B - industrial locator - LoRaWAN - Seeedstudio 100057727.

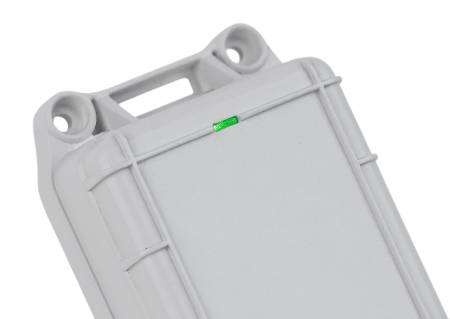

The built-in LED indicates the current operating status of the locator, facilitating its configuration and control during installation and operation.
Main features of the SenseCAP T2000-B industrial locator
- LoRaWAN connectivity : enables energy-efficient data transmission over 8 km in open space
- GNSS Positioning : Supports GPS, QZSS, GLONASS, BeiDou and Galileo systems for outdoor location
- Bluetooth scanning : Uses nearby BLE signals to assist with indoor positioning
- WiFi Scanning : The T2000-B detects the MAC addresses and signal strength of nearby access points
- 8000 mAh battery : provides over a year of operation at typical reporting settings
- Offline memory : saves up to 1000 records during temporary loss of LoRaWAN coverage
- Anti-tamper alarm : detects removal of the tracker from its mounting location and can trigger a high-priority alarm
- 3-axis accelerometer : monitors movement, vibrations and unusual behavior of the tracked object
- Multiple operation modes : Supports periodic, event, and standby modes to reduce power consumption
- IP67 housing : provides protection against dust and water when used in the field
- ATEX certification : increases the device's usability in appropriately classified industrial environments
- SenseCraft Platform : allows QR code activation, Bluetooth setup, map tracking and alarm management
- Various mounting methods : the locator can be attached with screws, a strap, a magnetic element or 3M tape
LoRaWAN, WiFi and ATEX Certification in the SenseCAP T2000-B
LoRaWAN enables the transmission of telemetry data over long distances with low power consumption. In open spaces, the communication range can exceed 8 km , making the device suitable for use in large industrial areas, construction sites, terminals, and farms. The absence of a SIM card helps reduce the cost of operating multiple locators. The T2000-B model also supports passive Wi-Fi and Bluetooth scanning. The device detects the MAC addresses and signal strength of nearby access points or BLE devices, and the data can be used by the application server to determine the location inside buildings. ATEX certification allows for the locator to be considered for use in appropriately classified environments with a risk of explosive atmospheres, in accordance with the certification documentation and installation requirements.

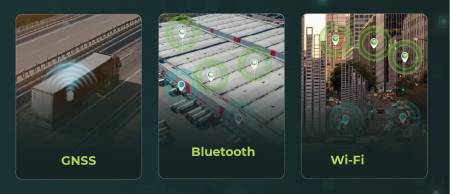

The SenseCAP T2000-B combines GNSS, WiFi and Bluetooth positioning with LoRaWAN communication to provide reliable tracking of machines, vehicles and equipment both outdoors and indoors.

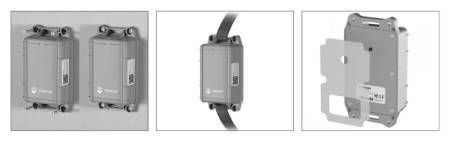

The SenseCAP T2000-B can be mounted using screws, a cable tie, or a magnetic element, making it easy to install on vehicles, machinery, and other valuable assets.
SenseCAP T2000-B's Rugged Industrial-Grade Design
The locator's housing is made of PC with 10% glass fiber . This material increases resistance to impact, corrosion, and UV radiation , supporting long-term outdoor operation. The IP67 rating protects the electronics from dust, rain, and moisture . The SenseCAP T2000-B can operate in temperatures from -40°C to 85°C , making it suitable for use in a variety of climates. A non-penetrating magnetic switch helps maintain the integrity of the structure. Mounting holes and additional accessories facilitate installation on machinery, vehicles, containers, and industrial equipment.
| SenseCAP T2000 Model Comparison | |||
|---|---|---|---|
| Parameter | SenseCAP T2000-A | SenseCAP T2000-B | SenseCAP T2000-C |
| Operating temperature | from -40°C to 85°C | from -40°C to 85°C | from -20°C to 60°C (charging: 0°C to 45°C) |
| Power supply | Built-in Li/SOCl₂ battery | Built-in Li/SOCl₂ battery | Built-in battery + 0.5W solar panel |
| Battery capacity | 8000 mAh | 8000 mAh | 4000 mAh |
| Positioning methods |
|
|
|
| Degree of protection | IP67, ATEX | IP67, ATEX | IP67 |
SenseCAP Asset Tracker T2000-B Technical Specifications
- LoRaWAN frequency range: 862 MHz to 930 MHz
- Supported LoRaWAN regions: EU868, US915, IN865, AU915, AS923, KR920, RU864
- LoRaWAN range: over 8 km in open space
- GNSS module: L76K
- Supported GNSS systems: GPS, QZSS, GLONASS, BeiDou, Galileo
- GPS L1 C/A and QZSS L1: 1575.42 MHz
- GLONASS L1: 1602.5625 MHz
- BeiDou B1: 1561.098 MHz
- Bluetooth module: nRF52840
- Bluetooth standard: Bluetooth 5.0
- WiFi module: ESP8684
- WiFi operating mode: passive scanning
- Motion sensor: 3-axis accelerometer
- Anti-tamper protection: physical anti-tamper button
- Operating modes: periodic, event, standby
- Local storage: up to 1000 records
- Power supply type: primary battery
- Battery type: Li/SOCl₂ ER18505
- Battery capacity: 8000 mAh
- Declared operating time: over 1 year, depending on positioning mode, reporting interval and operating conditions
- Housing material: PC with 10% glass fiber
- Protection class: IP67
- Operating temperature: -40°C to 85°C
- Certificates: FCC, CE, ATEX
- Dimensions: 117 x 65 x 30 mm
- Weight: 180 g

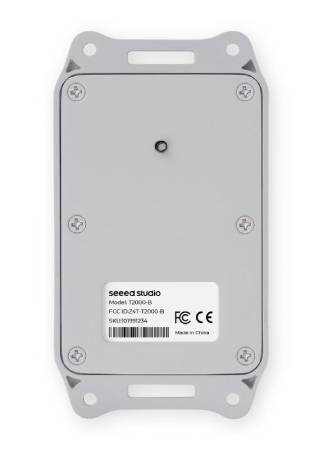

There is an anti-tamper button on the back of the housing that detects removal of the device from its mounting location and can immediately trigger an alarm.
The IP67 rated housing is designed for long-term operation in demanding industrial environments.
SenseCAP T2000-B Kit Contents
- SenseCAP Asset Tracker T2000-B
- Magnetic element
- Mounting kit with screws
- 3M adhesive tape
- Quick Start Guide
