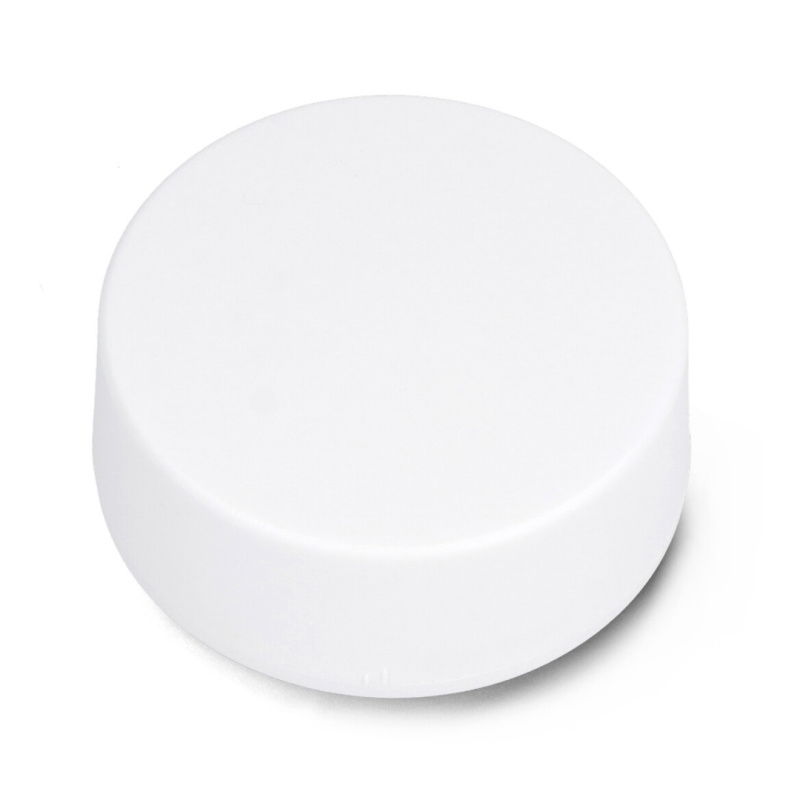

Product description: BC01 Indoor Bluetooth Beacon - indoor Bluetooth beacon for SenseCAP T1000 Tracker - Seeedstudio 113991194
A BLE Beacon is a small wireless device that periodically sends Bluetooth signals . These signals can be received by other Bluetooth-enabled devices, such as the SenseCAP T1000 Tracker . This allows the tracker to determine its distance from the beacon , enabling solutions for precise indoor positioning, asset tracking, and other location-based applications. The beacon offers a range of up to 120 meters in open space, with positioning accuracy of up to 2 meters , and a long battery life of up to 5 years . It is compatible with iOS 7.0+ and Android 4.3+ .
Also check out other Seeedstudio products in our offer!
BC01 Indoor Bluetooth Beacon - indoor Bluetooth beacon for SenseCAP T1000 Tracker - Seeedstudio 113991194.
BC01 Indoor Bluetooth Beacon provides a range of up to 120 meters in open space.Main Features of the BC01 Indoor Bluetooth Beacon
- Transmission range: offers a range of up to 120 meters in open conditions, enabling precise location indoors.
- Compatibility: Works with a wide range of devices, including the SenseCAP T1000 Tracker, allowing for flexibility in adapting to various location applications.
- Long battery life: It has a replaceable lithium battery that provides operation for over 5 years in the default configuration.
- Precise positioning: Thanks to BLE 5.0 technology, it offers accurate distance and positioning, allowing you to effectively monitor objects.
- Support for various operating systems: Compatible with iOS 7.0+ and Android 4.3+, making it easy to integrate with various devices and applications.
BC01 Indoor Bluetooth Beacon Interoperability with SenseCAP T1000 Tracker
The BC01 Indoor Bluetooth Beacon and the SenseCAP T1000 tracker work together to enable precise positioning both indoors and outdoors. The BC01 Indoor Bluetooth Beacon is a device that regularly emits Bluetooth signals, and the SenseCAP T1000 Tracker can receive them. By placing beacons in various locations, the SenseCAP T1000 tracker can detect these signals and determine its position . This solution enables the creation of advanced location and asset tracking systems, which are used in various industries, from logistics to property management. The cooperation between the beacons and the tracker enables asset monitoring and management , which helps improve operational efficiency and increase control over various processes.
The device provides very long battery life.
Technical specifications of the device
- Chip: nRF52
- Bluetooth protocol: BLE 5.0
- Transmission range: 120 m
- Transmit power: -30 dBm to 4 dBm, default value is 0 dBm
- Adv Interval: 100 ms to 10 s, default is 500 ms
- Battery: 2400 mAh lithium battery
- Operating temperature: -30°C to 60°C

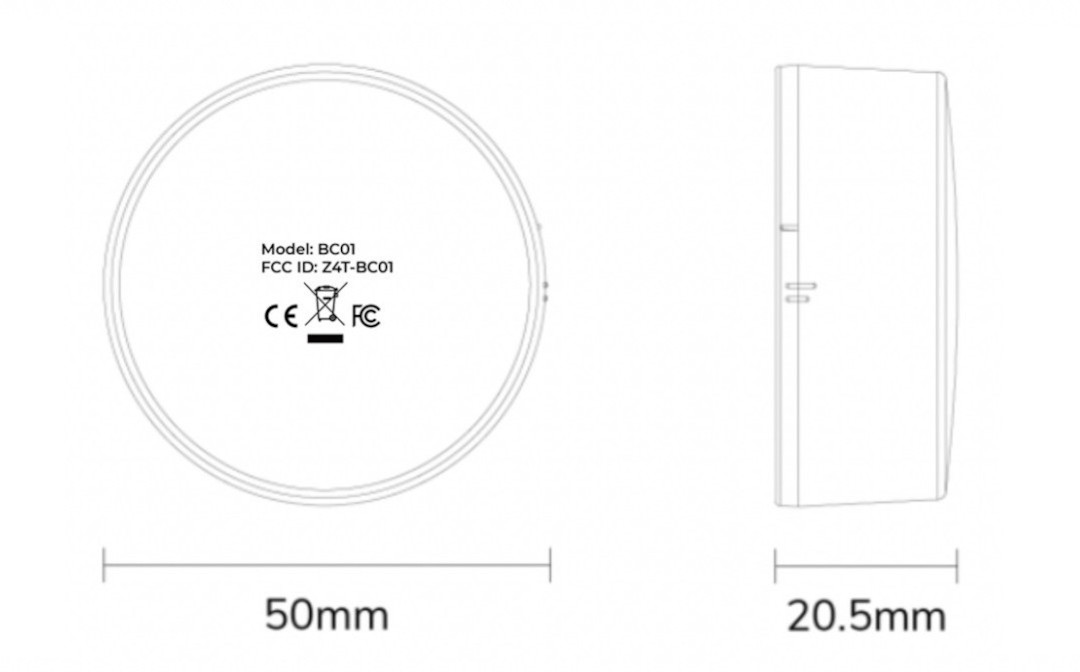

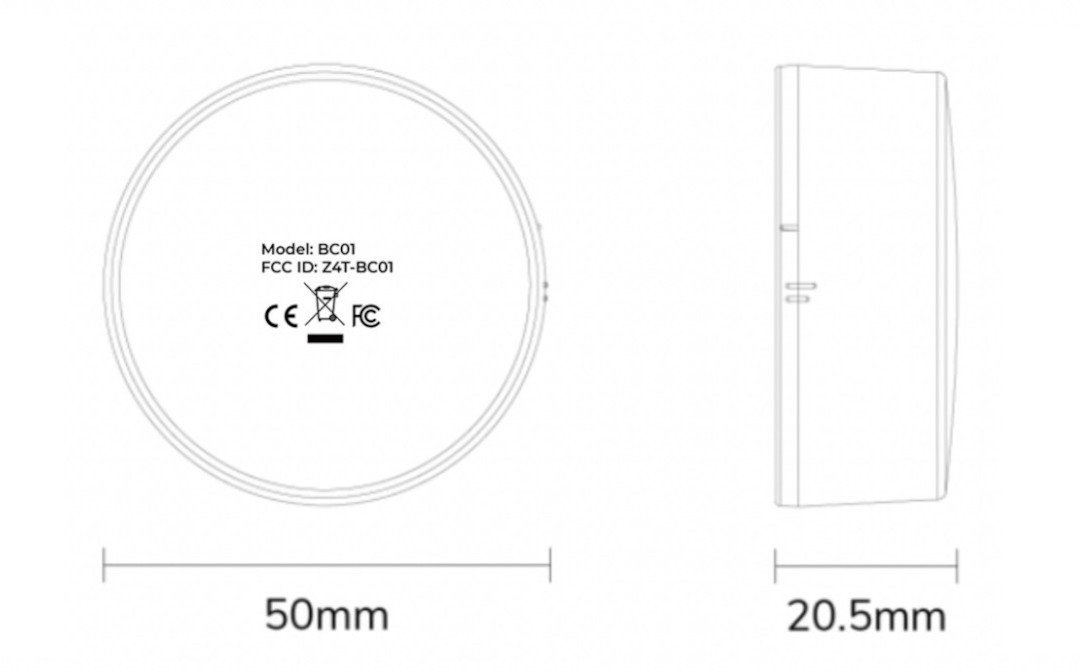

- Dimension: Φ50 x 20.5 mm
