Wio Tracker 1110 Dev Board - developer kit for Meshtastic - Seeedstudio 114993370

Index: SEE-25283 EAN: 5904422386207
Wio Tracker 1110 Dev Board is an advanced development kit designed to create low-power tracking devices based on the Meshtastic LoRa Mesh network. The Wio Tracker 1110 board is based on the Nordic nRF52840 BLE and Semtech LR1110 LoRa, making it an ideal solution for building reliable communication networks in places without access to telecommunications infrastructure.
Wio Tracker 1110 Dev Board - developer kit for Meshtastic - Seeedstudio 114993370
€32.50
€26.42 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: Seeedstudio

Product description: Wio Tracker 1110 Dev Board - Meshtastic development kit - Seeedstudio 114993370

Wio Tracker 1110 Dev Board by Seeedstudio is an advanced development board , ideal for electronics enthusiasts and professionals who need reliable solutions for tracking and communication in the field. Based on Nordic nRF52840 BLE and Semtech LR1110 technology for LoRa, it offers precise GPS positioning, real-time data display and the possibility of expanding with Grove modules . Thanks to its compatibility with Meshtastic software, the module enables the rapid creation of devices operating in mesh networks, ideal for monitoring environmental conditions in difficult terrain. The open hardware and software platform and the support of the Meshtastic community enable further development and adaptation to specific needs.

The manufacturer has prepared a detailed user guide that will help you get started with the kit.

Wio Tracker 1110 Dev Board - Meshtastic Development Kit - Seeedstudio 114993370

Wio Tracker 1110 Dev Board - developer board for Meshtastic - Seeedstudio 114993370.

Wio Tracker 1110 Dev Board - Meshtastic Development Kit - Seeedstudio 114993370

Plug-and-play development kit for building low-power Meshtastic trackers.

Special Features of the Wio Tracker 1110 Board

  • Support for Meshtastic technology, enabling the creation of wireless networks.
  • Compatible with over 300 Grove sensors, providing a wide range of adaptability to various monitoring and tracking needs.
  • Built-in temperature, humidity sensors, and a three-axis accelerometer to capture a variety of environmental and motion data.
  • A fully open platform, based on the LR1110 and nRF52840 ecosystems, offering unlimited application possibilities and open-source project development.

Examples of applications

  • Asset Tracking : Monitor the movement and location of valuable assets in real time while monitoring environmental conditions.
  • Outdoor Adventures : Creating Meshtastic devices for off-grid communication during mountaineering or camping trips, with location tracking and temperature and humidity monitoring.
  • Environmental monitoring : collecting and transmitting environmental data from remote areas, supporting environmental research and protection.

Wio Tracker 1110 Dev Board - Meshtastic Development Kit - Seeedstudio 114993370

Compatibility with the Grove ecosystem allows for easy expansion with more sensors and modules.

Component layout on the Wio Tracker 1110 board

Arrangement of elements.

Arrangement of components on the board

  1. Wi-Fi antenna
  2. LoRa Antenna
  3. Grove Digital Interface
  4. Grove Digital Interface
  5. Power LED
  6. Grove Digital Interface
  7. User LED
  8. Grove Port Power LED
  9. Battery connector
  10. USB Type-C connector
  11. User button
  12. Reset button
  13. I2C interface
  14. UART interface
  15. Grove Analog Interface
  16. Temperature and humidity sensor
  17. 3-axis accelerometer
  18. Bluetooth antenna
  19. GNSS antenna

Wio Tracker 1110 Dev Board Technical Specification

  • Power supply voltage: 5 V (USB 2.0 Type-C)
  • Battery connector: 3.7V
  • Interfaces: RFIO, GNSS antenna connector, LoRa antenna connector, USB Type-C
  • Grove Connectors: ADC x1, I2C x1, UART x1, Digital x3
  • Buttons: User (USER), Reset (RESET)
  • External Flash Memory: 4MB
  • LoRa and positioning with Semtech LR1110: (the kit uses only the LoRa RF transceiver)
    • LoRaWAN Protocol: V1.0.4
    • Frequency plan: 863 MHz to 928 MHz
    • Sensitivity: -125 dBm @ 125K/SF7, -141 dBm @ 125K/SF12
    • Maximum output power: 20 dBm
    • Positioning technologies: GNSS (GPS/BeiDou), WiFi Sniffer
    • Range: 2 km to 10 km (depending on antenna and environment)
  • Bluetooth (Nordic nRF52840):
    • Bluetooth version: 5.3
    • Flash Memory: 1MB
    • RAM: 256KB
    • Protocol: Bluetooth LE, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks
    • Maximum output power: 6 dBm
  • Built-in sensors - temperature and humidity sensor (SHT41):
    • Temperature range: -40°C to 85°C, accuracy ± 0.2°C
    • Humidity range: 0% RH to 100% RH, accuracy ±1.8% RH
  • Built-in sensors - 3-axis accelerometer:
    • Range: ±2g, 4g, 8g, 16g
    • Frequency response: 0.5 Hz to 625 Hz
    • Sensitivity (LSB/g): 1000 (±2 g) to 83 (±16 g)
Wio Tracker 1110 Dev Board - Meshtastic Development Kit - Seeedstudio 114993370

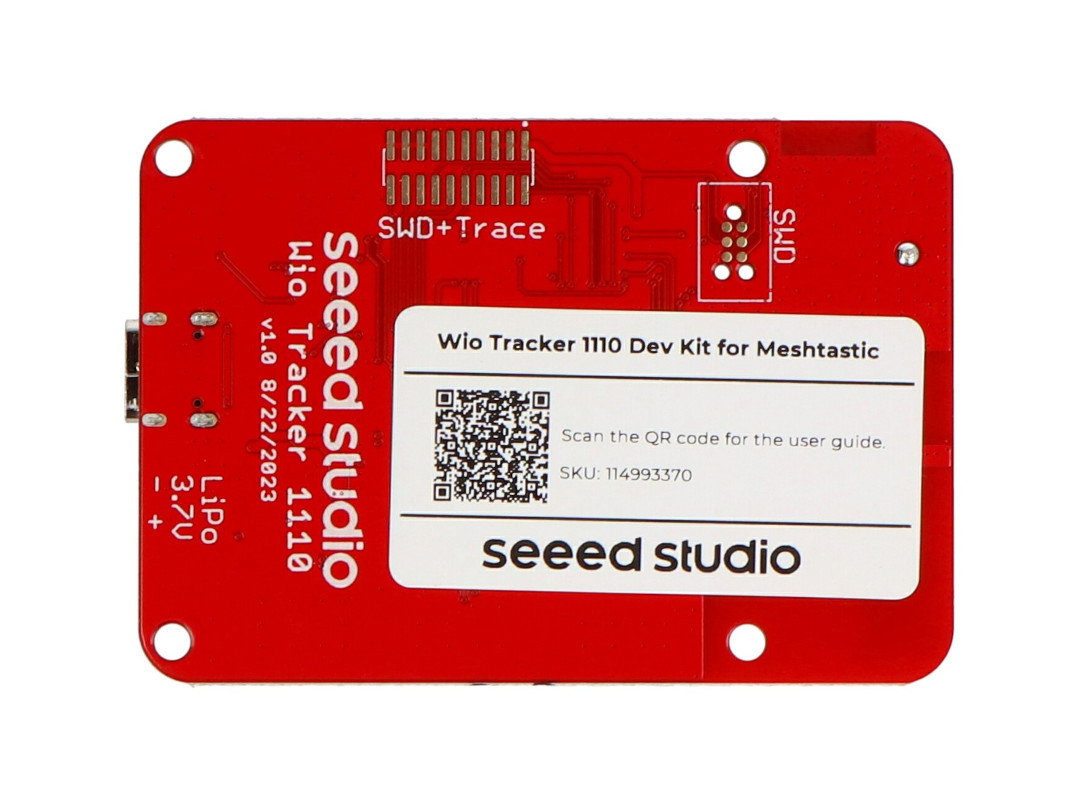

Wio Tracker 1110 board based on Nordic nRF52840 and Semtech LR1110.

Wio Tracker 1110 Dev Board - Meshtastic Development Kit - Seeedstudio 114993370

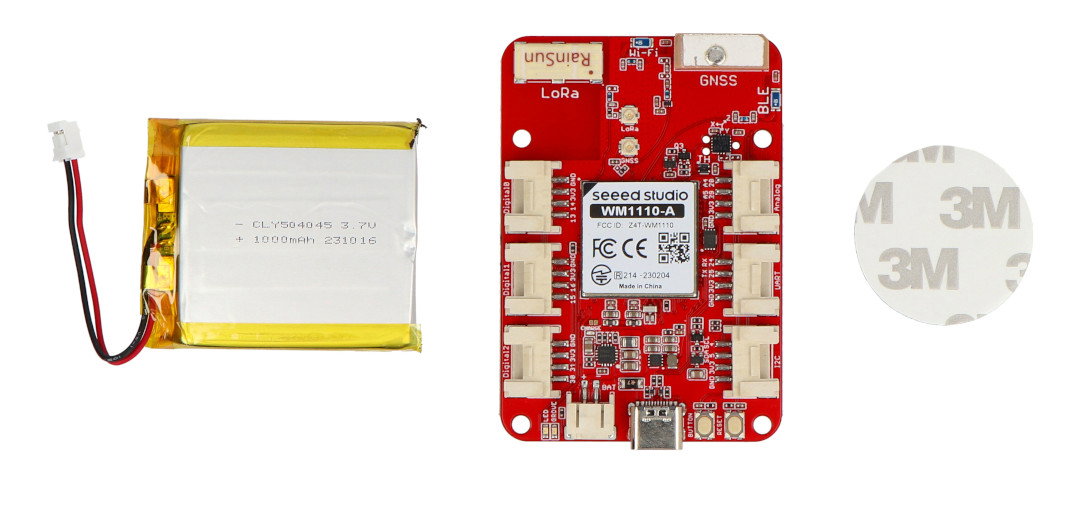

Items included in the set.

Kit Contents

  • Wio Tracker 1110 Dev Board x1
  • Li-Pol battery x1
  • Mounting stickers x1

Voltage to 5.0 V
Voltage from 5.0 V
UC - Connector USB typ C
Package width 7 cm
Package height 11 cm
Package depth 3.2 cm
Package weight 0.072 kg
