Product description: Portenta UWB Shield - UBW Truesense DCU150 RTLS module for Portenta C33 - Arduino ASX00074
Expand the capabilities of your Arduino projects with the Portenta UWB Shield —a specialized UWB communications shield designed for precise positioning, ranging, and industrial automation. The Truesense DCU150 module, based on the NXP Trimension SR150 chip, provides stable and fast data transmission in the 6.24 GHz to 8.24 GHz band. With integrated PCB antennas and two high-density 80-pin connectors, the shield works seamlessly with the Portenta C33 board , enabling quick installation and reliable operation. It can function as both a base station and an endpoint device, making it a versatile solution for modern IoT systems.

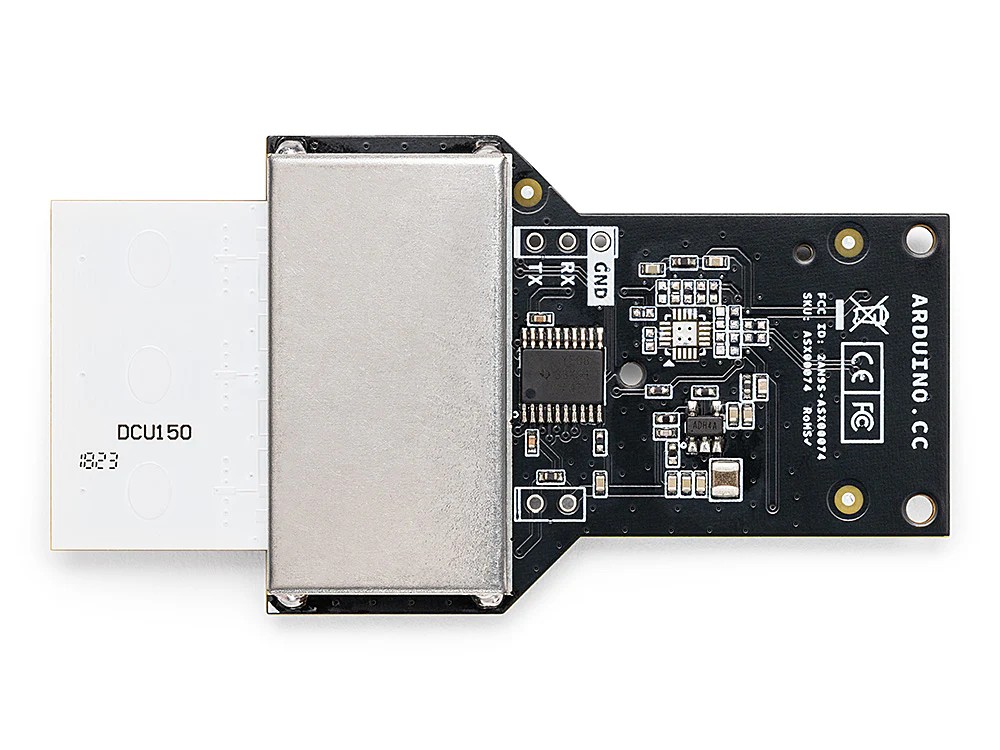

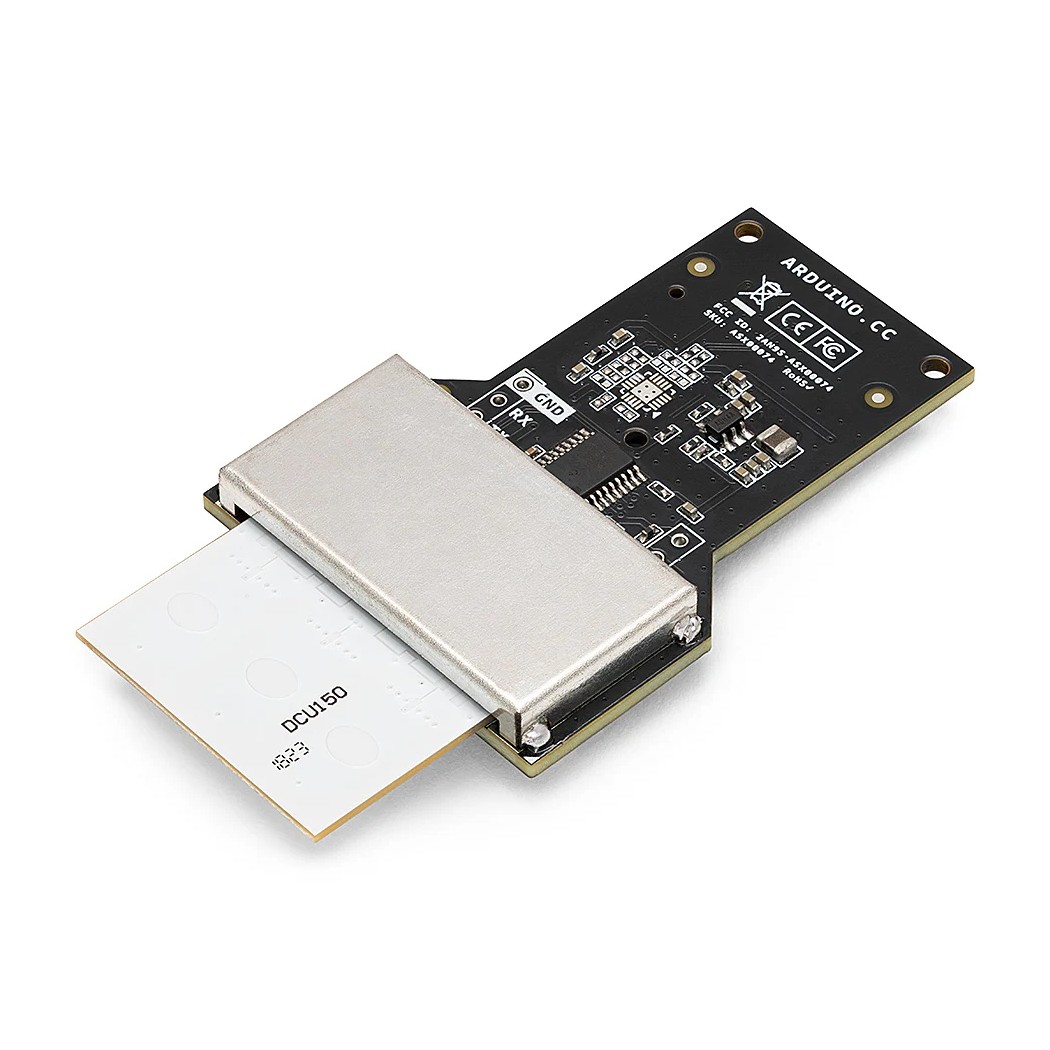

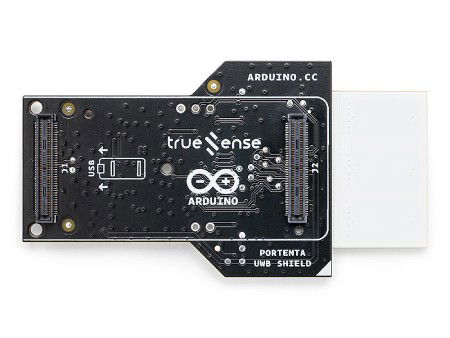

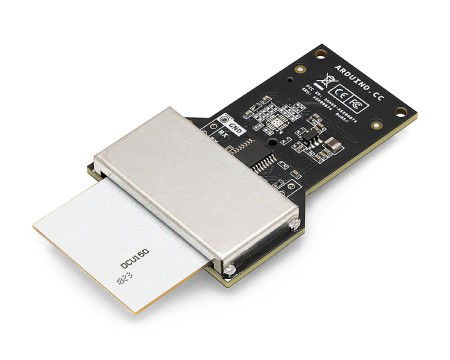

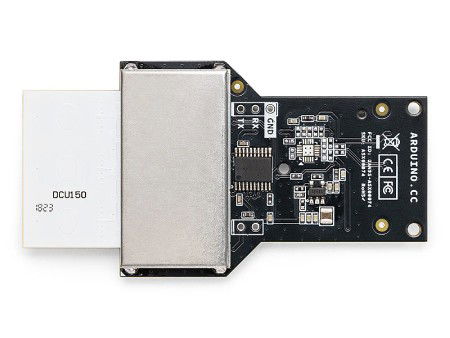

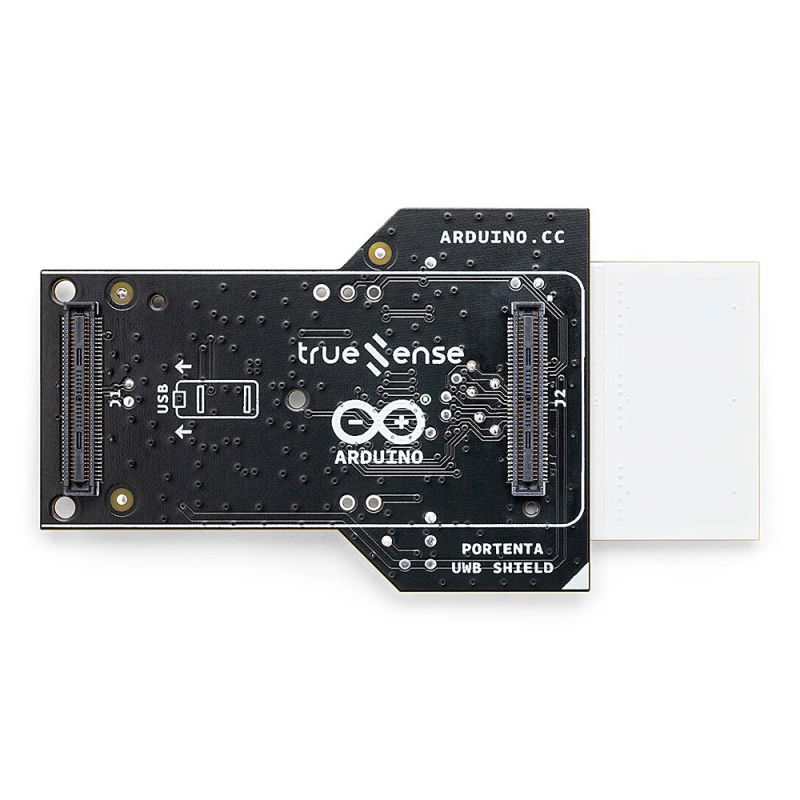

Portenta UWB Shield - UBW Truesense DCU150 RTLS module for Portenta C33 - Arduino ASX00074.
The overlay is designed to seamlessly integrate with Portenta C33.
Main features of Portenta UWB Shield
- Dual-function: operates as a UWB base station or client (localized) device, increasing design flexibility
- Precise location: supports RTLS and 2D Ranging
- Easy integration: compatible with Portenta C33 via 2x 80-pin connectors
- Three PCB antennas: integrated without the need for additional wiring
- Seamless expansion: scalability of IoT systems using UWB technology
- 3.3V power supply: directly from the Portenta main board

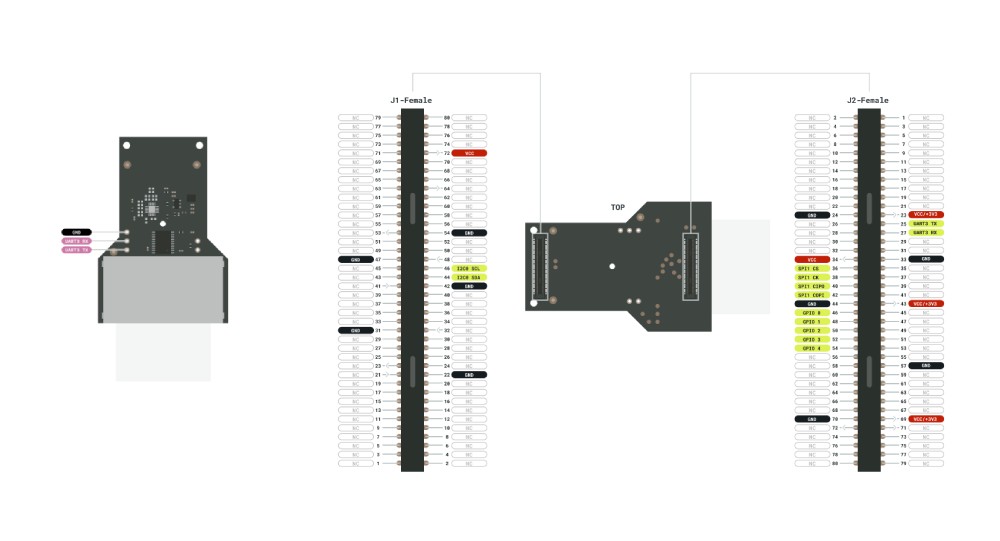

Pinouts and compatibility

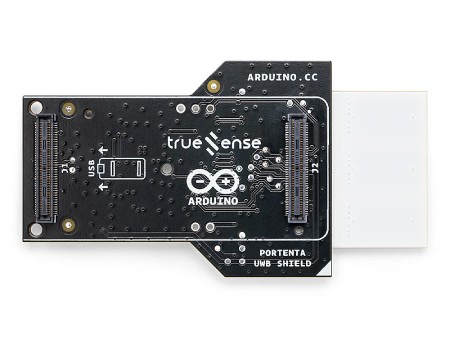

The Portenta UWB Shield uses two high-density 80-pin connectors , ensuring full compatibility with the Portenta C33 platform. This allows for power, data, and control transmission without the need for additional cables . The module's design is optimized for Arduino Pro systems, enabling direct integration with existing Arduino hardware and software infrastructure.

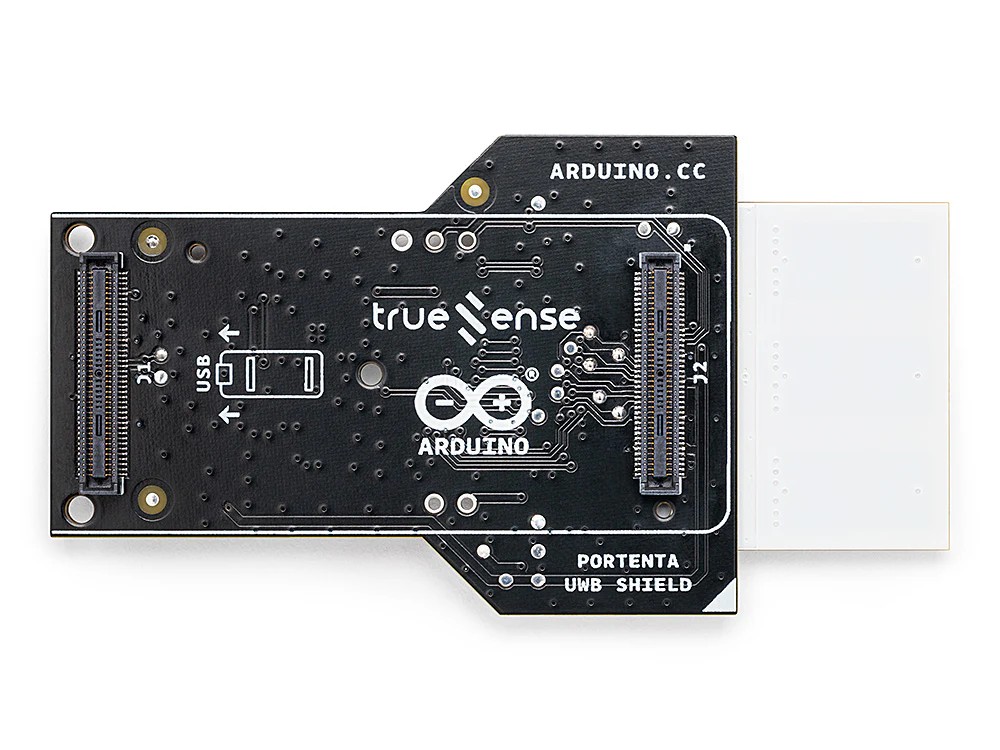

Portenta UWB Shield is based on the Truesense DCU150.
Software and libraries
The Portenta UWB Shield can be programmed using the Arduino IDE , Arduino CLI , and the online Arduino Cloud Editor . The manufacturer provides dedicated libraries and tutorials on GitHub and in the official Arduino documentation. RTLS, 2D Ranging, UWB communication, and remote monitoring are supported. Ready-made programming examples make integrating the shield into IoT projects quick and efficient.
Practical applications
- Warehouse logistics: precise tracking and real-time route optimization
- Access systems: automatic door opening based on user position
- Interactive environments: triggering actions depending on the user's proximity
- EV Charging: Automatically initiates charging based on vehicle position
- Secure Item Tracking: Protect your assets with precise location tracking
Enables bidirectional distance measurement and real-time location services.
The shield is powered by 3.3 V DC from the Portenta board.
Portenta UWB Shield technical specifications
- UWB module: Truesense DCU150 based on NXP Trimension SR150
- Frequency range: 6.24 GHz to 8.24 GHz
- Supported channels: 5, 6, 8, 9
- Operating mode: 2D Ranging
- Number of antennas: 3 integrated PCB antennas
- EIRP Output Power: 14.1 dBm at CH9
- Power supply: 3.3 V DC from the main board
- Interface: 2x high density 80-pin connectors
- Operating temperature: -30°C to 85°C
- Dimensions: 53.4 x 37.5 x 9 mm

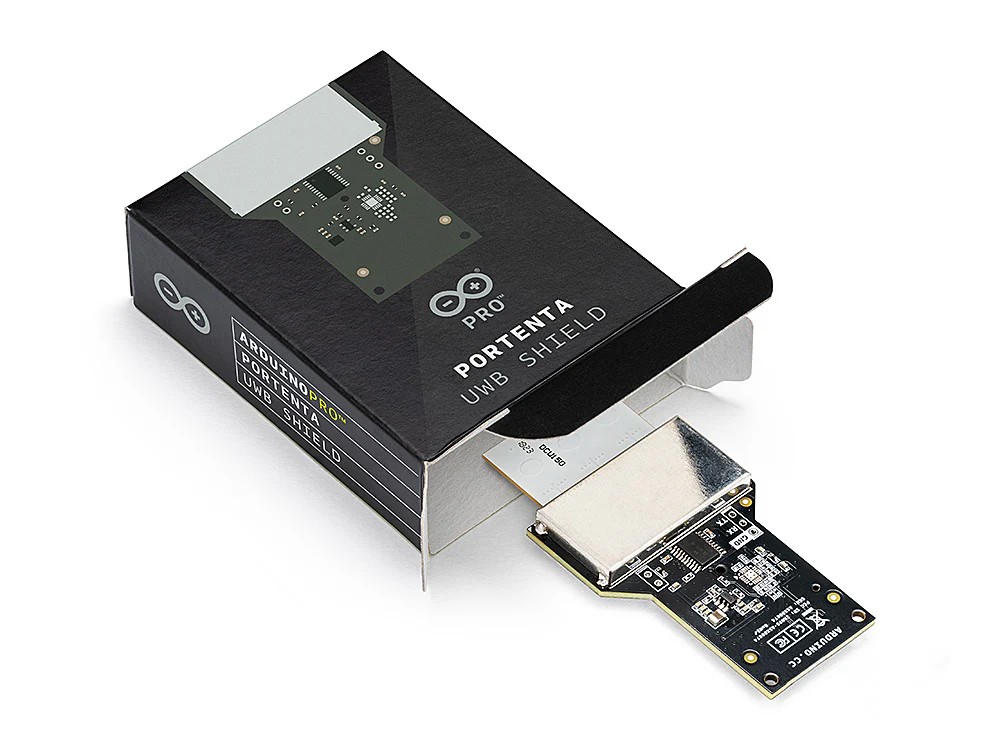

Kit contents
- 1x Arduino Portenta UWB Shield
