Product description: Arduino Portenta C33 - ABX00074
The Arduino Portenta C33 offers high performance thanks to the Renesas ARM Cortex M33 microcontroller. Supporting WiFi and Bluetooth Low Energy connectivity, it stands out as an ideal solution for IoT gateways, remote control systems, fleet management and process tracking. It provides industrial-grade security at the hardware level, and also allows you to perform over-the-air firmware updates using the Arduino IoT Cloud or third-party services. The board supports MicroPython and other high-level programming languages.
The Portenta C33 enables rapid deployment of AI-powered projects by leveraging a wide range of ready-to-use software libraries and available Arduino sketches, as well as widgets that display real-time data on Arduino IoT cloud-based dashboards. The board is compatible with the Portenta and MKR series.

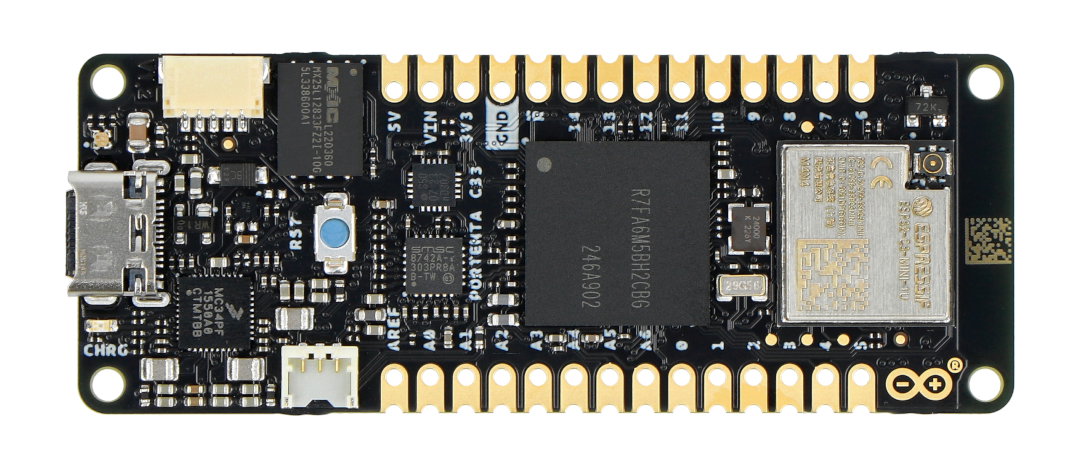

Arduino Portenta C33 - ABX00074.

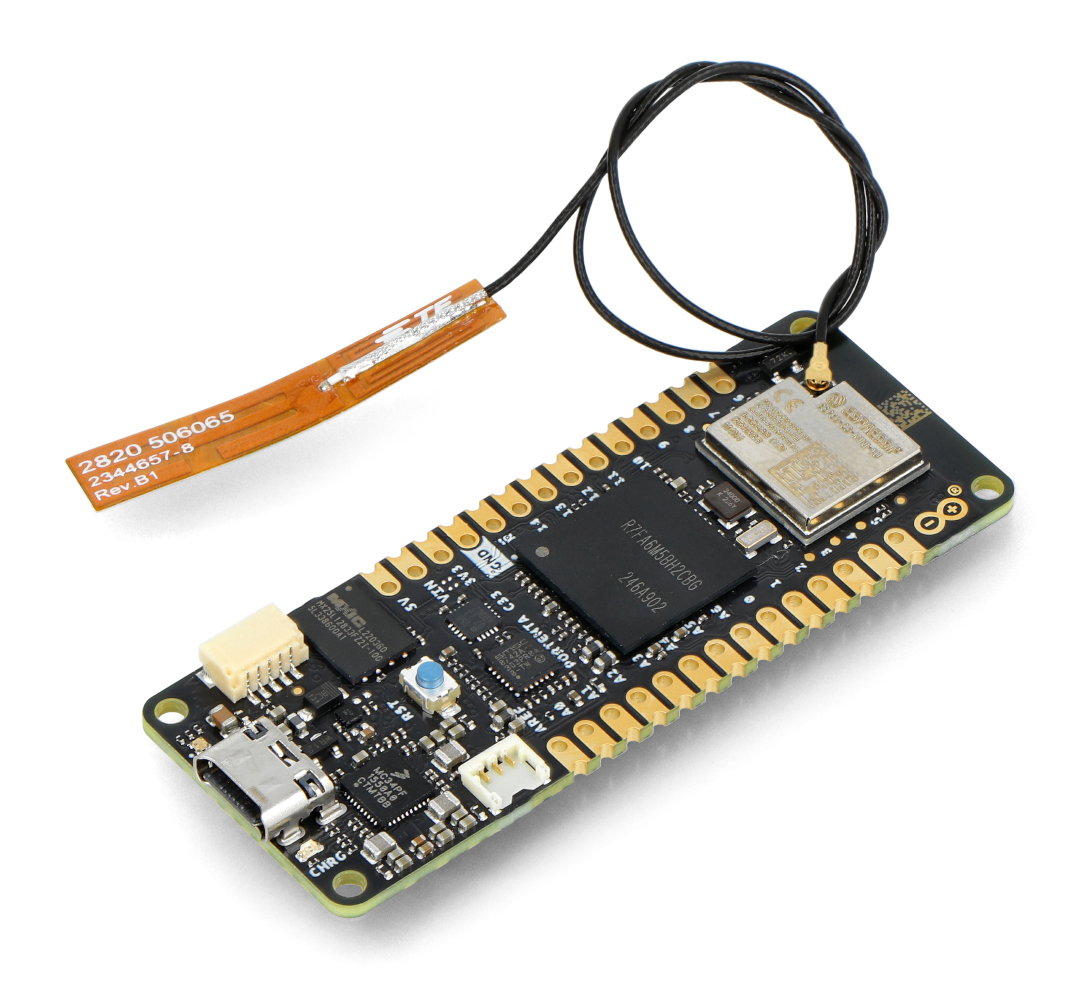

Arduino Portenta C33 with WiFi and Bluetooth - ESP32-C3-Mini-1U.Main features of the Arduino Portenta C33
- Portenta family format - densely spaced pins and MKR-style connectors ensure compatibility with the Arduino Portenta and MKR ecosystems, making the Portenta C33 very versatile.
- Renesas R7FA6M5BH2CBG microcontroller - a board based on the Renesas R7FA6M5BH2CBG 32-bit ARM Cortex M33 microcontroller, which offers high performance, low power consumption and advanced security features.
- Espressif ESP32-C3-Mini-1U WiFi/Bluetooth Chip - A chip with low power consumption, high performance, and various peripheral interfaces, making it a well-suited option for battery-powered IoT devices that require long battery life and real-time data processing .
- NXP SE050C2 security chip - an element that secures the storage and processing of confidential data and the management of cryptographic keys. Provides protection against physical and software attacks.
- MicroPython Support - The Portena C33 can be programmed with MicroPython and other high-level programming languages, offering rapid prototyping, resource efficiency, and a Python-based development environment for IoT applications.
- Low Power Consumption - The Arduino Portenta C33 is designed with low power consumption in mind, making it perfect for battery-powered IoT devices that require long battery life. The microcontroller used is designed with energy efficiency in mind, allowing real-time processing tasks to be performed with minimal power consumption.
Key advantages of Portenta C33
- Ideal for low-cost IoT applications with WiFi/Bluetooth LE connectivity
- It supports MicroPython and other high-level programming languages
- It offers industry-grade hardware-level security and secure OTA firmware updates
- It uses ready-to-use Arduino software libraries and sketches
- Ideal for monitoring and displaying real-time data on dashboards based on Arduino IoT Cloud widgets
- Compatible with Arduino Portenta and MKR families

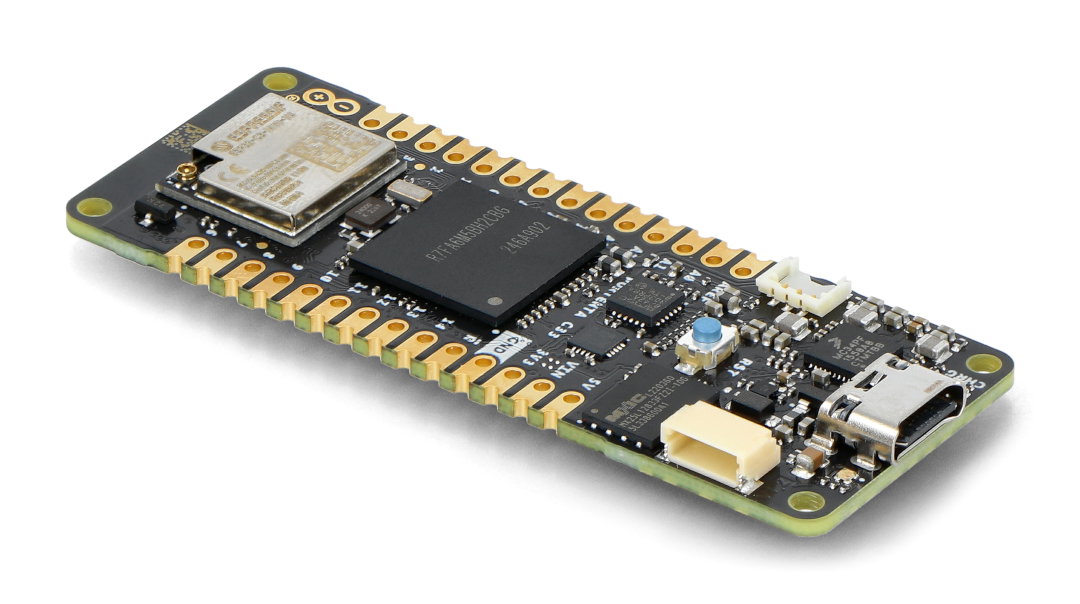

Arduino Portenta C33 equipped with a powerful Renesas microcontroller.| Arduino Portenta C33 specification | |
|---|---|
| Microcontroller | Renesas R7FA6M5BH2CBG Arm® Cortex®-M33 with embedded RTC |
| USB connector | USB Type-C |
| Portent pins |
|
| MKR pins |
|
| WiFi chip | ESP32-C3-Mini-1U |
| WiFi | 2.4GHz (802.11b/g/n) |
| Bluetooth | LowEnergy 5.0 |
| Ethernet chip | LAN8742AI-CZ-TR |
| Ethernet interface | RMII 10/100Mbps (PHY) |
| ADC converter |
|
| DAC converter |
|
| Security chip | NXP® SE050C2 |
| Communication |
|
| working voltage | 3.3V |
| Input voltage (VIN) | 5V |
| Battery supported | Li-Po / Li-Ion 3.7V |
| Battery connector | JST 3-pin, pitch 1.2 mm |
| Timing | 200MHz |
| Internal storage | 2MB Flash, 512KB RAM |
| External memory | 16MB (QSPI flash) |
| Debug interface | JTAG / SWD |
| Dimensions | 66.04 x 25.4mm |
