Product description: Arduino Portenta Breakout - ASX00031

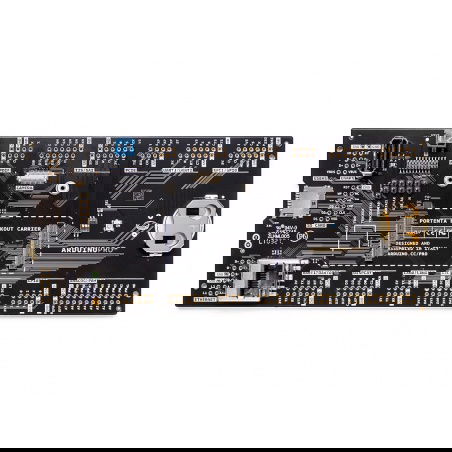

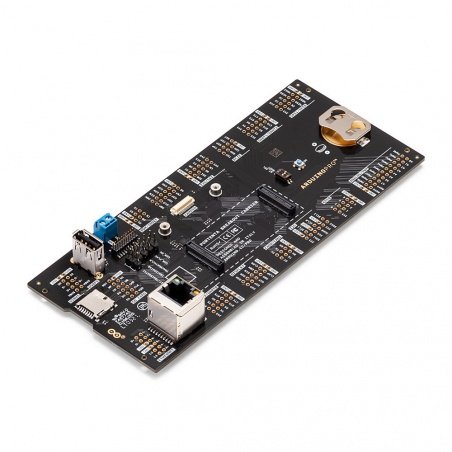

This board is extending capabilities ofArduino Portentamodule with additional connectors and leads. Portenta Breakout module is equipped with power switch, DIP switch used to select Arduino Portenta boot mode, as well asseries of connectors: USB A, RJ5, microSD, OpenMW, MIPI 20T JTAG. On the board, there is alsoRTC chipwith CR2032 battery slot,screw connectorfor power supply and all Arduino Portenta module pins.
Application examples of Portenta Arduino extension
- Product development: the Portenta Breakout module reduces development time for industrial-grade automation solutions based on Portenta's Arduino.
- OpenMV: the Portenta Breakout board includes a connector for connecting an OpenMV Global Shutter camera, allowing you to quickly design vision applications with Portenta boards.
- Education: the Portenta Breakout can be used as an educational tool for industrial grade control and embedded systems.

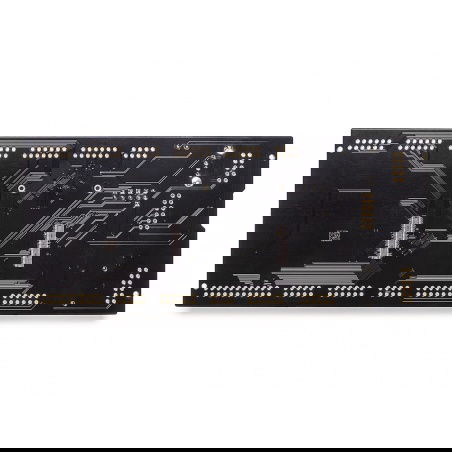

Arduino Portenta Breakout.
Expansion Module - Arduino Portenta Breakout.Main features of Arduino Portenta Breakout
- Power button
- DIP type switch to change the startup mode
- Connectors:
- USB A
- RJ45 GB/s Ethernet
- microSD cardslot
- OpenMV MIPI 20T JTAG camera slot with tracking capability
- Power supply:
- CR2032 battery slot for RTC chip
- terminal strip
- I/O:
- all Arduino Portent signals are brought out on goldpin pins
- Compatibility:
- standard Portenta High Density connector pinouts
Arduino Portenta Breakout board specifications
| Specification | |
|---|---|
| USB port | USB A |
| Ethernet | RJ45 1000 MB/s |
| Memory slot | microSD |
| Camera connector | OpenMV MIPI 20T JTAG |
| Connectors | HD male / female |
| RTC | CR2032 |
| Dimensions | 164 x 72 mm |
| Weight | 69 g |
