Product description: Arduino Pro 4G - GNSS Global - LTE Cat.4 mini PCIe module for Arduino Portenta - TPX00200
Arduino Pro 4G Module GNSS Global is an advanced communication solution that extends the capabilities of Arduino Portenta devices with global LTE Cat.4 connectivity with 2G / 3G support. The mini PCIe module is equipped with a Quectel EG25-G modem based on the Qualcomm MDM9x07 chipset, ensuring fast data transfer, reliability and long-distance coverage. The built-in GNSS supports GPS , GLONASS, Galileo, BeiDou and QZSS systems, providing precise navigation. Thanks to the possibility of integration with Arduino Cloud, it enables remote monitoring, diagnostics and software updates, making it ideal for Smart City, building automation, fleet management and IoT systems.
The manufacturer has prepared a detaileduser guide that will help you get started with the module - check it out!

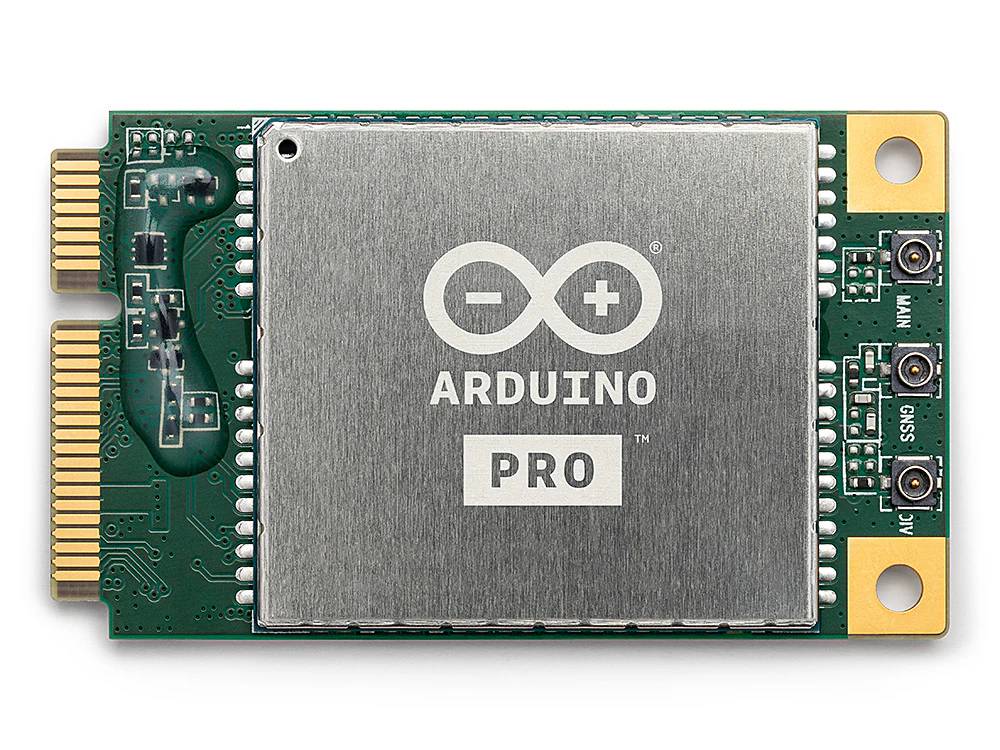

Arduino Pro 4G - GNSS Global - LTE Cat.4 mini PCIe module for Arduino Portenta - TPX00200.
The Arduino Pro 4G is also backward compatible with 2G and 3G networks.Arduino Pro 4G Special Features
- Adds 4G LTE and GNSS navigation capabilities to Portenta devices
- Provides reliable and fast data transfer in difficult conditions and remote locations
- It works effectively inside and outside buildings, allowing for versatile use.
- Allows you to change the connection technology without having to replace the motherboard
- It is compatible with networks in many countries thanks to support for different 4G bands
- Sends SMS and real-time notification configurations in emergency situations
- Compact and widely used mini PCIe form factor enables easy integration
Arduino Pro 4G Connectivity with Arduino Portenta
Arduino Pro 4G works seamlessly with Portenta series devices , expanding their communication capabilities. Integration with Arduino Cloud enables real-time device monitoring, error analysis and software updates. SMS and real-time notification functionality increases the efficiency of critical applications.
Offers the ability to connect to devices via Arduino Cloud.

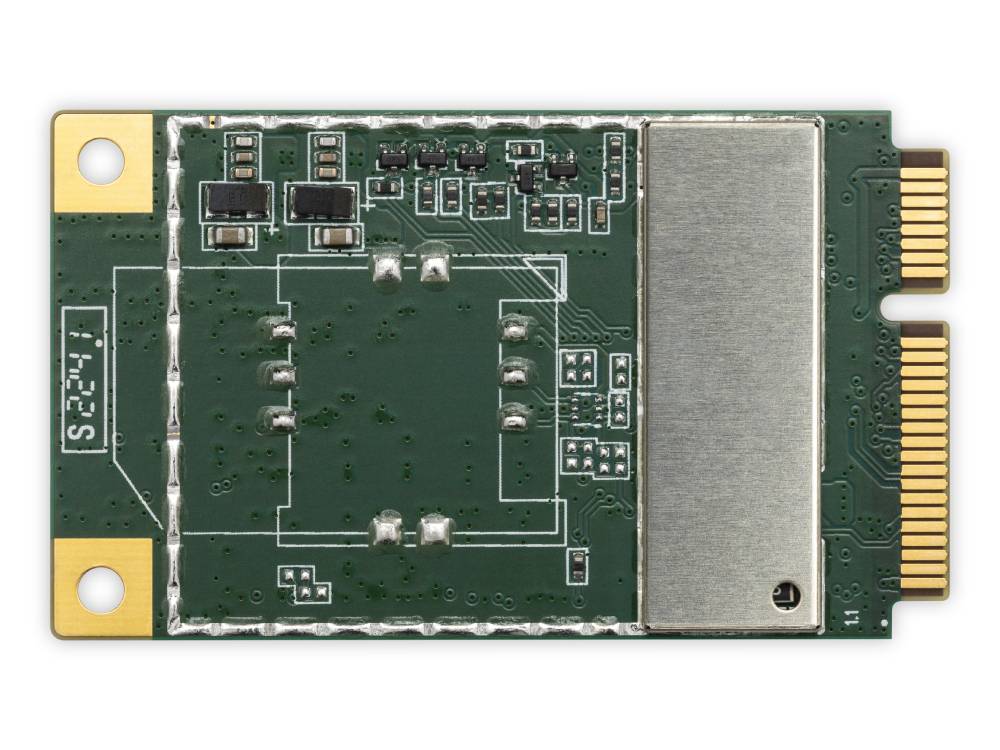

Module in the form of mini PCIe.Examples of using Arduino Pro 4G
- Smart City : monitoring air quality, lighting and road traffic
- Building Automation : Tracking Deformation, Temperature and Humidity
- Fleet management : real-time vehicle location and diagnostics
- Remote maintenance : diagnostics and repair of devices without the need for physical presence
- IoT Systems : Remote Monitoring and Control of Devices
Technical specification of the module
- Model: Arduino Pro 4G GNSS Module Global
- Region of operation: global
- Modem: Quectel EG25-G
- Chipset: MDM9x07 (Qualcomm)
- LTE: LTE CAT4 4G with 2G/3G support
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS with NMEA 0183 protocol support
- Interfaces:
- USB
- UART
- PCM/I2C
- Connector: mini PCIe, PCI Express Mini Card 1.2 compliant
- Supported networks: LTE Cat. 4 (CAT4) 4G, 2G /3G
- Supply voltage: 3 V to 3.6 V DC
- Typical supply voltage: 3.3 V DC
- Max data rates: LTE-FDD: 150 Mbps (DL), 50 Mbps (UL); LTE-TDD: 130 Mbps (DL), 30 Mbps (UL)
- Antenna: No antenna included (must purchase compatible antenna separately)
The global version supports GNSS using the NMEA 0183 protocol.
