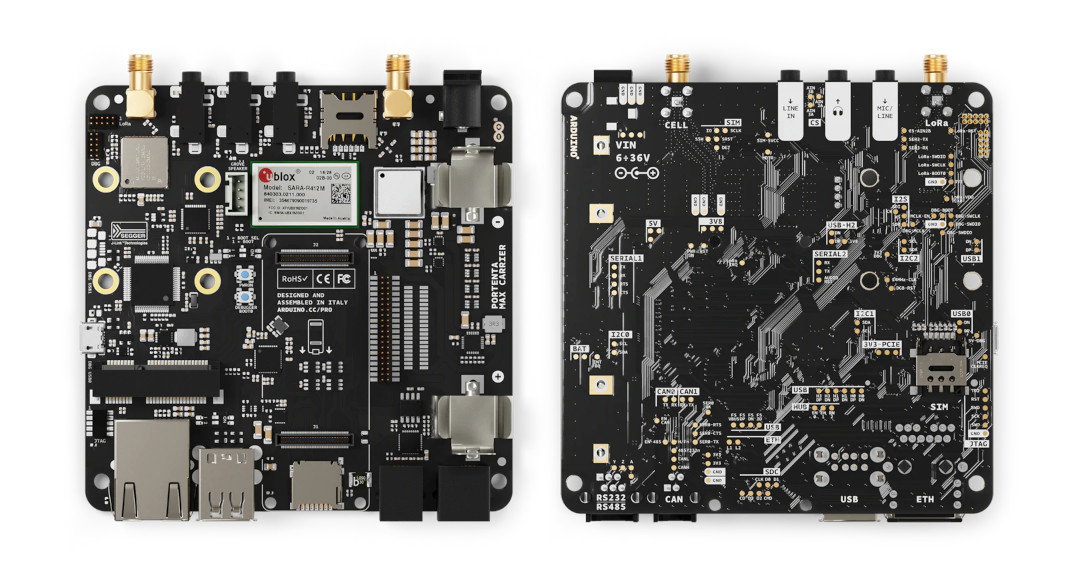

Product description: Arduino Portenta Max Carrier - ABX00043
The Arduino Pro Portenta Max Carrier board allows you to turn a Porten module into a single board computer or a structure that enables the use of artificial intelligence in high-performance industrial equipment, creating automation and robotics projects. Thanks to dedicated connectors, it can be combined with Portenta X8 or H7 , making it easy to prototyping and implementing industrial projects. Portenta Max Carrier extends the Portenta board with Fieldbus , LoRa® , Cat-M1 and NB-IoT communications. Among the many available connectors you can find: Ethernet, USB type A, audio jack, microSD , mini-PCIe, FD-CAN and RS232 / 422 / 485. Max Carrier is powered with voltage from 6 V to 36 V or a Li-Ion 18650 battery, through a dedicated connector with the charger system.
Portenta Max Carrier's key benefits
- Easy prototyping of industrial applications and minimized time to market
- Efficient expansion for Arduino Portenta with many peripherals (including CAN, RS232 / 422/485, USB, mPCIe)
- Multiple communication possibilities (Ethernet, LoRa®, CAT-M1, NB-IoT)
- MicroSD memory card slot for data collection
- Integrated audio jacks (line-in, line-out, mic-in)
- A standalone device with battery power
- JTAG debugger on board via microSD
Main features of the Arduino Portenta Max Carrier
- Portenta Powered . The Portenta Max Carrier extends the computing capabilities of the Portenta X8.
- Cellular communication . Extend your industrial solutions with 4G, Cat-M1, NB-IoT and LoRa® wireless connectivity. Send and receive SMS or communicate via internet protocols including TCP, UDP, HTTPS.
- Range . The coverage of NB-IoT and LTE-M covers many regions such as Europe, North and South America, and much of Asia. Map
- Connectivity . Access to a wide range of I / O, including Gigabit Ethernet, mini PCIe (PCI Express), 3.5mm audio input / output, and RS232 / 422/485 serial port.
- Debugging . Speed up solutions with the Black Magic debugger.
- Rechargeable lithium-ion battery . The Portenta Max Carrier includes a built-in Li-Ion / Li-Pol 18650 battery holder and energy management systems.

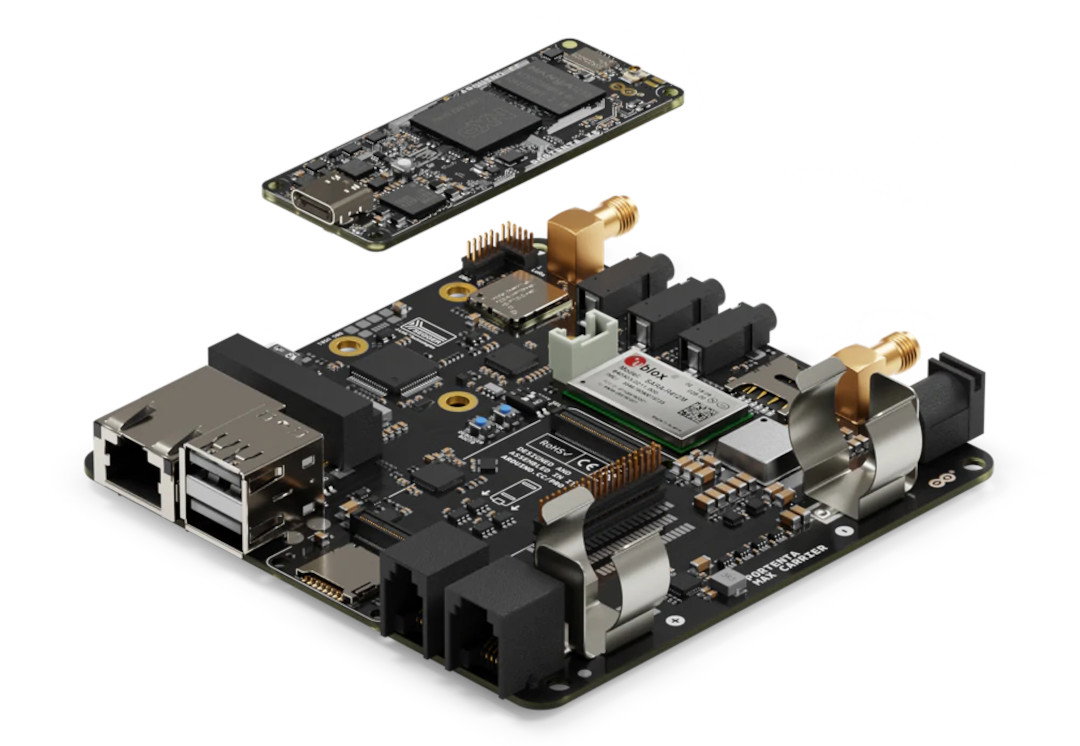

Extension with multiple ports and wireless connectivity to the Arduino Portenta H7 and X8.

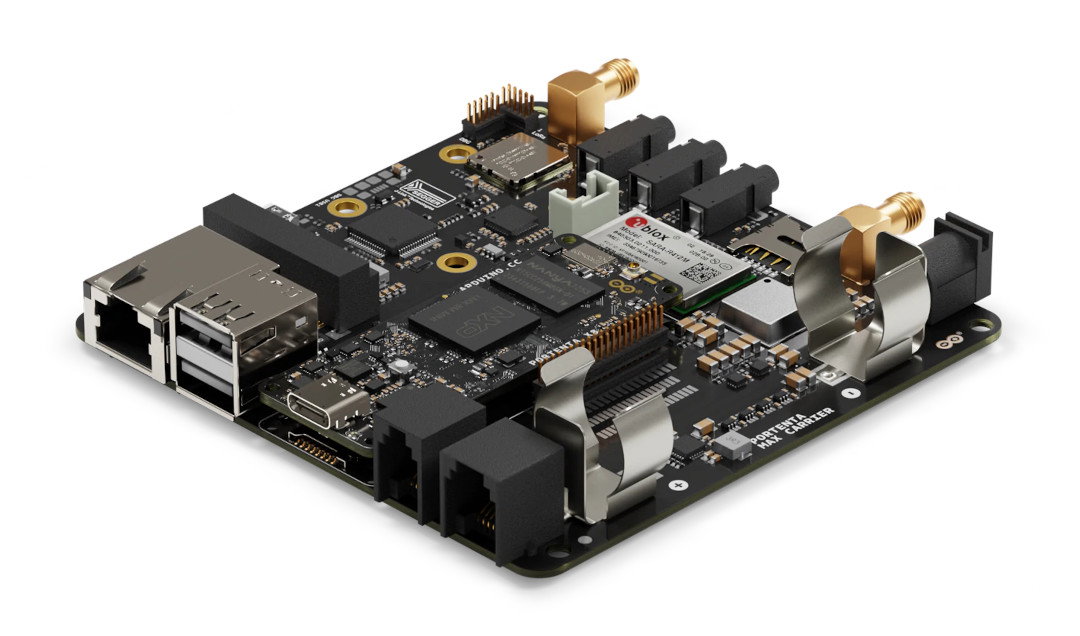

Portenta Max Carrier is easy to prototyping.
Prototyping projects on Portenta
The Arduino Portenta Max Carrier is designed to help developers with their prototypes by extending the standard Portenta board connectors (H7 and X8). It enables easy debugging via the JTAG connector and checking the CAN line via pins. At the same time, it is a suitable tool for testing Ethernet connectivity and extends connectivity capabilities (CAT-M1, NB-IoT and LoRa®).
Create your own Industrial 4.0 platform
Combining industrial strength and ease of use with the Arduino Pro Portenta Max Carrier, it is designed to deliver everything you need to implement edge computing in a smart factory or warehouse with simple plug-and-play features. Optimize your production process and material flow, remotely control machines and prevent breakdowns with preventive maintenance: Max Carrier makes the most of your innovation possibilities.

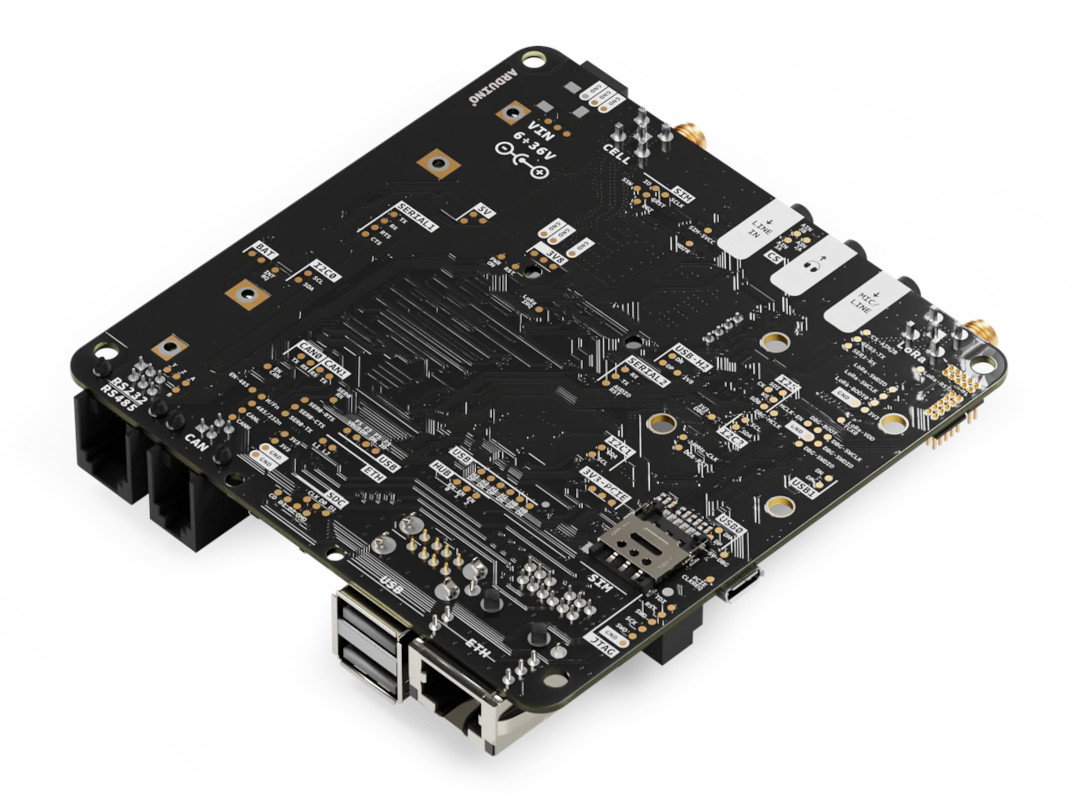

Portenta Max Carrier from Arduino Pro allows you to create industrial projects.| Specification of the Arduino Portenta Max Carrier | |
|---|---|
| Microphone | 3.5 mm jack |
| Line in | 3.5 mm jack |
| Headphones | 3.5 mm jack |
| Loudspeaker | Grove format |
| Wireless communication module | SARA-R412M-02B (4G / CAT-M1 / NB-IoT) |
| LoRa® module | Murata MMWX1ZZABZ-078 |
| Ethernet | 1x Gigabit Ethernet (RJ45) |
| SIM | 2x nano SIM card slot |
| CAN-BUS | RJ11 connector |
| Serial connector | RS232 / 422/485 RJ12 |
| USB | 2x USB 2.0 |
| PCIe | mini PCIe with removable posts |
| Input voltage | from 6V to 36V |
| Logical tension | 3.3V or 5V |
| Supported battery | Li-Ion / Li-Pol 3.7 V 18650 |
| Memory | microSD |
| Dimensions | 101.6 x 101.6 mm |
| Mass | 85 g |
