Product description: WisGate Edge Pro Europe - external LoRaWAN gateway - Ethernet, WiFi, LTE - Arduino TPX00095
The WisGate Edge Pro external LoRaWAN gateway is an Arduino Pro series product based on RakWireless . It provides secure and reliable wireless connectivity for a wide range of professional applications and can be used in medium to large areas in industrial environments and remote regions. The WisGate Edge Pro device allows communication between the LoRaWAN standard and Ethernet , WiFi or LTE . It is ideal for outdoor commercial IoT applications, e.g. parking sensors, fleet management, livestock tracking, etc. WisGate Erge Pro is based on the OpenWRT system and is fully customizable. WisGate Edge Pro complements the MKR and Portenta SOM series boards, the Arduino IoT Cloud and other LoRa components in the Arduino ecosystem, enabling the development and deployment of complete and industrialized IoT/IIoT and I4.0 applications.
Also check out the inner gate - WisGate Edge Lite 2 !

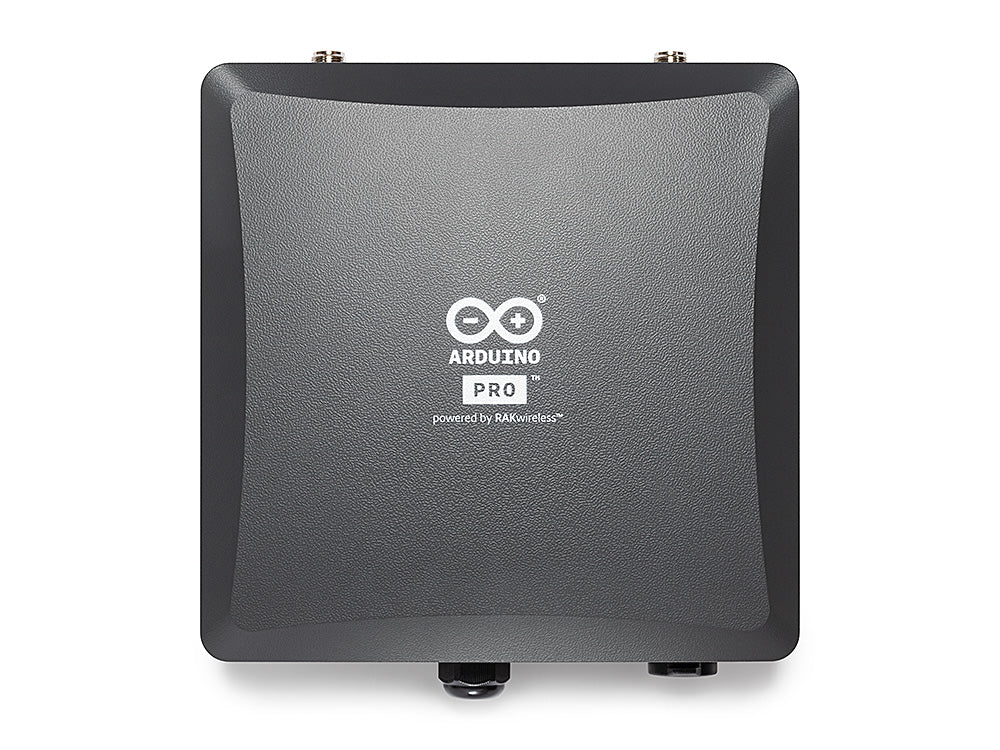

WisGate Edge Pro EU version.
LoRaWAN Gateway from Arduino Pro.WisGate Edge Pro main features
The WisGate Edge Pro gateway is a reliable industrial-grade device that meets all the requirements of a commercial IoT implementation. It supports 16 LoRa channels thanks to its dual LoRaWAN hub and multi blackhaul connectivity via Ethernet, WiFi and LTE cellular network. The design allows the installation of internal LTE, WiFi and GPS antennas. The gateway is supported by OpenWRT, allowing you to create custom applications.
- Ideal for commercial outdoor IoT deployment
- High transmission power and 2x fiberglass antennas with 5 dBi gain
- PoE powered

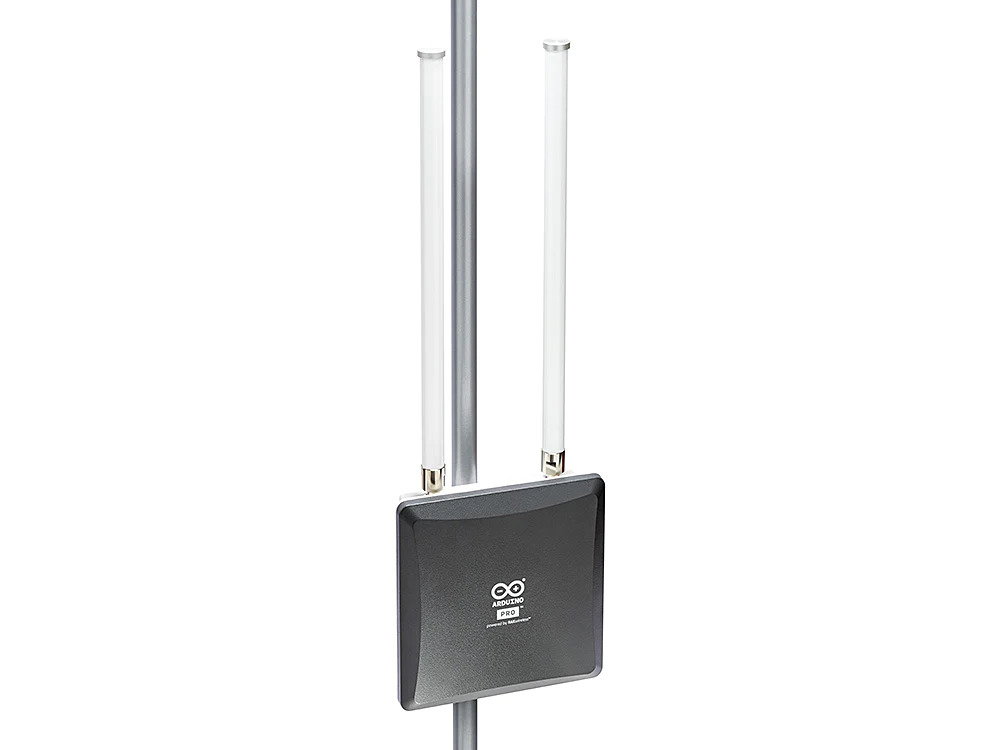

- Pole and DIN rail mount kit with included adapter
- Quick setup and diagnostics, backup and data logging thanks to the SD card slot
- WisGateOS, powered by RAKwireless, based on open source OpenWRT and fully customizable
- Ideal for deploying private networks, directly connected to cloud platforms, compatible with public networks
- Comprehensive RAKwireless technical documentation
The most important functions of the device
- Dual LoRa hubs with 16 channels and dual 5 dBi fiberglass external antennas. WiFi, LTE and GPS with internal antennas. Ethernet with PoE support
- WiFi configurable as a traditional access point.
- LTE cellular connectivity via nanoSIM.
- Built-in MQTT client with bridging capabilities to connect to most cloud platforms.
- Quick and easy installation right out of the box with OpenWRT and OpenVPN. It also allows advanced configurations.

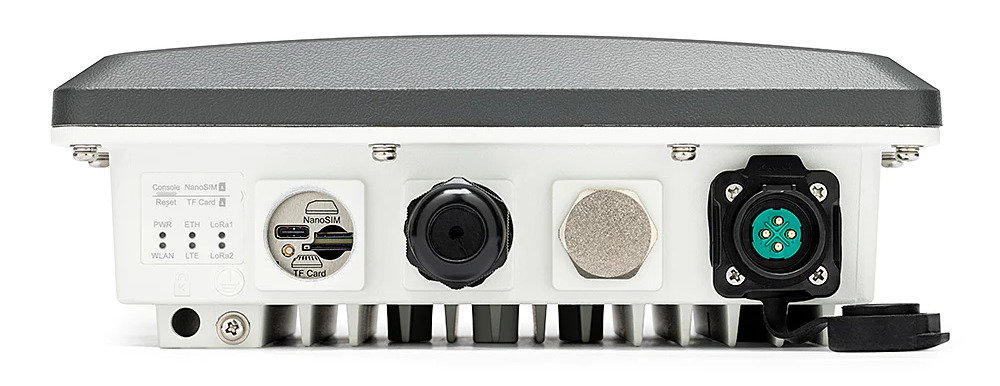

WisGate Edge Pro gateway pins.

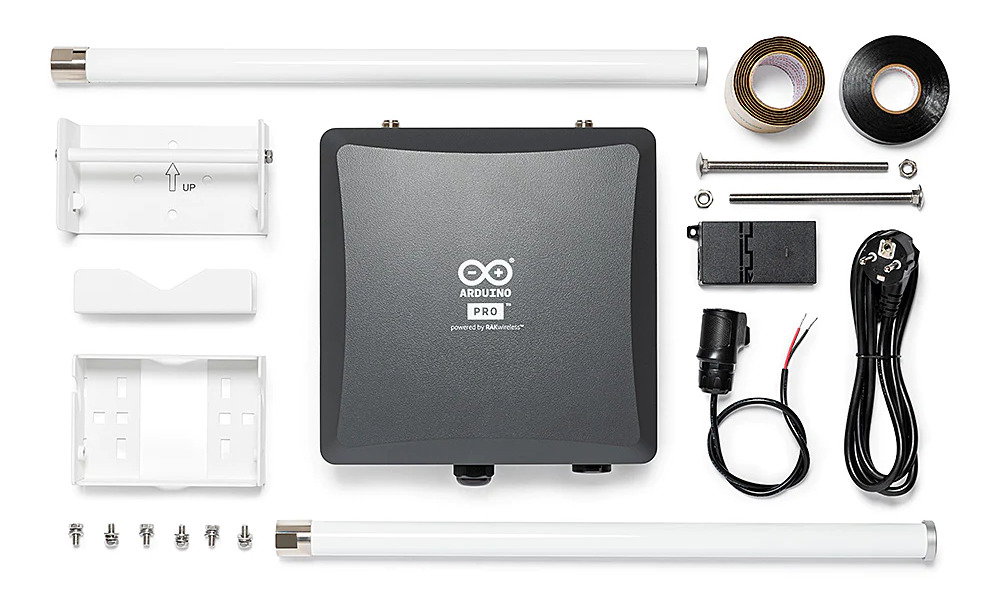

WisGate Edge Pro Kit Contents.Wisgate Edge Pro Specifications
- Processing: MT7628, 128MB DDR2 RAM
- WiFi:
- frequency: 2.4 GHz (802.11 b/g/n)
- antennas: MIMO 2x2
- RX sensitivity: -95 dBm (min.)
- TX power: 20dBm (max.)
- operating channels: 2.4 GHz 1-13
- LoRa:
- controller: mini PCIe SX1302 card
- channels: 16
- RX sensitivity: -139 dBm (min.)
- TX power: 27dBm (max.)
- additional: listen before connecting
- Antenna:
- LTE: internal
- WiFi: internal
- LoRa: 2x external 5 dB fiberglass antennas with N-type connectors
- Ethernet: RJ45 (10/100Mbps)
- Power:
- input: 12V or solar panel
- PoE (IEEE 802.3af): 36V to 57VDC
- Communication: USB Type-C
- Frequency: EU868 TXP00095
- Degree of protection: IP67
- Housing material: aluminum and plastic
- Mounting: pole or wall
- Connection plug: NEMA-6
- Operating temperature: -30°C to 55°C
- Dimensions: 240x240x80mm
