Product description: Arduino Nicla Vision - ABX00051
The small size Arduino Nicla Vision board combines a lot of peripherals. The module is based on a dual-core STM32H747AII6 ARM Cortex M7 / M4 chip with a color camera with a resolution of 2 Mpx with TinyML support. The board also has an intelligent 6-axis motion sensor , an integrated microphone and a distance sensor . The board is fully compatible with the entire Arduino Portenta series and MKR products. It fully integrates with OpenMV, supports MicroPython, and has WiFi and Bluetooth Low Energry wireless communication. Arduino Nicla Vision is supported in Arduino IoT Cloud, which gives you the ability to remotely view data, control and share projects from anywhere in the world.
Arduino Nicla Vision - a module with a 2 Mpx camera.The main functions of the Arduino Nicla Vision
- Compact board dimensions 22.86 x 22.86 mm
- A powerful processor to support artificial intelligence on edge devices
- Equipped with a 2 Mpx color camera with TinyML support, intelligent 6-axis motion sensor, microphone and distance sensor
- Wireless WiFi and Bluetooth Low Energy connectivity
- Supports MicroPython
- Possibility to work as a stand-alone device with battery power
Automate everything you can with Nicla Vison
Check that each product has been labeled before it leaves the production line, unlock the door only by authorized personnel, but only when wearing PPE protective clothing. Use AI to teach Nicla Vision to regularly check analog meters from the cloud (Arduino Cloud), monitor crop moisture and turn on irrigation when needed. Some things you have to do only after observing the environment, let Nicla Vision observe, decide and act for you.
Nicla Vision is equipped with a number of sensors.

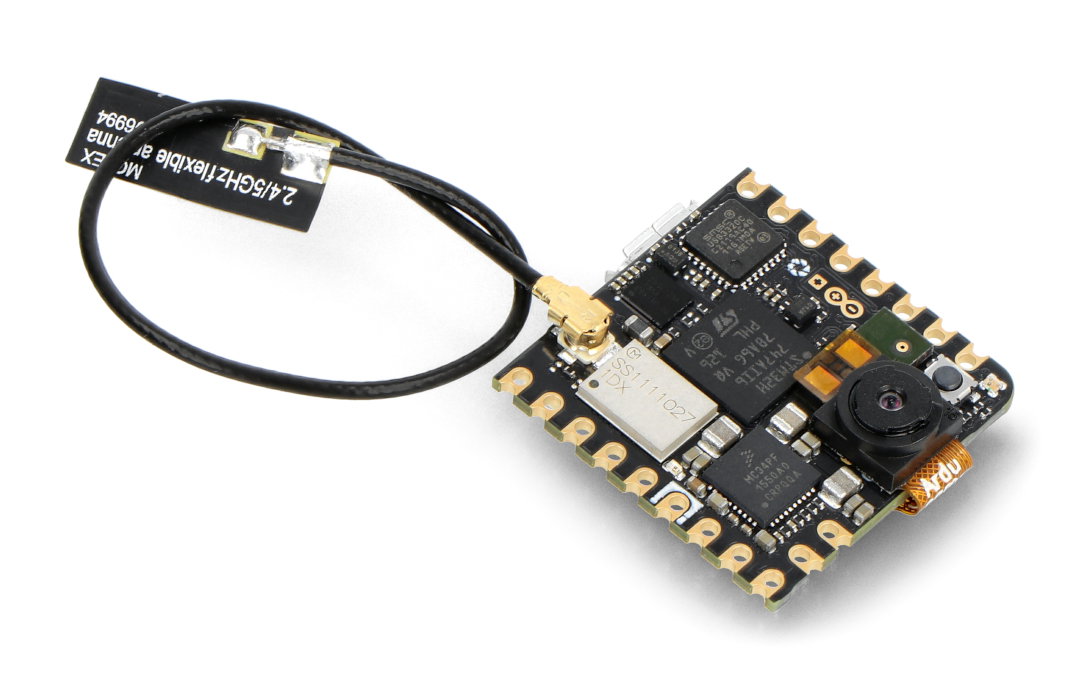

Included with the plate is an antenna.Camera in Arduino Nicla Vision

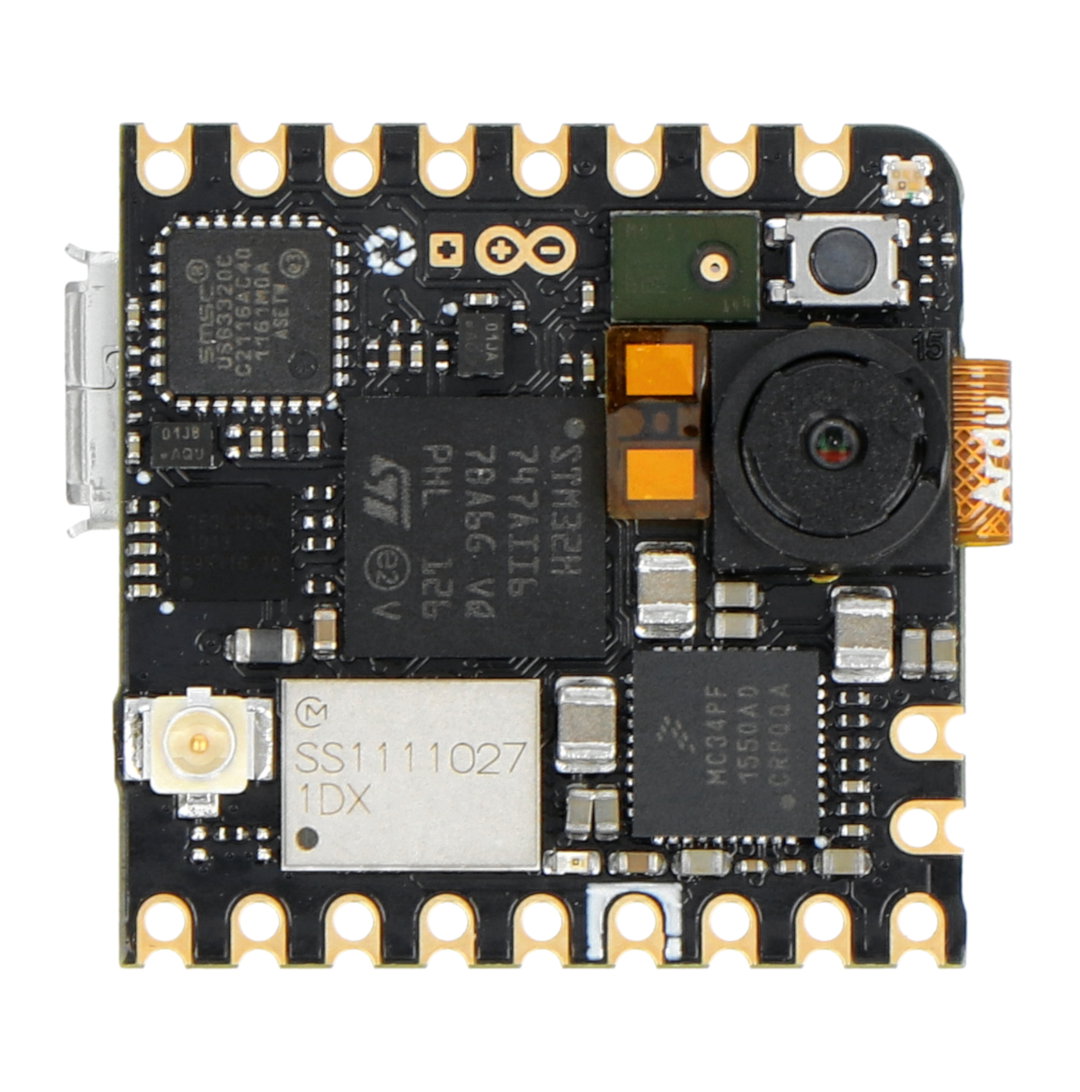

Thanks to the camera built into the Arduino Nicla Vision, it is possible to interact with the kiosk with simple gestures. Nicla Vision enables computers and smart devices to recognize you, understand your movements and make your life easier, safer, more effective and better. Let the Arduino Nicla Vision be your eyes: detecting animals on the other side of the farm, constantly checking the vibration or operation of your industrial machines.
| Arduino Nicla Vision specification | |
|---|---|
| Microcontroller | STM32H747AII6 Dual Arm® Cortex® M7 / M4 IC:
|
| Sensors |
|
| I / O |
|
| Power |
|
| Memory | 2 MB Flash / 1 MB RAM 16MB QSPI Flash as mass storage |
| Security | NXP SE050C2 cryptographic chip |
| Communication | WiFi / Bluetooth® Low Energy 4.2 (Murata 1DX - LBEE5KL1DX-883) |
| Interface | microUSB with debugging function |
| Working temperature | -20 ° C to 70 ° C |
| Dimensions | 22.86 x 22.86 mm |
