SparkFun ESLOV to Qwiic Bridge - I2C - SparkFun BOB-23589

Index: SPF-24570 EAN: 5904422385545

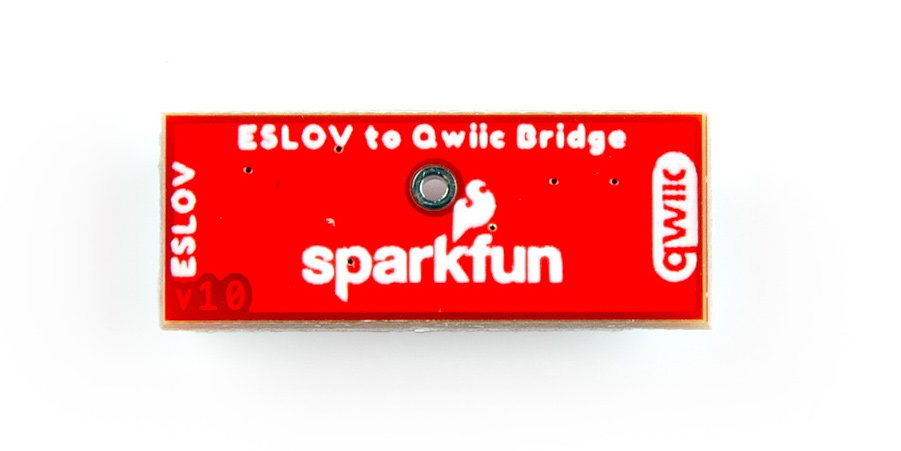

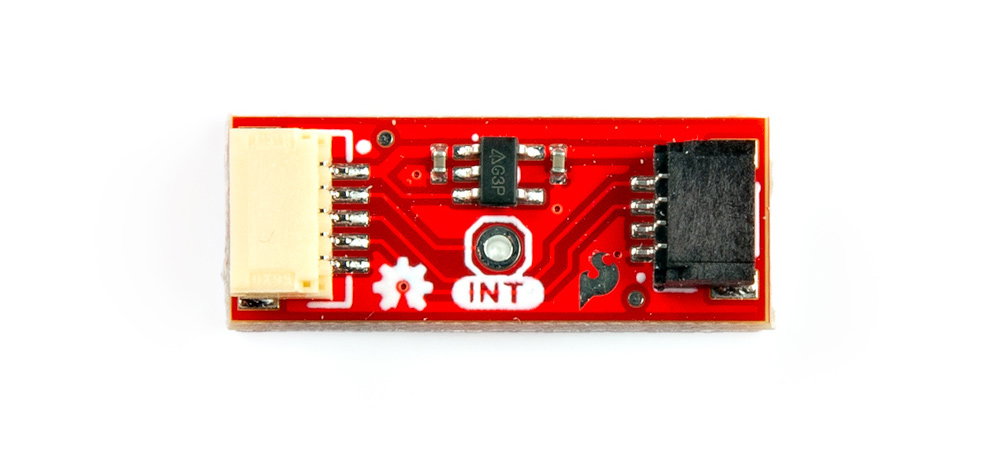

Another extension from SparkFun, this time in the form of an adapter that allows you to quickly connect Qwiic modules with Arduino boards. The board has one Qwiic connector and one ESLOV connector , enabling I2C communication without the need to solder additional pins. Additionally, SparkFun ESLOV to Qwiic Bridge is also equipped with a voltage stabilizer that reduces the voltage from 5 V to 3.3 V, thus ensuring the safety of connected peripheral devices.
SparkFun ESLOV to Qwiic Bridge - I2C - SparkFun BOB-23589
€2.90
€2.36 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: SparkFun
Compatibility: Arduino

Product description: SparkFun ESLOV to Qwiic Bridge - ESLOV to Qwiic adapter - I2C - SparkFun BOB-23589

Another extension from SparkFun , this time in the form of an adapter that allows you to quickly connect Qwiic modules with Arduino boards. The board has one Qwiic connector and one ESLOV connector , enabling I2C communication without the need to solder additional pins. Additionally, SparkFun ESLOV to Qwiic Bridge is also equipped with a voltage stabilizer that reduces the voltage from 5 V to 3.3 V, thus ensuring the safety of connected peripheral devices.

SparkFun ESLOV to Qwiic Bridge - ESLOV to Qwiic adapter - I2C - SparkFun BOB-23589.

The adapter allows you to quickly connect Qwiic modules with Arduino boards.

SparkFun ESLOV to Qwiic Bridge Technical Specifications

  • Type: adapter
  • Intended use: for Arduino boards
  • Communication interface: I2C
  • Voltage stabilizer: AP2112K 3.3V / 600mA
  • Pinouts: 1x Qwiic, 1x ESLOV
  • Board dimensions: 22.9 x 8.9 mm

Our offer also includes a dedicated connection cable - check it out!

Package width 4 cm
Package height 6 cm
Package depth 0.5 cm
Package weight 0.002 kg
