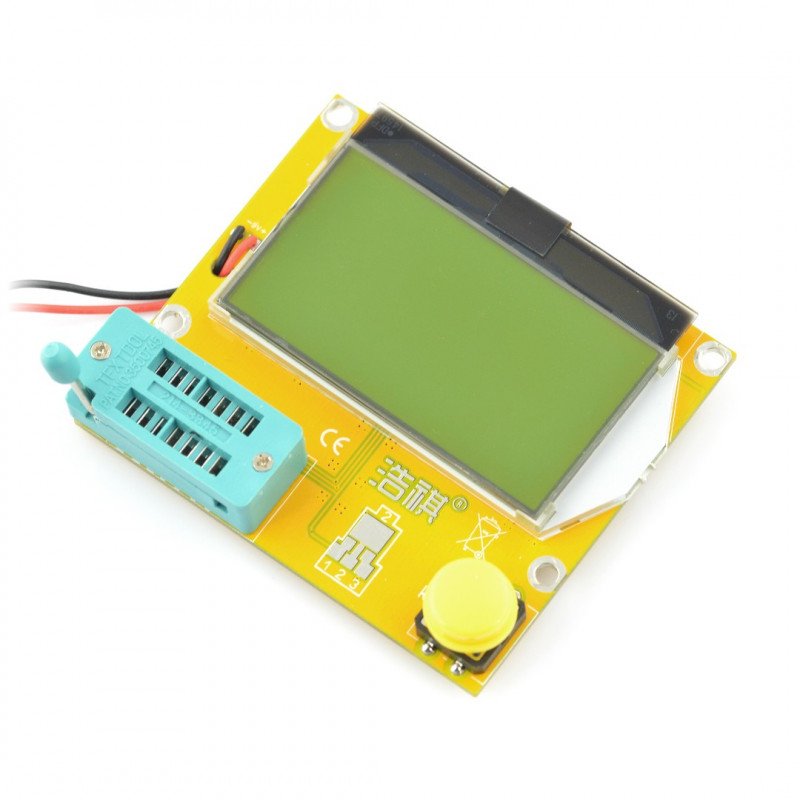

Test kit, THT electronic components tester - BTE-056

Index: MOD-06282 EAN: 5904422350895

Kit for testing and recognition of electronic components such as PNP, NPN bipolar transistors, MOSFET transistors with P and N channels and diodes. Built-in screen allows to display characteristic values for the element. The device allows you to test THT circuits.

Test kit, THT electronic components tester - BTE-056
€23.90
€19.43 tax excl.
Available
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

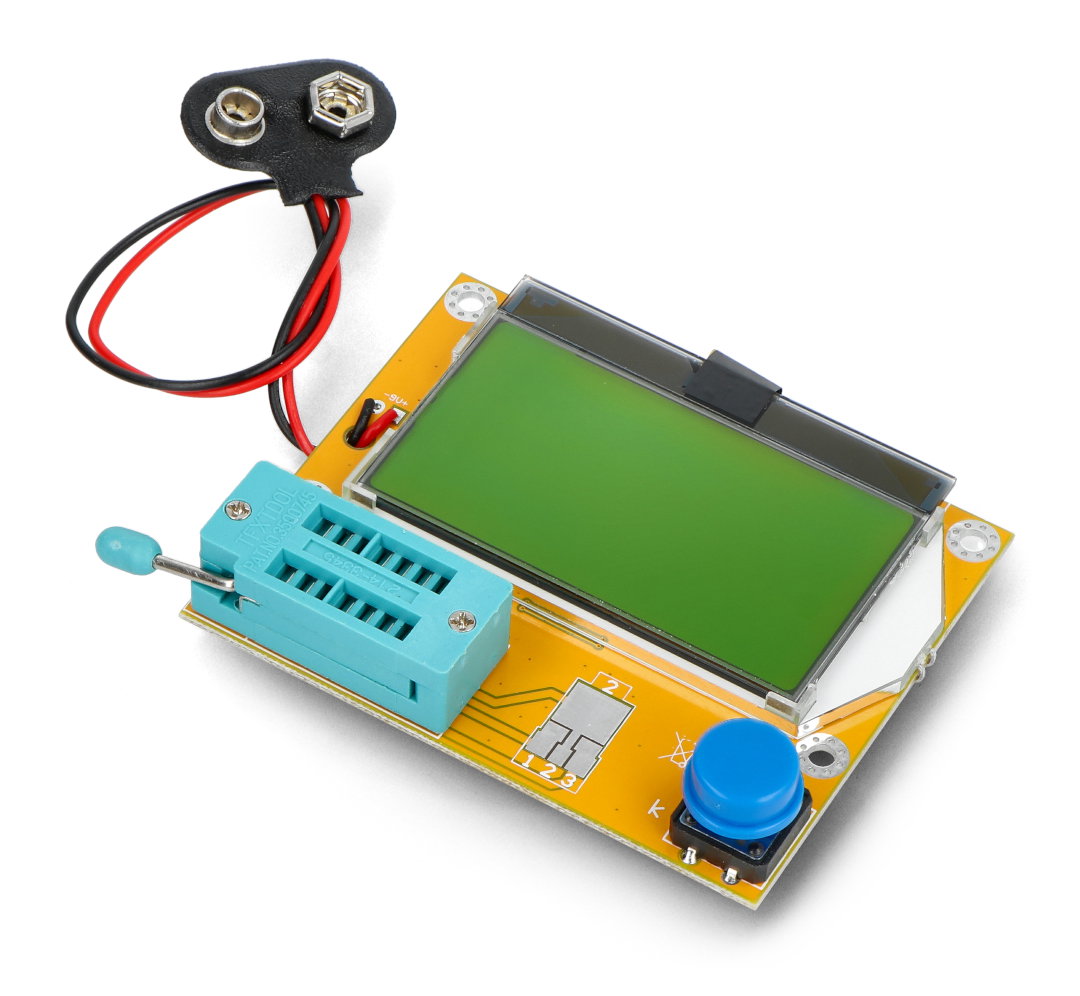

Product description: Test kit, THT electronic components tester - BTE-056

A set for testing and recognition of electronic components such as resistors, capacitors,inductive components,PNP, NPN bipolartransistors,MOSFETtransistorswith P and N channels or diodes.The built-in screen allows to display characteristic values for a given element. The device allows you to test THT systems.

The tester is assembled and ready to use immediately after unpacking. No soldering is required.

Zestaw do testowania, tester elementów elektronicznych THT - BTE-056

The kit enables testing of various electronic components, e.g. resistors.

The meter is a simple but practical tool useful in the workshop of any electronics. It is very easy to use. When measuring capacitors, make sure that the tested element is discharged. The construction of the meter is simplified, therefore the measurement tolerance does not always coincide with expensive, professional tools.

Specification of the electronic components tester

  • Electronic components test kit
  • Graphic LCD screen 128 x 64 px for displaying values of tested elements
  • ZIF-14 base for testing THT elements
  • Automatic detection of the current gain factor (B)
  • Power supply:9 V 6F22 battery(not supplied)
  • Output voltage: 5.5 V to 12 V DC
  • Measurement speed: approx. 2 to 10 s
  • For large capacitors, the test can take up to 1 minute
  • One-button testing
  • Automatic shutdown
  • PCB dimensions: 71 x 63 mm

Measuring ranges

  • Capacitor capacity: from 25 pF to 100 mF (resolution 1 pF)
  • Measurement of the ESR for capacities above 2 uF
  • Inductance: 0.01 mH to 20 H
  • Resistance: 0.10 Ω to 50 MΩ
  • PNP / NPN transistor tester, concrete measurement h21e
  • Measurement of MOSFET transistors with P and N channels
  • Thyristorian/Thyristorian measurement
  • Uf diodes max 4.5 V

Package width 10 cm
Package height 2.8 cm
Package depth 9 cm
Package weight 0.05 kg
