Product description: SIM7600G-H 4G HAT (B) - GNSS / LTE 4G / 3G / 2G overlay for Raspberry Pi - Waveshare 19485
SIM7600G-H 4G HAT (B) is a module enabling communication in LTE Cat-4 4G technology, as well as providing support for 3G and 2G networks, which allows the global use of communication technologies in various applications, such as IoT, remote monitoring, telemetry systems , GPS navigation or others. Equipped with pogo pin connectors for Raspberry Pi Zero / Zero W and a microUSB connector for other Raspberry Pi models and PCs. Thanks to the built-in SIM7600G-H module, you can use functions such as calling, sending SMS, data transmission and GNSS positioning ( GPS , BeiDou, GLONASS, GALILEO, QZSS). The module is equipped with a SIM slot, audio decoder and LED indicators , making it easy to monitor the operational status. In addition, it supports various communication protocols and has a built-in USB HUB that allows you to expand USB ports.
There is a detailed user guide on the manufacturer's website that makes it much easier to start working with the module.
SIM7600G-H 4G HAT (B) - GNSS / LTE 4G / 3G / 2G overlay for Raspberry Pi - Waveshare 19485.

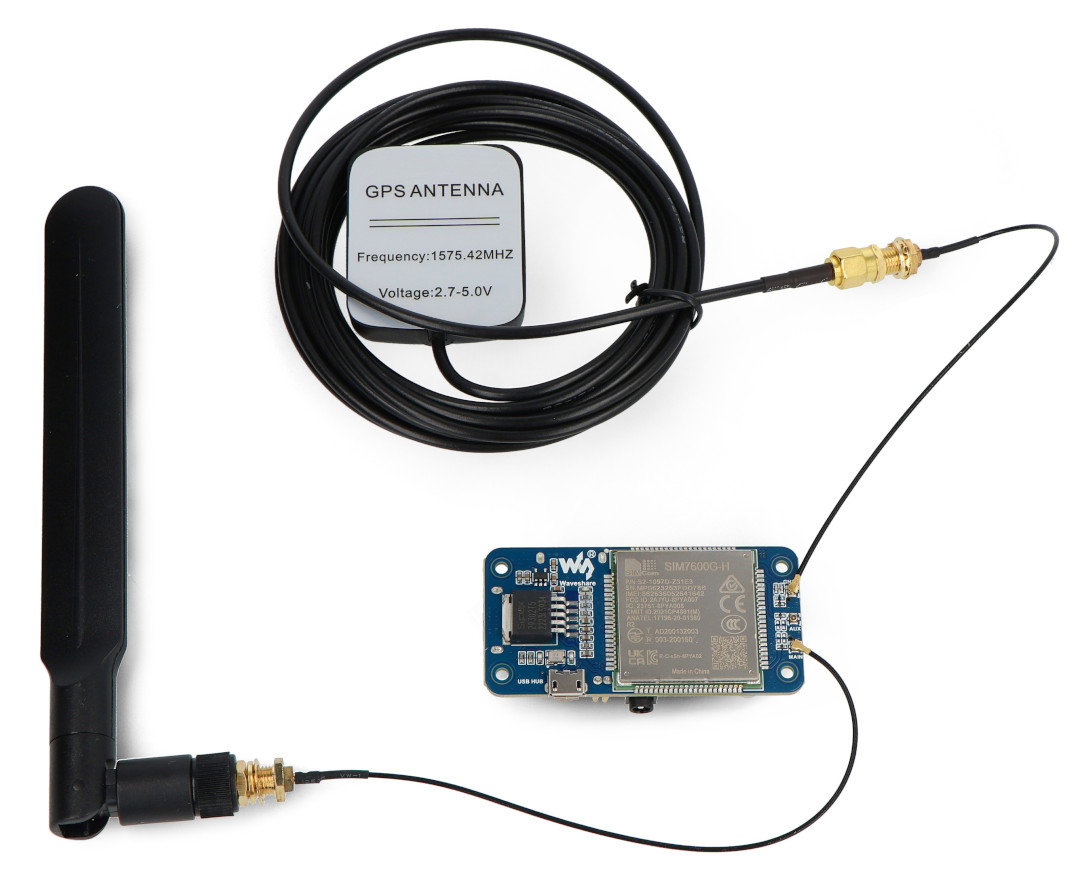

The module enables communication in LTE Cat-4 4G technology.
Special features of the communication module
- Dedicated pogo pin for Raspberry Pi Zero / Zero W.
- MicroUSB connector for other Raspberry Pi boards or computers.
- Equipped with SIM7600G-H chip ensuring compatibility with 2G/3G/4G networks around the world.
- The USB HUB connector allows you to connect other devices and expand USB ports.
- Supports dial-up connections, telephone calls, SMS, TCP, UDP, DTMF, HTTP, FTP.
- Supports positioning via GPS, BeiDou, Glonass and LBS base stations.
- The SIM card slot supports 1.8V/3V SIM cards.
- The built-in audio jack and audio decoder allow you to make phone calls.
- 2 LED indicators make it easy to monitor the working status.
- Control via AT commands.
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT.
Arrangement of elements on the board
- SIM7600G-H
- FE1.1S USB hub chip
- NAU8810 audio decoder
- MP1482 power supply system
- RT9193-33 voltage transmitter
- USB HUB input (D+/D- pogo pin: for Raspberry Pi Zero/Zero W, microUSB connector: for other Raspberry Pi boards or computer)
- Pogo pin power supply (5V: connects to the 5V pin of the Zero/Zero W device, current up to 2A, GND: connects to the GND pin of the Zero/Zero W device)
- Extended USB ports (USB1 - USB2: USB A connectors, USB3: solder pad)
- 1.8V/3V SIM card slot
- 3.5mm headphone/microphone jack
- Main antenna connector
- AUX auxiliary antenna connector
- GNSS antenna connector
- Power indicator
- Network status indicator

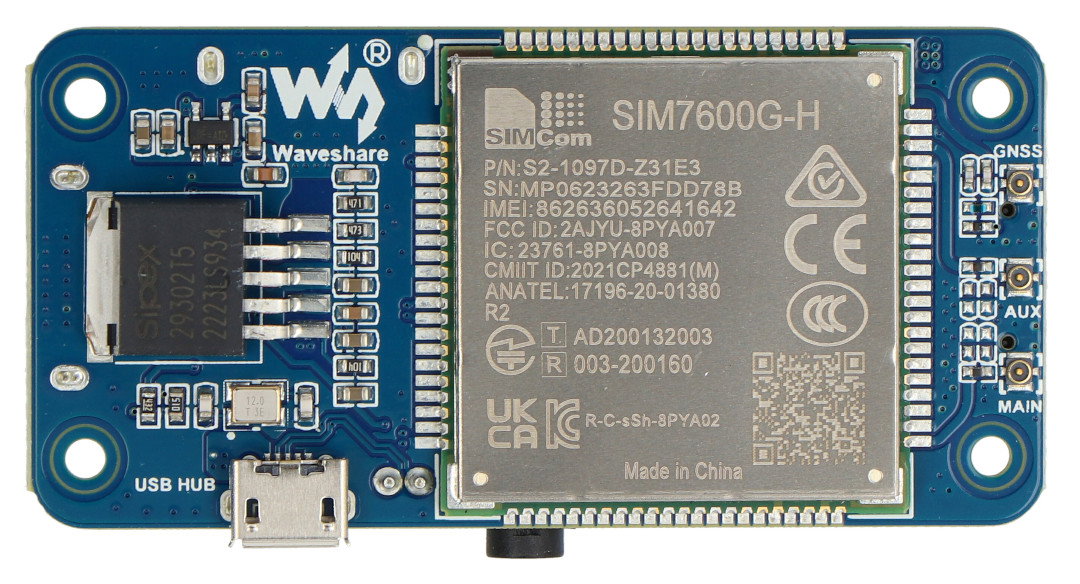

Arrangement of module elements.

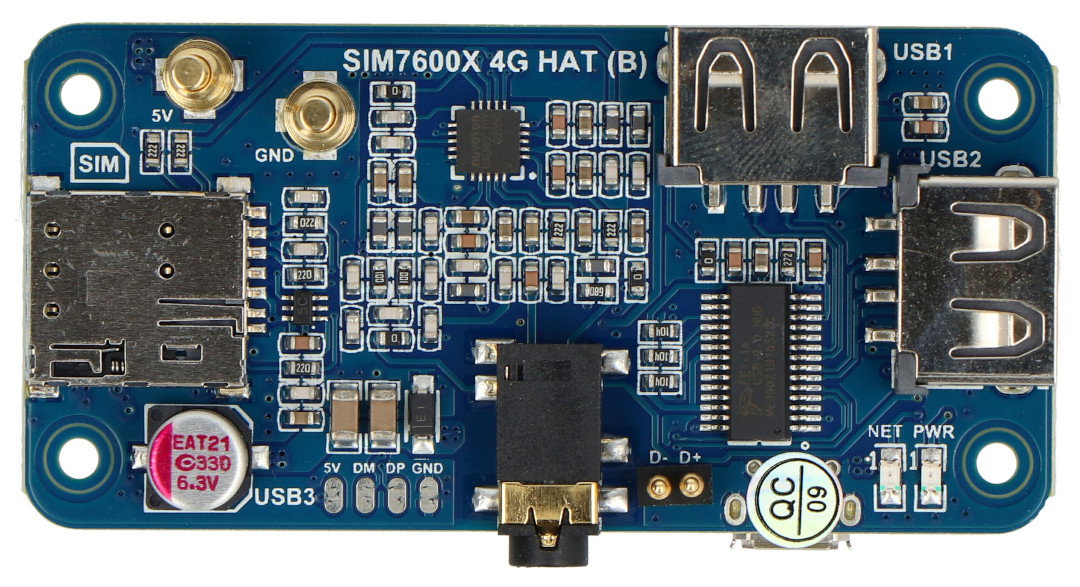

The module is equipped with a SIM card slot.
Application examples of SIM7600G-H 4G HAT (B)
- IoT projects: monitor and manage devices remotely thanks to 4G functionality.
- Positioning systems: use the module to track vehicles, people or parcels with GPS and GNSS functions.
- Communication applications: creating voice and SMS communication systems in projects based on Raspberry Pi.
- Home Automation: Integration with smart home systems for remote control and monitoring.
Technical specifications of the module
- Frequency band:
- LTE Cat-4: LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66, LTE-TDD: B34 / B38 / B39 /B40/B41
- 3G: UMTS / HSDPA / HSPA+: B1 / B2 / B4 / B5 / B6 / B8 / B19
- 2G: GSM / GPRS / EDGE: 850 / 900 / 1800 / 1900 MHz
- GNSS positioning:
- Satellite systems: GPS, BeiDou, GLONASS, GALILEO, QZSS
- Receiver type: 16 channels
- Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS)
- First location time (open air): < 35 s (cold start), < 1 s (warm start)
- SMS and audio:
- Supported SMS types: MT, MO, CB, Text, PDU
- Audio functions: echo reduction, noise reduction
- Supply voltage: 5V
- Operating temperature: from -30°C to 80°C
- Storage temperature: -45°C to 90°C
- Dimensions: 65 x 32 mm
- Weight: 0.162 kg

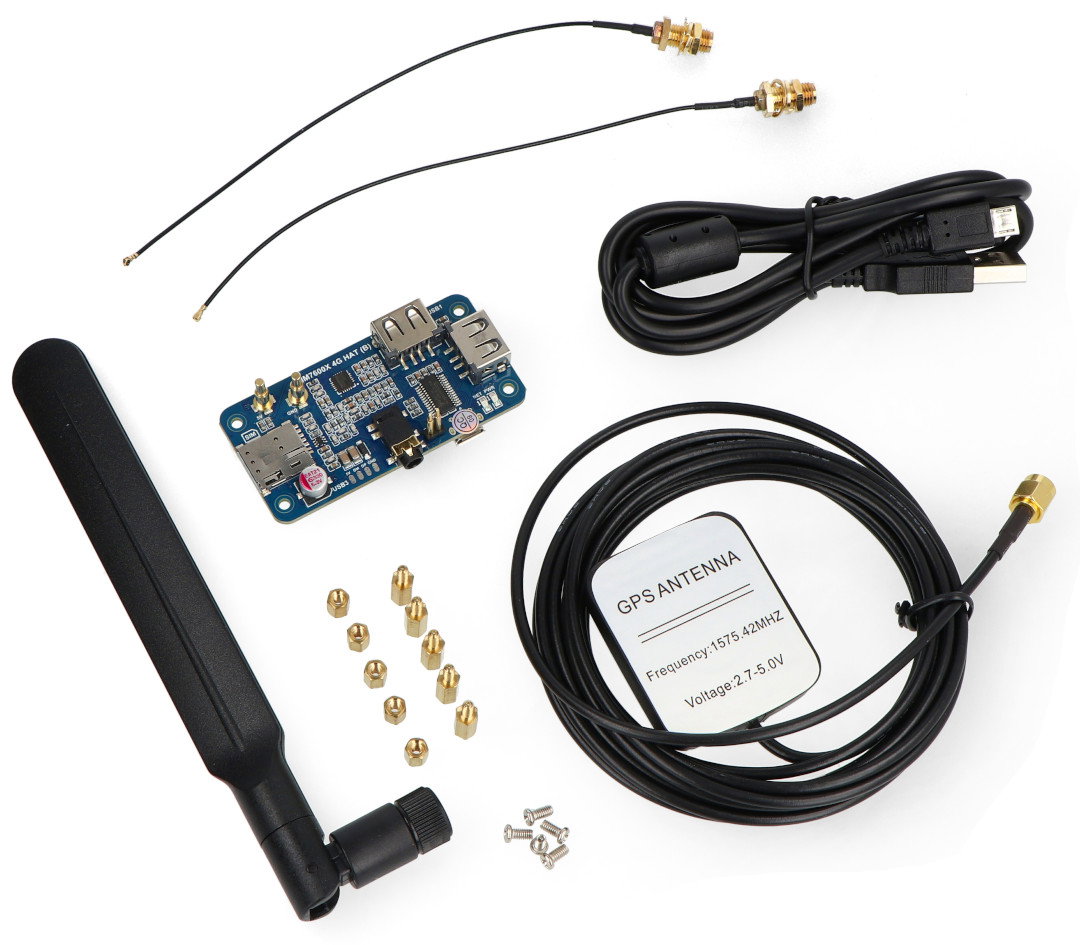

The set includes a GPS and LTE antenna.
Elements included in the set.
Set contents
- 1x SIM7600G-H 4G HAT Module (B)
- 1x LTE antenna
- 1x GPS antenna
- 1x USB A - microUSB B cable
- 1x Set of screws
